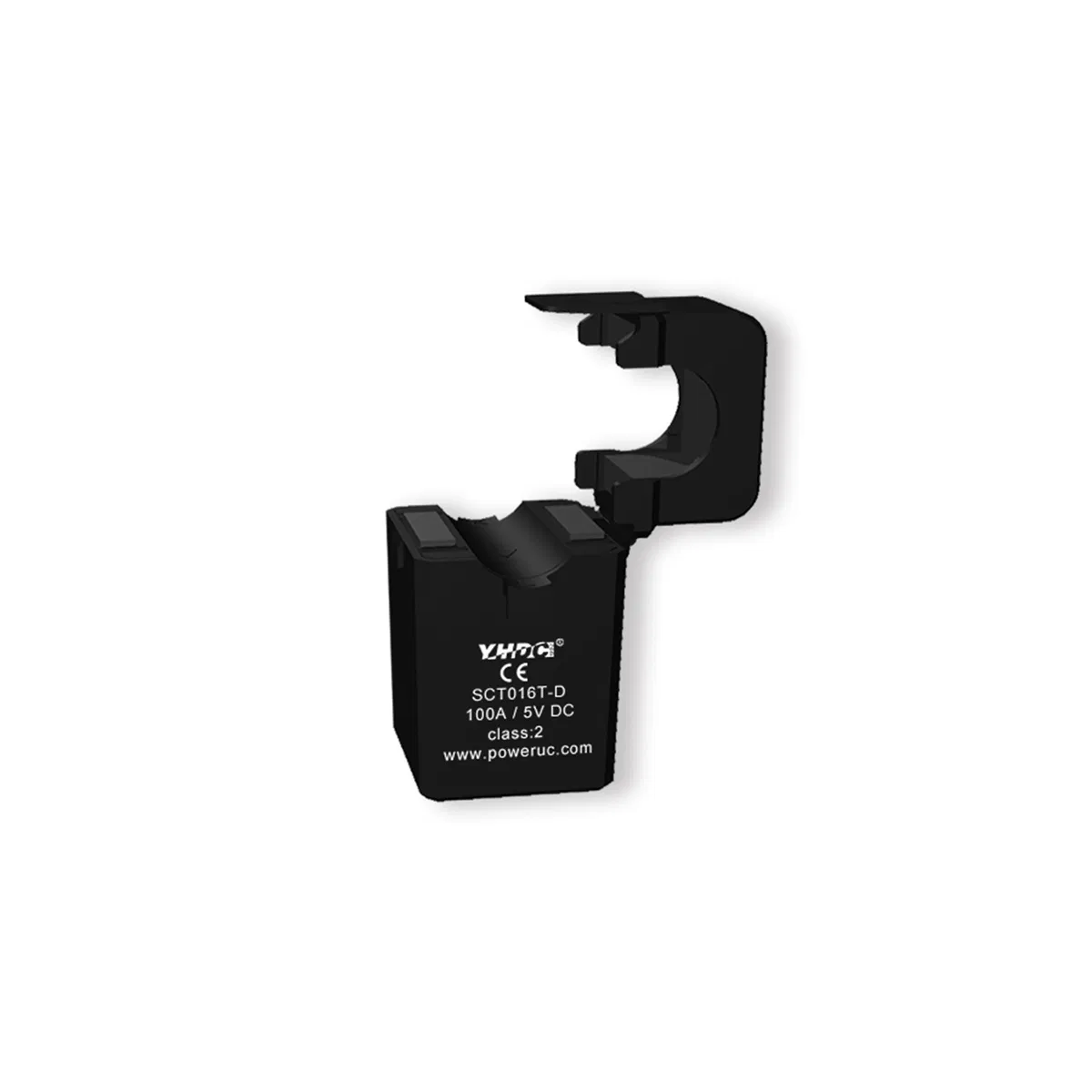

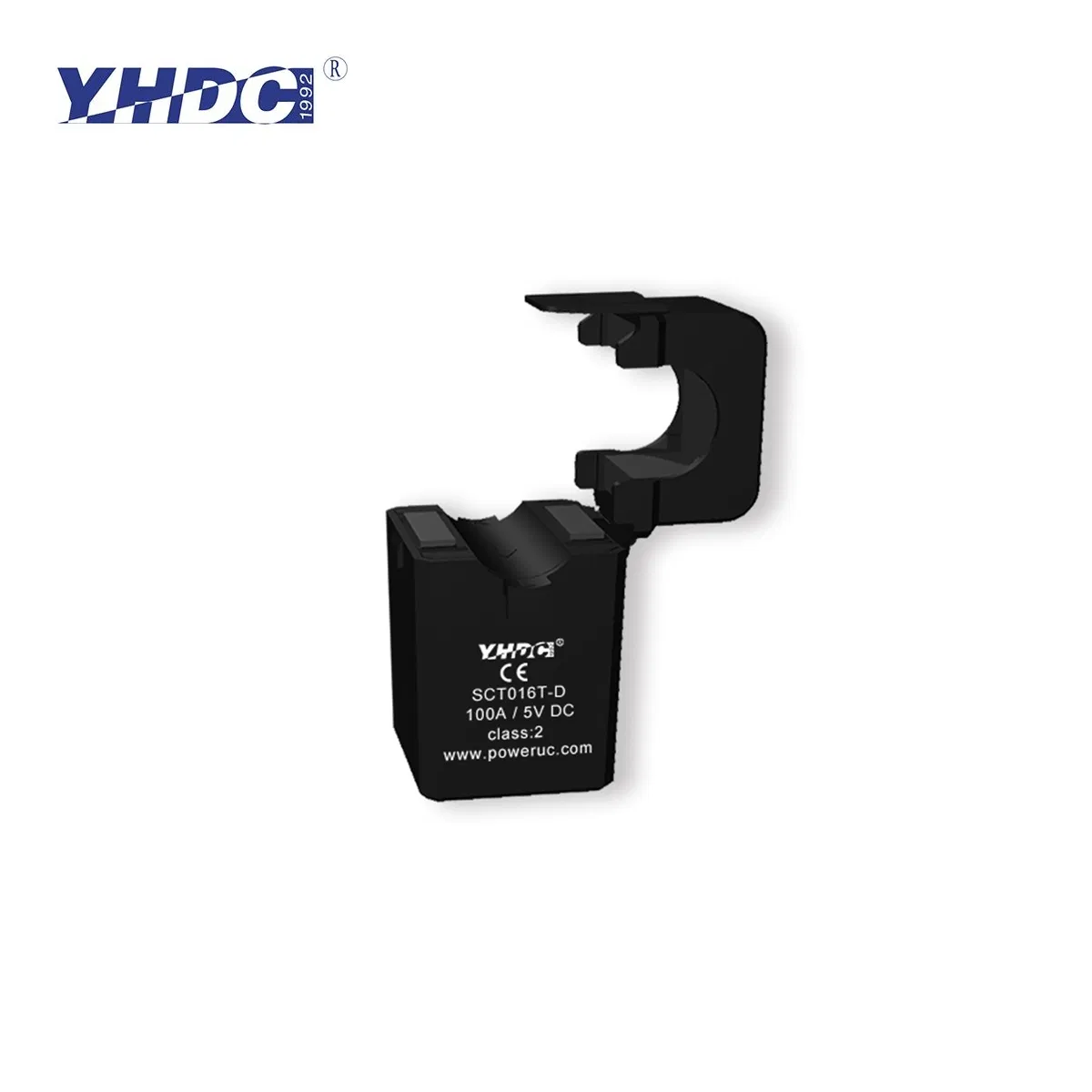

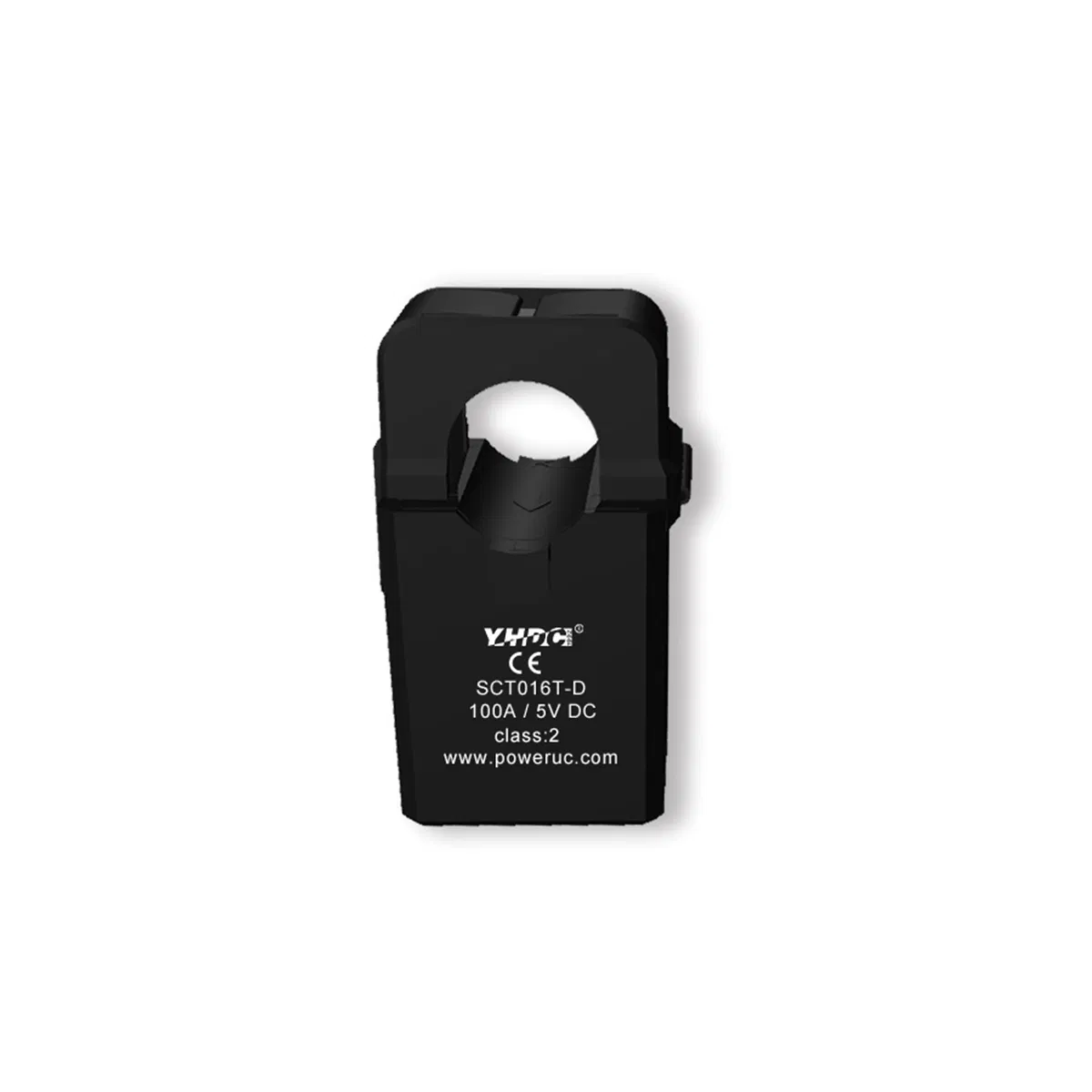

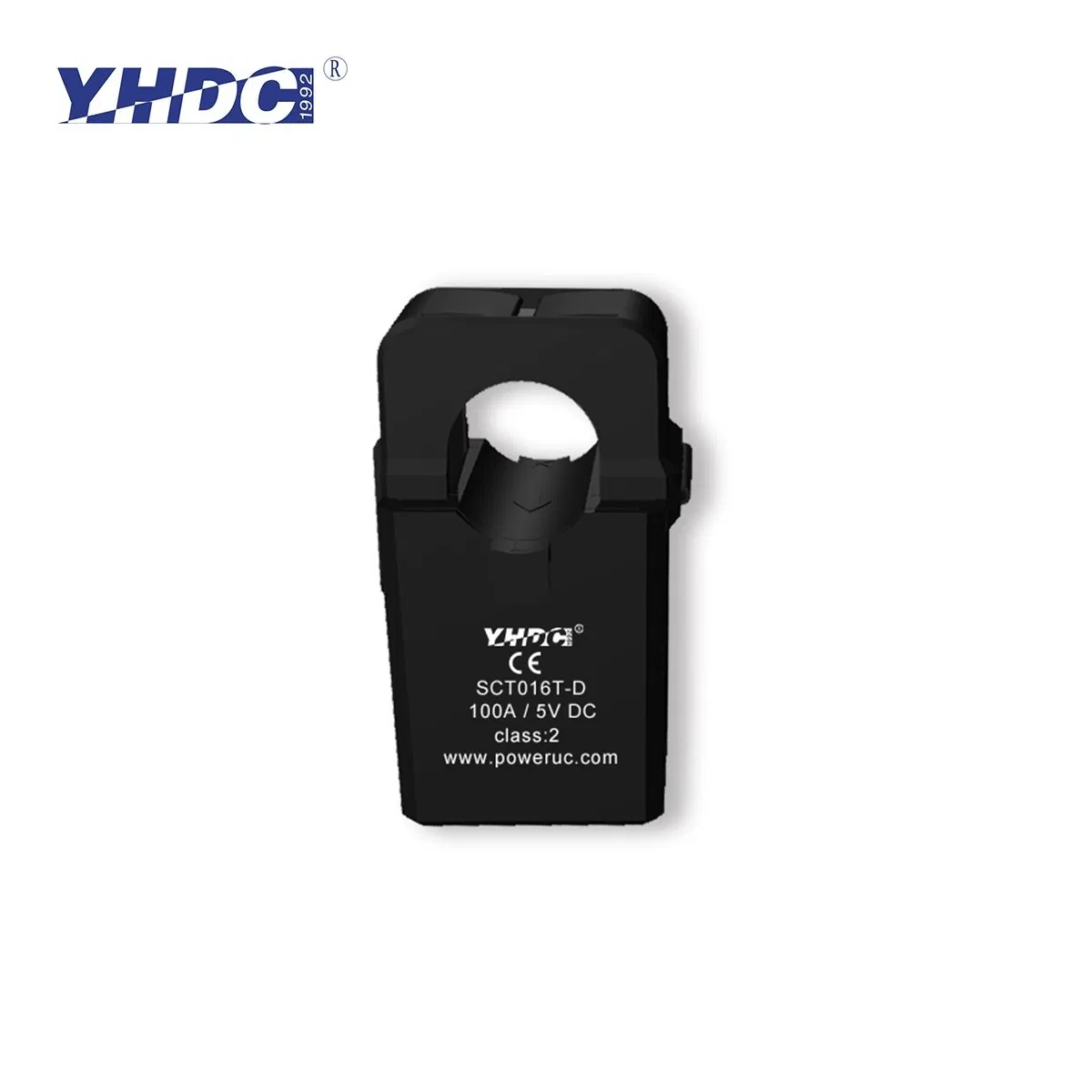

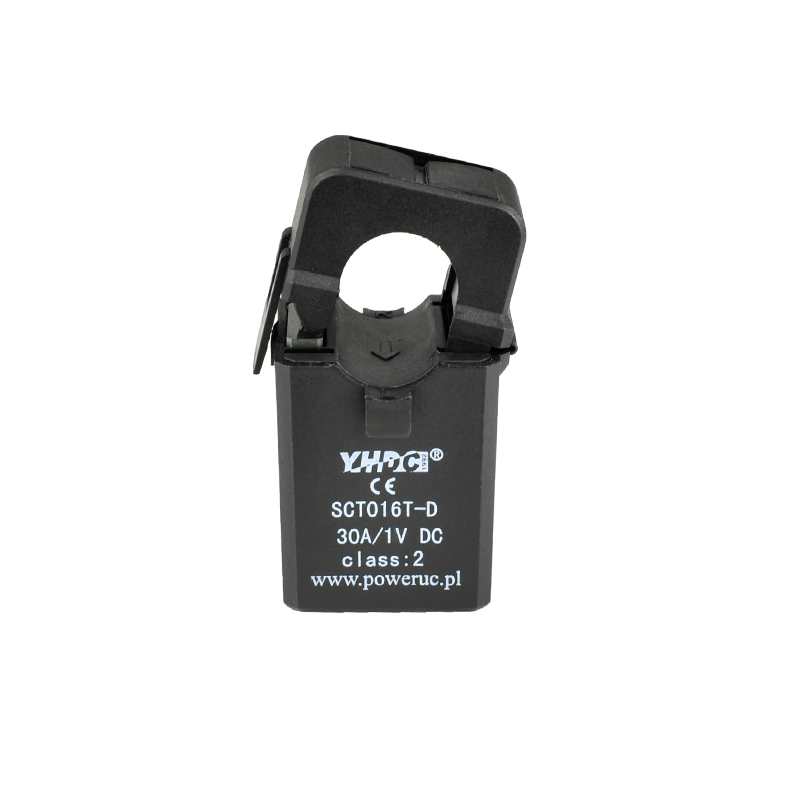

Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
1 / 5
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D
Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D

Yhdc 16mm Hole Split Core Current Transformer, Current Clamp Sct016t-D

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SCT016T-D
Phase
Single
Condition
Indoor
Usage
Protection, Measurement
Winding
Single Layer
Core Material
Ferrite
Opening Size
16mm
Input Current
30A/50A/60A/80A/100A
Output Signal
1V/3V/5V
Accuracy
1%
Frequency
50-1kHz
Certificates
CE, RoHS, REACH
Product Overview

YHDC 16mm hole Split Core Current Transformer, Current Clamp SCT016T-D

Split core current transformers are designed for installation on current-intensive power lines or equipment. They output measured current signals for monitoring, measurement, or protection purposes.

The benefit of a split core current transformer is its ease of positioning without disturbing or disconnecting the main cables being monitored. It provides galvanic separation between the primary AC circuit and the secondary DC output circuit.
Applications & Characteristics

Main Applications:

  • Remote control of current measurement for SCADA systems.
  • Load trend monitoring for critical motors and compressors.
  • Energy monitoring through power consumption submeters.

Key Characteristics:

  • Safety lock buckle for easy installation.
  • Built-in rectifier.
  • Screw terminal output.
  • Free hanging (In-Line) mounting.
Technical Specifications
Standard
GB20840-2014
Operating Temp
-25ºC to +60ºC
Storage Temp
-30ºC to +90ºC
Waterproof
IP00
Dielectric Strength
AC 3.5KV/1min 50Hz
Model SCT016T-D
Input 30A 50A 60A 80A 100A
Output 1V / 3V / 5V
Dimensions & Visuals

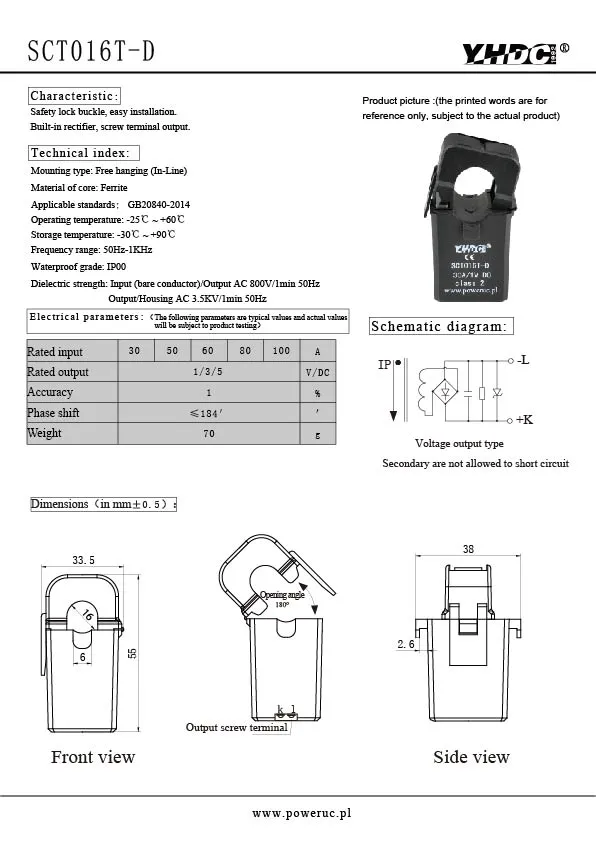

Dimensions in mm
SCT016T-D Detail 1
SCT016T-D Detail 2
SCT016T-D Detail 3
SCT016T-D Detail 4
SCT016T-D Detail 5
Frequently Asked Questions
Do you provide samples and customization?
Yes, we provide samples and the product can be customized based on your requirements.
What is the typical delivery lead time?
Our standard delivery time is 5-7 working days.
Are you a manufacturer or a trading company?
We are a factory and professional manufacturer of current transformers.
What is the accuracy level of the SCT016T-D?
The accuracy of this split core current transformer is rated at 1%.
What is the operating temperature range?
It is designed to operate reliably between -25ºC and +60ºC.
How can I place an order?
You can contact us via email with your order details or place an order through our online channels.
