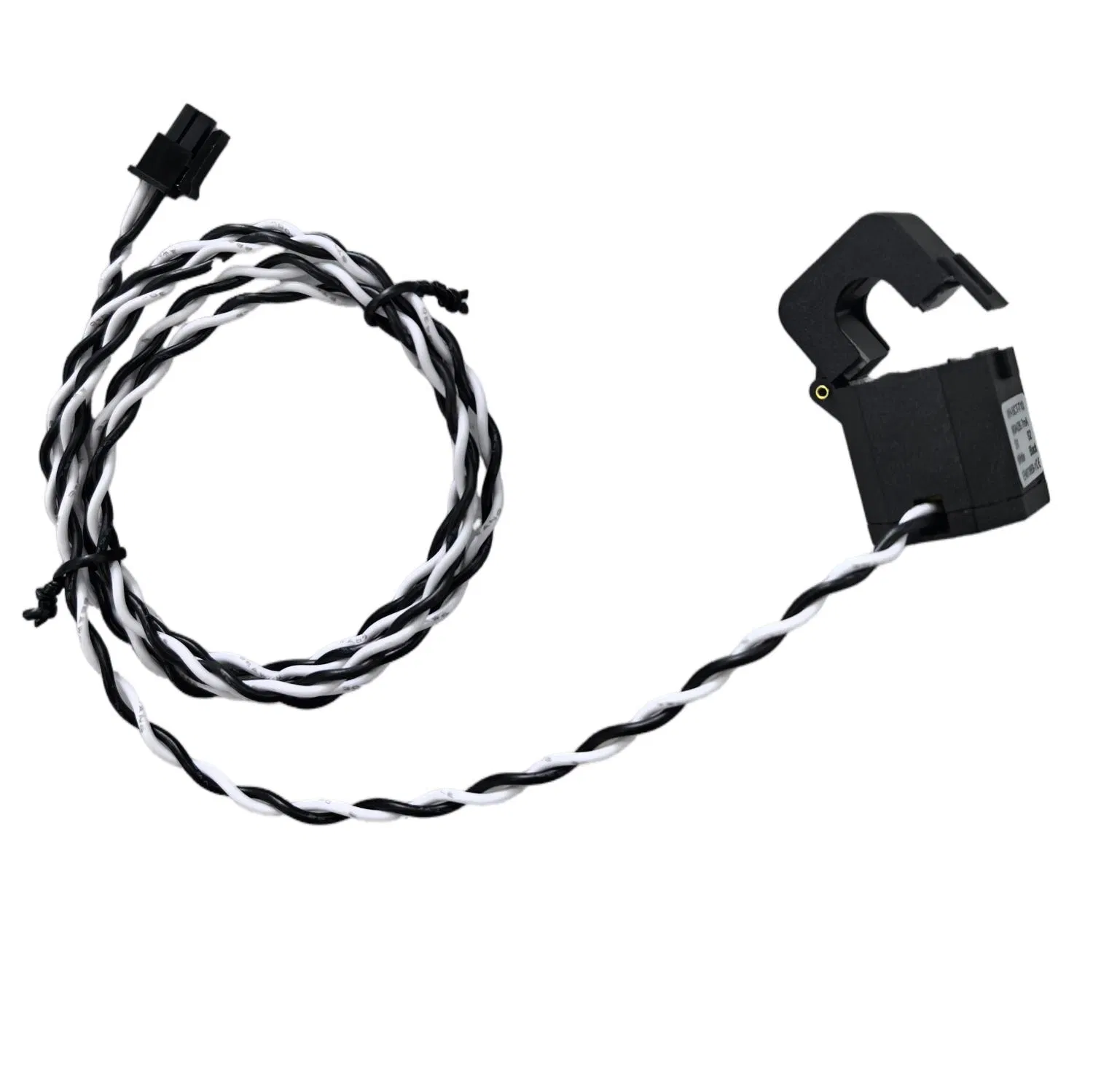

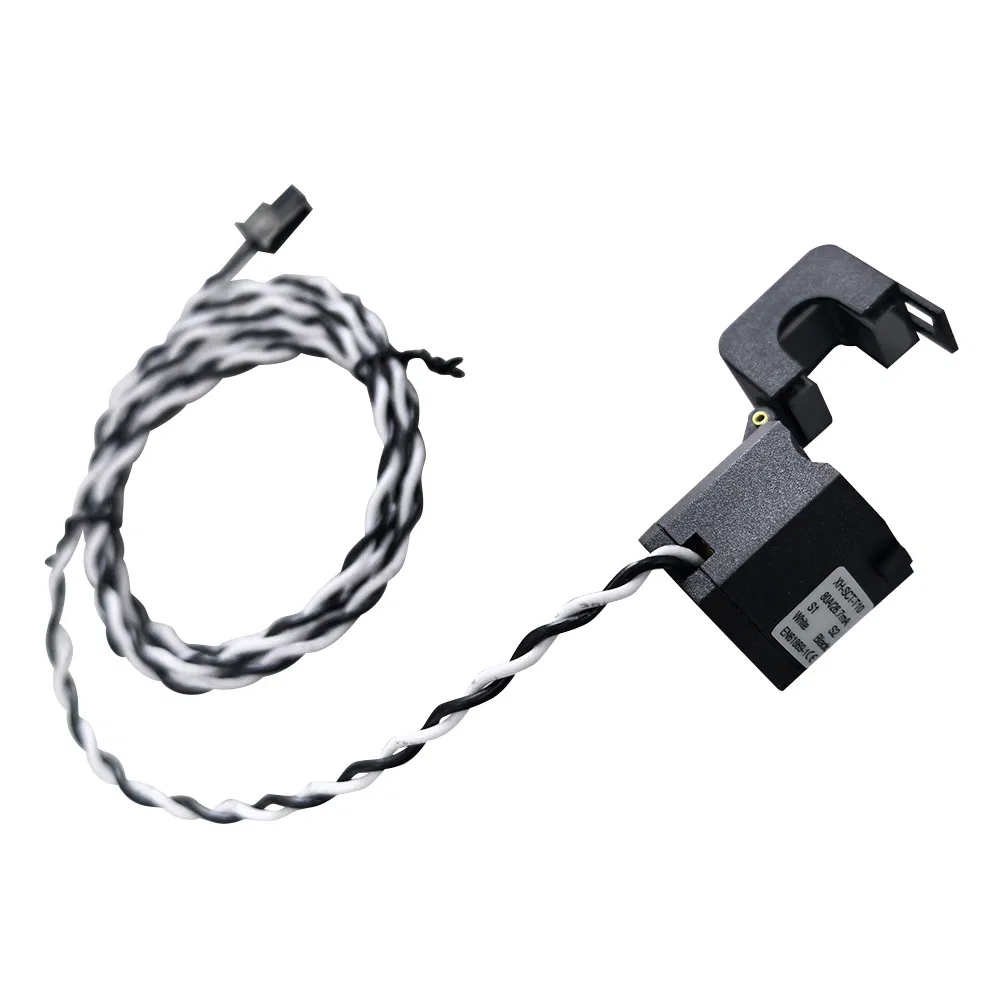

Xh-Sct-T10 (B) 70A 0.33V Sensor 50A/333mv Clamp UL Split Core Monitoring CT Current Transformer

1 / 5

Xh-Sct-T10 (B) 70A 0.33V Sensor 50A/333mv Clamp UL Split Core Monitoring CT Current Transformer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XH-SCT-T10

Phase

Single

Operation Condition

Indoor

Winding Form

Multilayer Honeycomb Type

Insulating Medium

Epoxy Resin

Installation

Active Type

Magnetic Circuit

Combined Type

Principle

Electromagnetic Type

Usage

Measurement

Input Current

70A, 50A, 80A or Customize

Output

0.333V, 16.6mA, 26.6mA or Customize

ID (Opening)

10mm

Accuracy

0.5%, 1.0%

Hi-Pot Voltage

3.5kv/1mA/1min

Weight

75g

MOQ

10 PCS

Lead Time

3-7 Days

Origin

China

Product Description

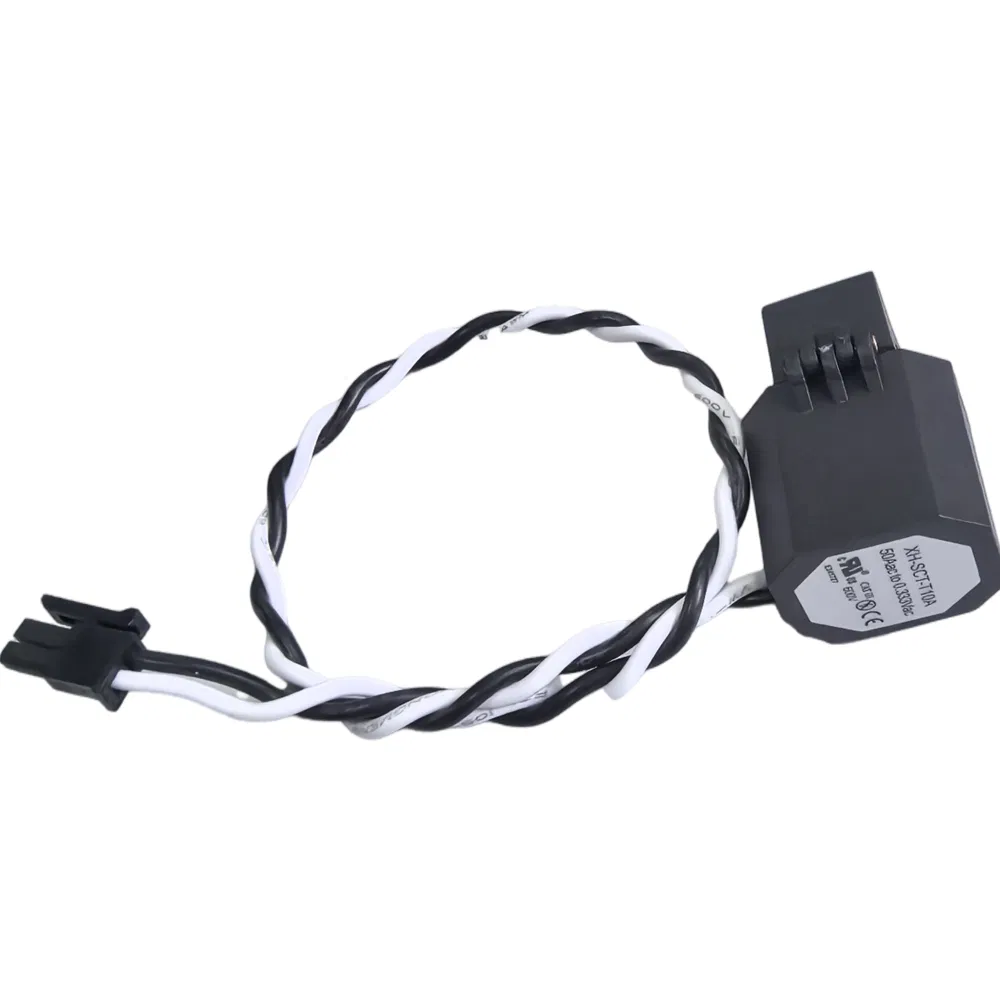

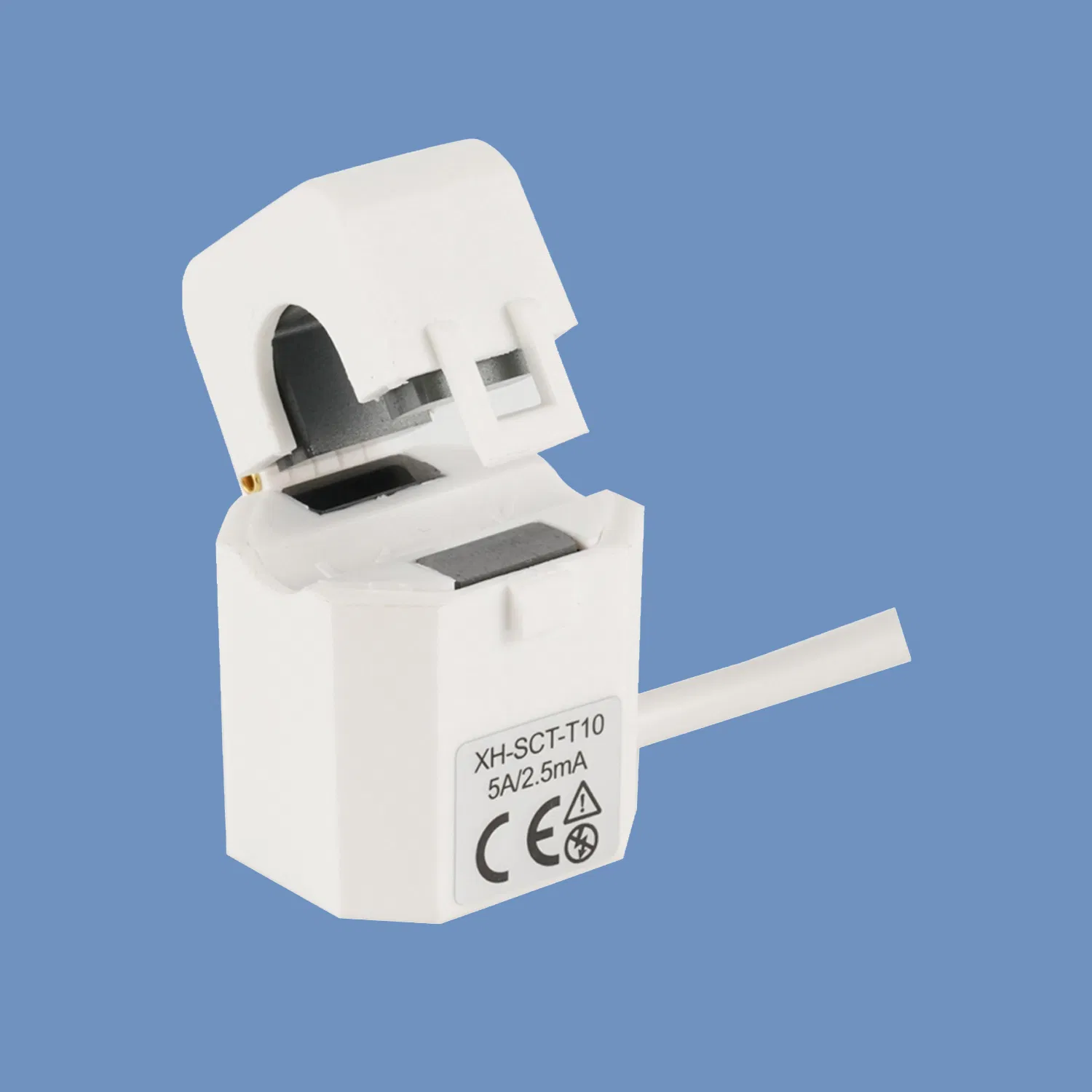

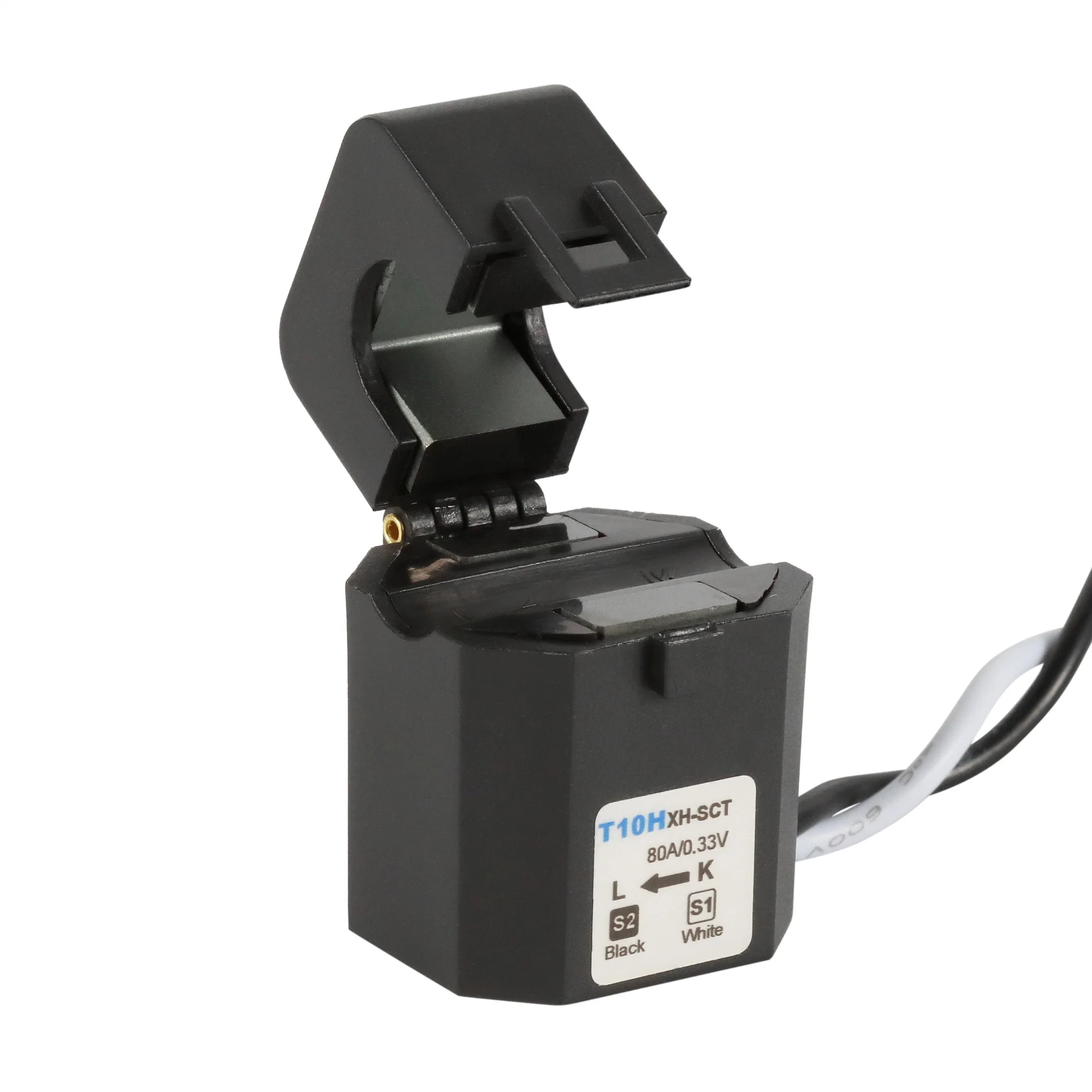

XH-SCT-T10 (B) 70A 0.33V Sensor - UL Split Core Monitoring Current Transformer

The XH-SCT-T10 series features a φ10mm opening with a rating from 5 to 80 Amps. Designed for easy installation without disconnecting the primary circuit.

SPECIFICATIONS

1 Rated Voltage: 0.66KV

2 Insulation Voltage: 3500V

3 Rated Frequency: 50HZ/60HZ

4 Operating Temp: -20ºC to 70ºC

5 Certificates: UL, CE, ROHS

FEATURES

1 Cost-effective solution

2 Split core design for easier installation

3 Built-in diode, no high voltage danger

4 Excellent linearity at low current

Model	Input (A)	Max Current (A)	Output
XH-SCT-T10A	0.2-80AAC	100AAC	mA / 0.333VAC / 0-3VAC
XH-SCT-T10B	0.2-80AAC	100AAC	mA / 0.333VAC / 0-3VAC

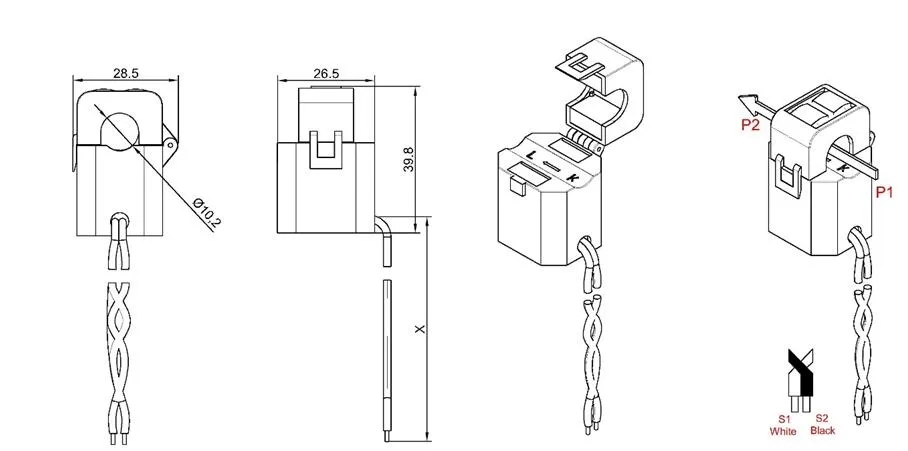

Dimensions & Technical Drawings

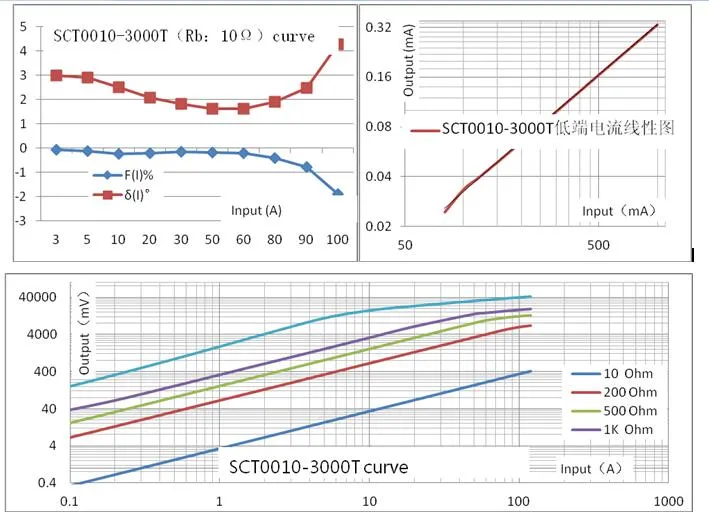

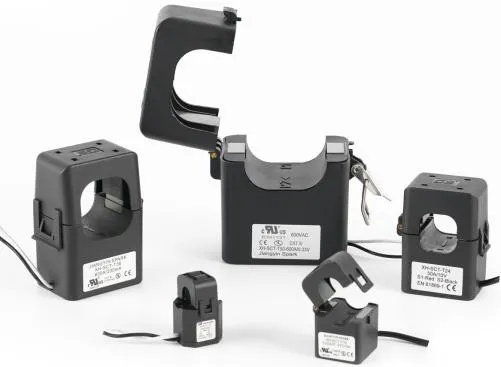

Other Split Core Models

Model	I.D. (mm)	Ratio	Rated Amps	Accuracy
XH-SCT-T06	6mm	1000:1	1, 5, 10, 15, 20	0.5, 1.0
XH-SCT-T10	10mm	3000:1	5, 15, 30, 50, 75, 80	0.5, 1.0
XH-SCT-T16	16mm	3000:1	50, 70, 100, 120	0.5, 1.0
XH-SCT-T24	24mm	3000:1	100, 150, 200, 300	0.5, 1.0
XH-SCT-T36	36mm	3000:1	300, 400, 500, 600	0.5, 1.0

Packaging & Shipping

Package Details

· All CTs are well packed with bubble wrap and white boxes in a sturdy carton.

· Neutral packing or OEM designs available.

Shipping Info

· Shipped via UPS, DHL, FedEx, TNT (door to door), or air/sea for large quantities.

· Lead Time: 3-7 days for quantities under 1000PCS.

Our Commitment

✓ Better Price: Factory Direct Sale advantages.

✓ Better Quality: 20+ years of experience in current transformer manufacturing.

✓ Fast Delivery: Efficient production and logistics.

✓ Warranty: 1-year warranty provided for all products.

Note: We provide FREE samples for your test! Please contact us to apply for a FREE Trial now. Let us know your required model, input current, output signal, and cable length.

Frequently Asked Questions

1. What is the main advantage of a split-core current transformer?

The split-core design allows for easy installation without needing to disconnect or break the existing electrical circuit, saving time and reducing labor costs.

2. Can the output signal be customized?

Yes, we offer various output options including 0.333V, 16.6mA, 26.6mA, or other customized signals to meet your specific monitoring requirements.

3. Is the XH-SCT-T10 safe for indoor use?

Absolutely. It is designed specifically for indoor operation conditions with high-quality epoxy resin insulation and is certified by UL, CE, and ROHS.

4. What is the typical lead time for a standard order?

For standard products with quantities under 1000 pieces, the lead time is typically 3 to 7 days after receiving payment.

5. What happens if the product is found to be defective?

We provide a 1-year warranty. If a product is defective, please notify us within 3 days of receipt for a return, refund, or exchange.

6. Do you support OEM or custom labeling?

Yes, we welcome OEM/ODM projects. You can design your own labels and packaging to suit your brand needs.
