Product Description

Basic Specifications
Model NO.
XH-SCT-T16
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Accuracy
0.5%
Rated Input Current
10-120A
Rated Output
33.3mA, 40mA, 50mA, 0.333V
Certificates
UL, CE, RoHS
Inner Diameter (ID)
16mm
Insulating Medium
Insulating Paper
Installation
Active Type
Withstanding Voltage
3.5kv/1mA/1min
Product Description

Split-Core AC Current Transformer XH-SCT-T16 is designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easier, and portable current measurement.

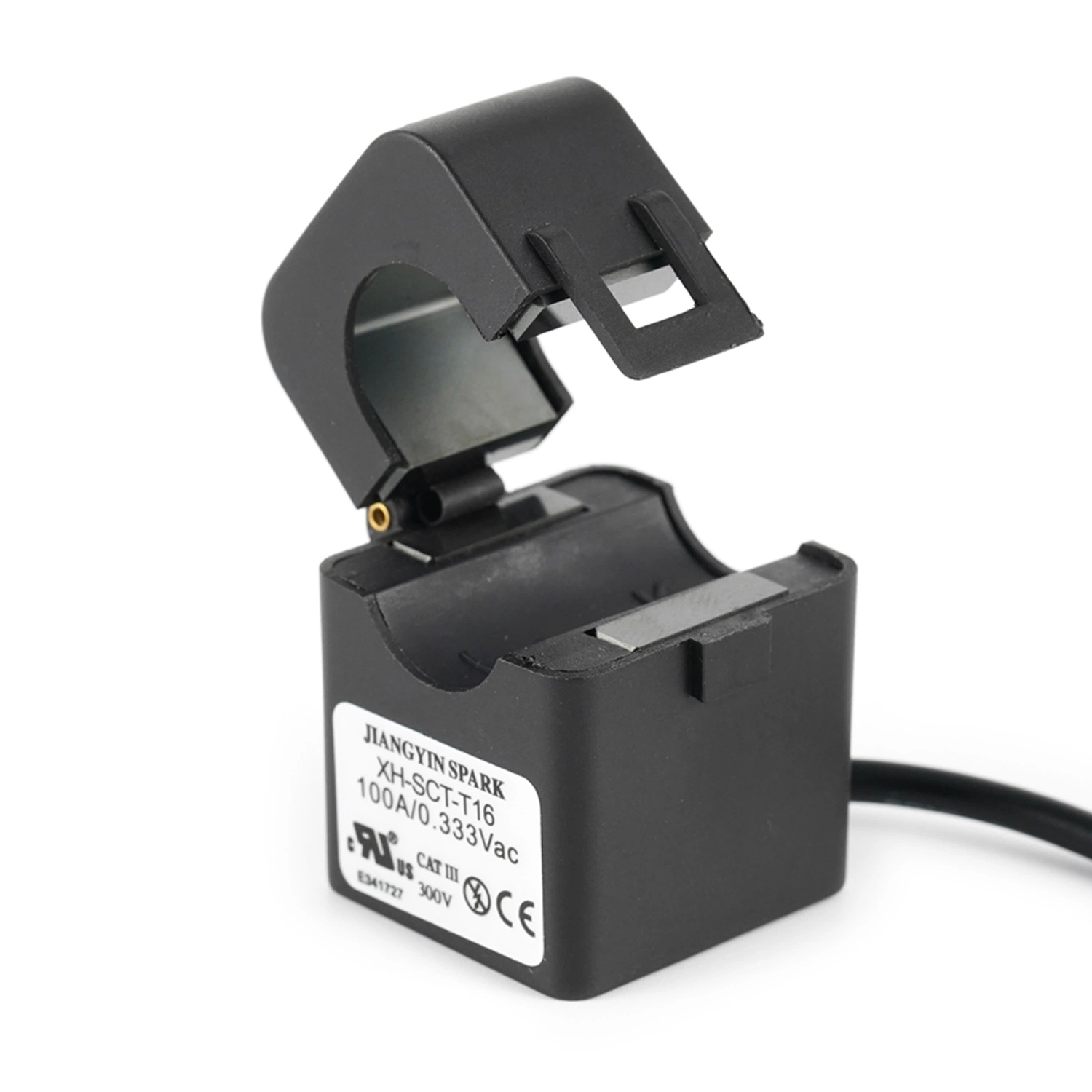

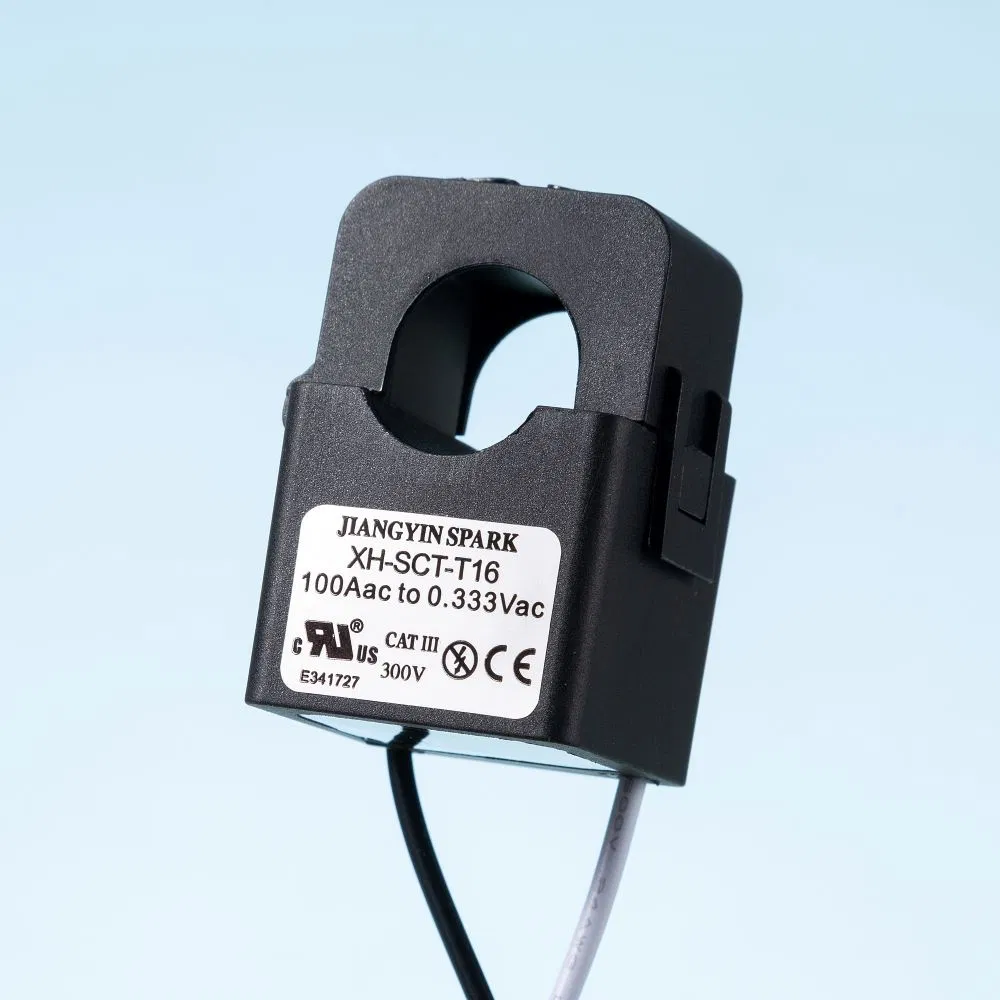

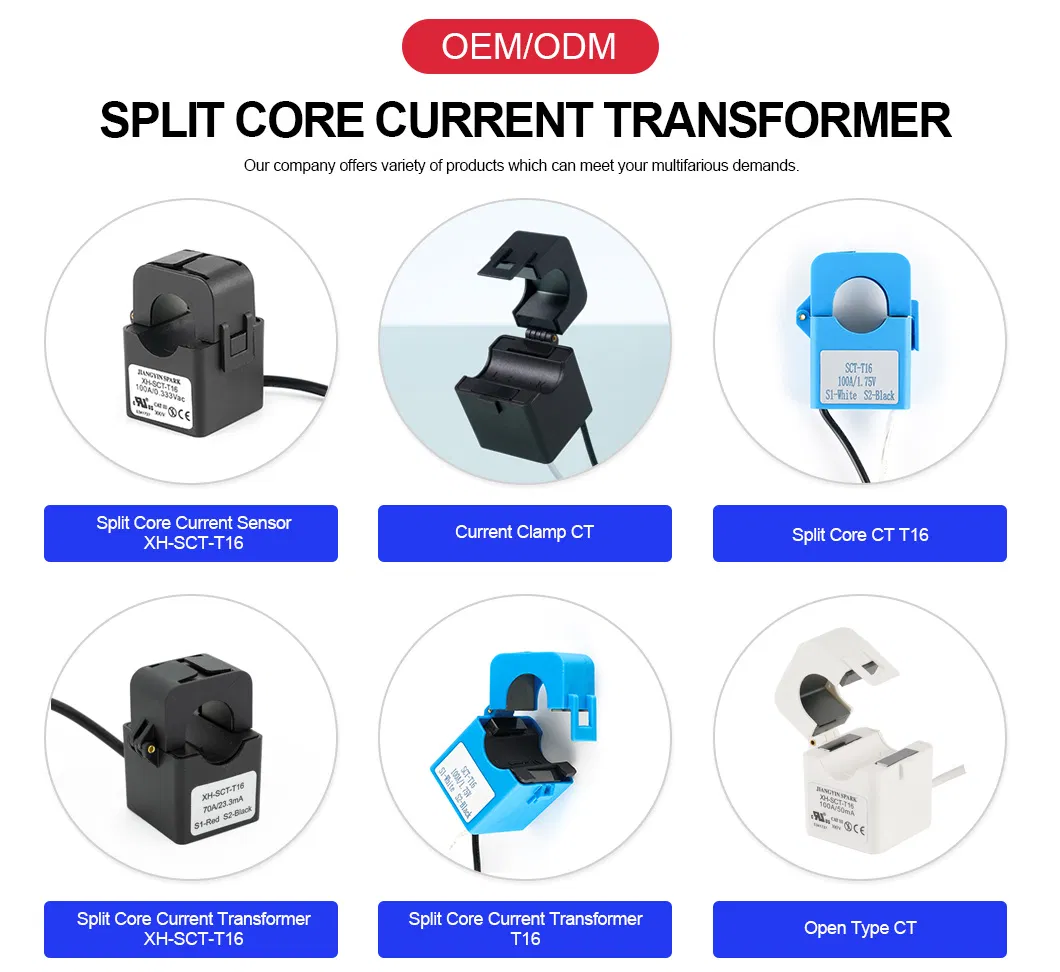

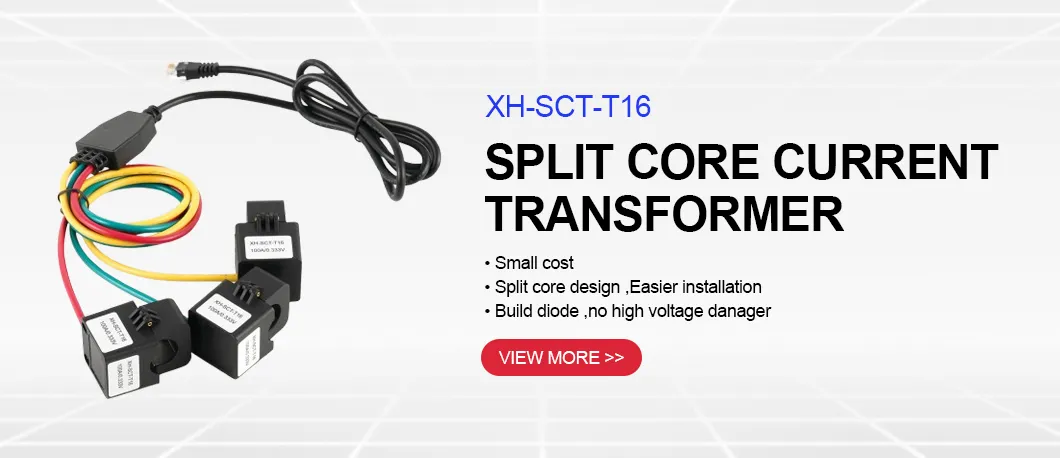

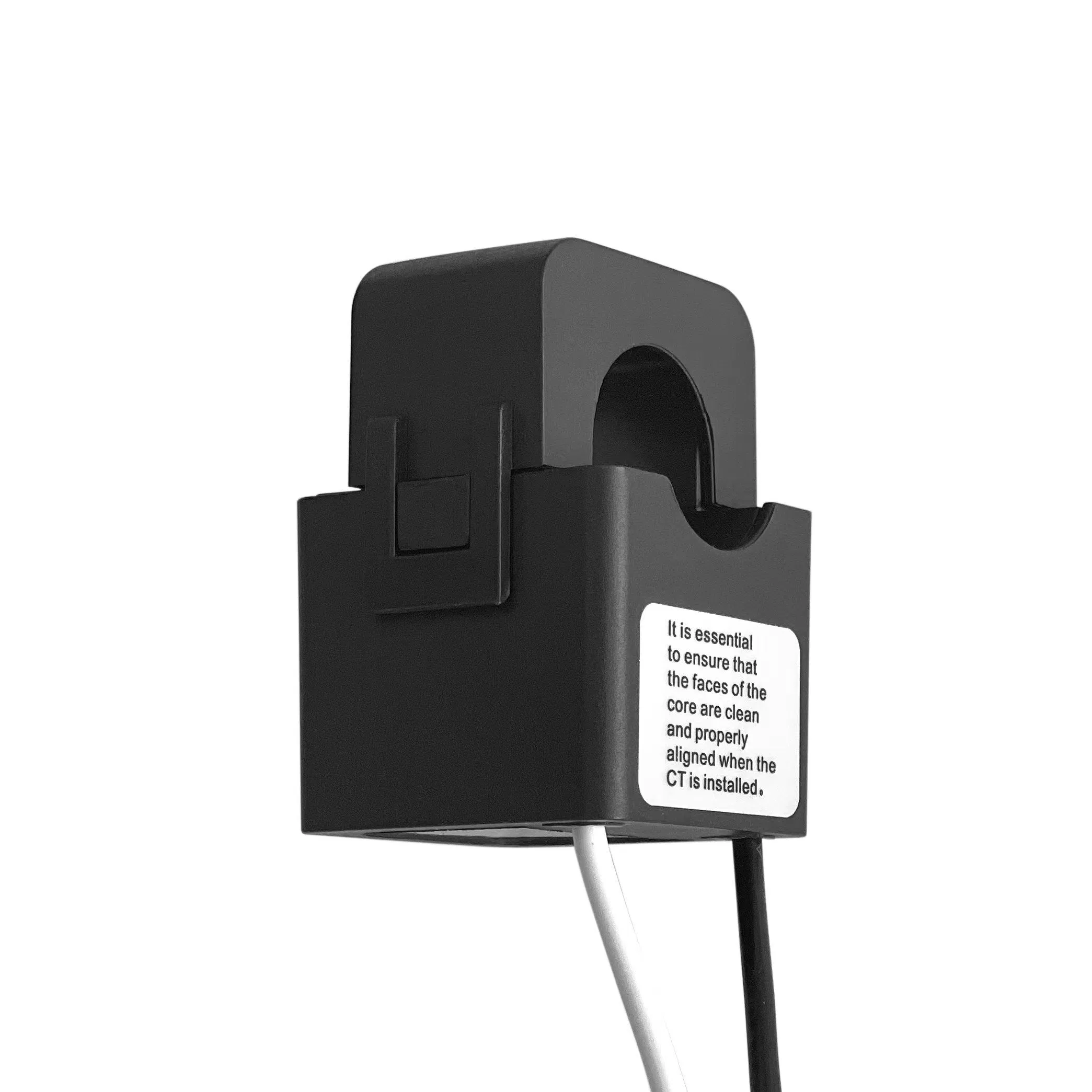

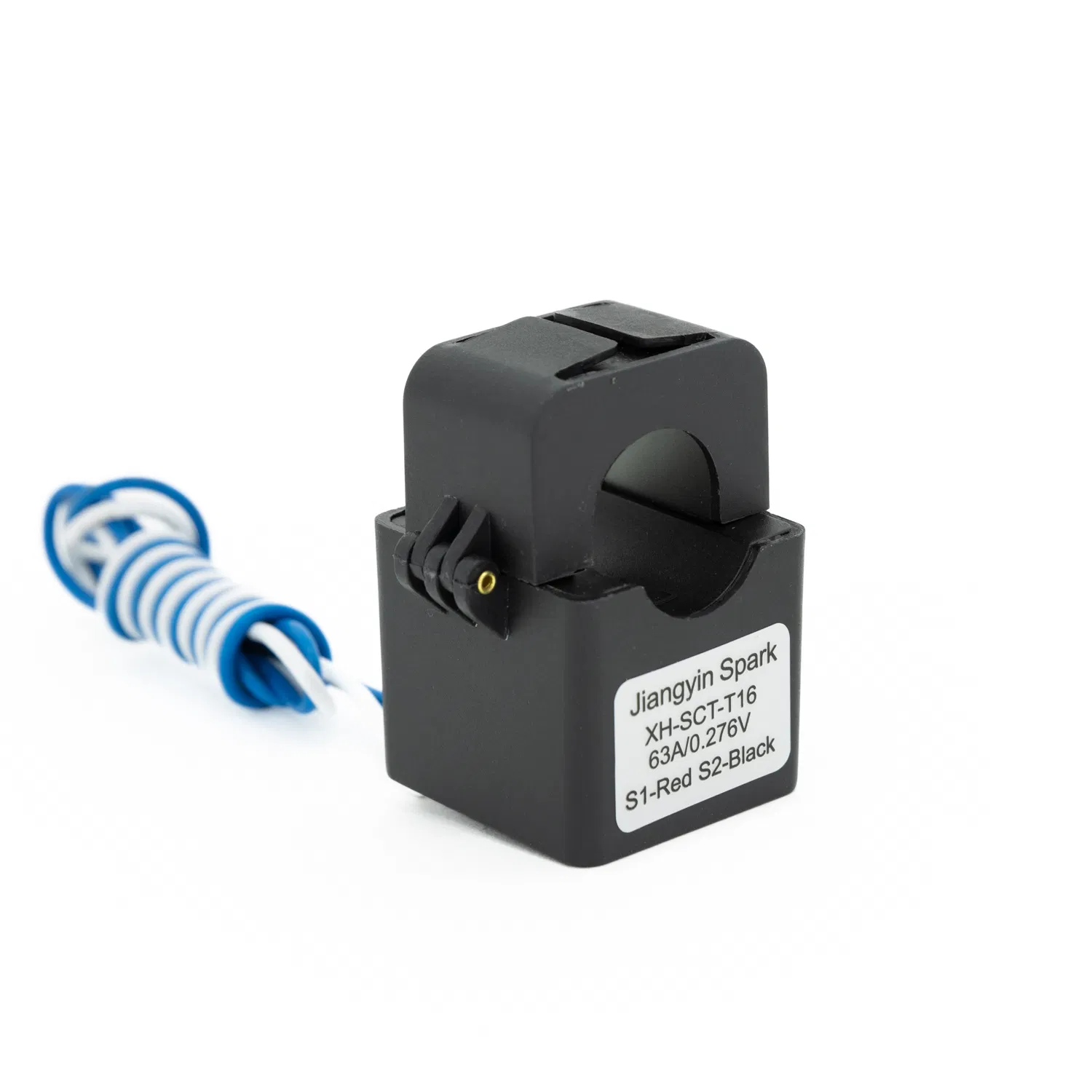

XH-SCT-T16 Display XH-SCT-T16 Details
Main Features
  • Maximum continuous primary current 120A AC
  • Output: mA or 0.333 Volt at rated current
  • Current Ratio: 500:1, 1000:1, 2000:1, 3000:1
  • Frequency Range: 50 Hz to 400 Hz
  • Accuracy: ± 0.5%
  • Operating Temperature: -25°C to 85°C
  • CE, ETL recognized, and RoHS compliant
Applications
  • Sub-Metering Accurate Measurement
  • Data Loggers for Building & Machinery Performance
  • Digital Fault Recorders
  • Smart Grid Application Features
  • Inverters for Solar & Wind Turbine Systems
  • Power Measurement Device For PLC
Technical Specifications
Model Input (A) Max current (A) Output
XH-SCT-T16 0.2-120AAC 140AAC mA / 0.333VAC / 0-3 VAC
Dimensions & Performance

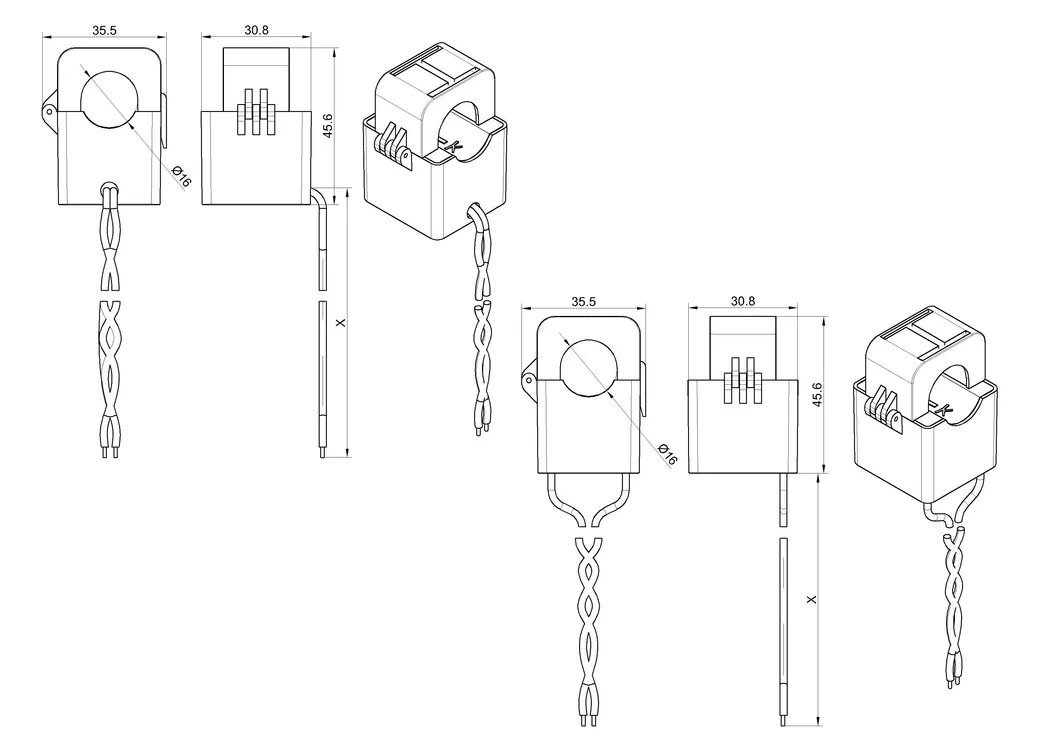

XH-SCT-T16 Dimensions

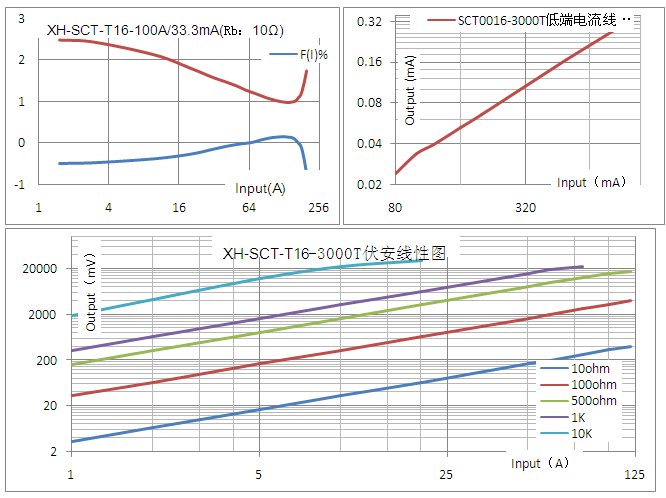

Curve Performance 1 Curve Performance 2

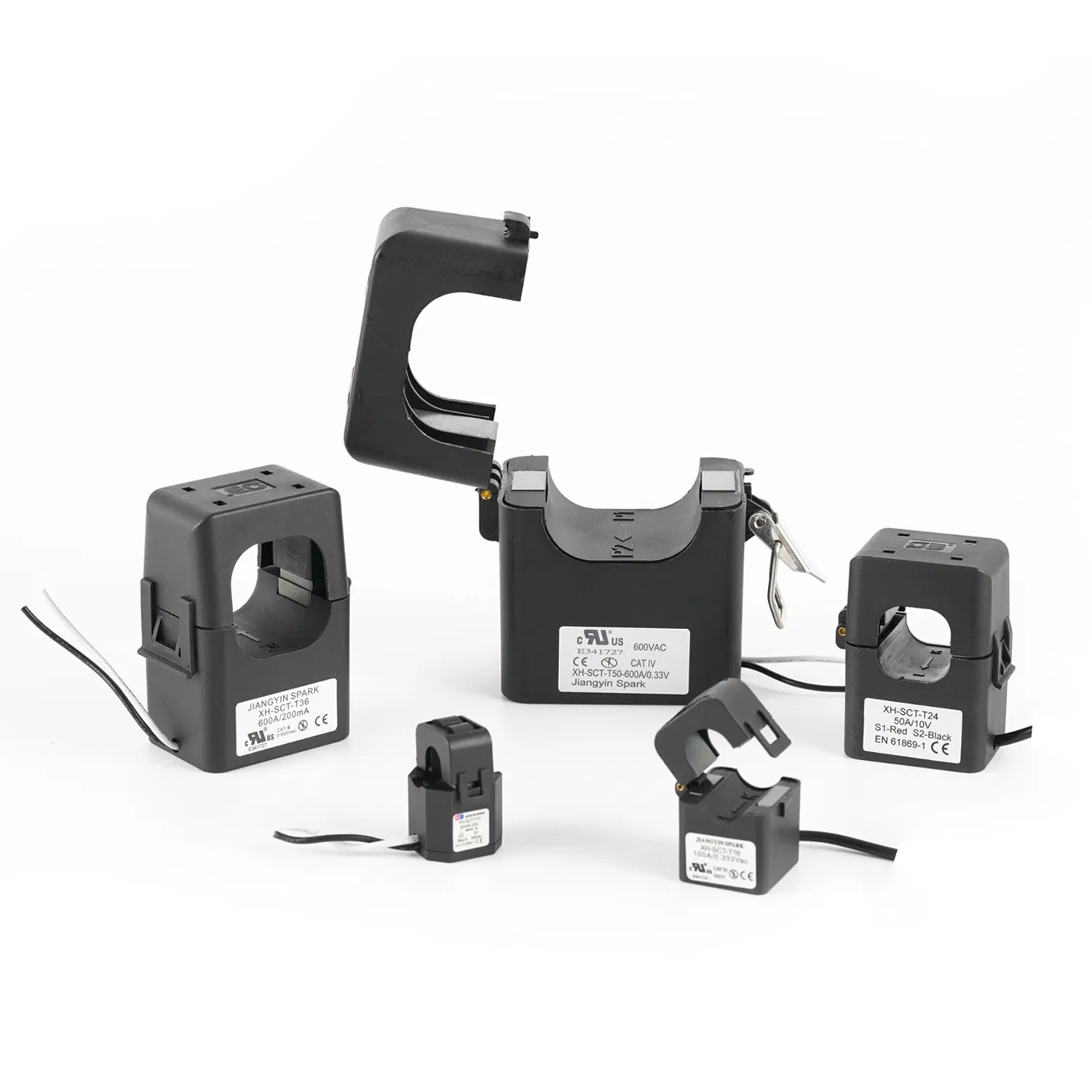

Other Split Core Models

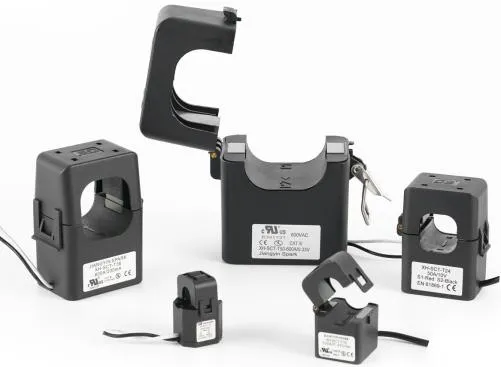

Other Models Overview
Model I.D. (mm) Ratio Rated Amps (A) Accuracy
XH-SCT-T066mm1000:11, 5, 10, 15, 200.5, 1.0
XH-SCT-T1010mm3000:15, 15, 30, 50, 75, 800.5, 1.0
XH-SCT-T1616mm3000:150, 70, 100, 1200.5, 1.0
XH-SCT-T2424mm3000:1100, 150, 200, 3000.5, 1.0
XH-SCT-T3636mm3000:1300, 400, 500, 6000.5, 1.0
Packaging & Delivery
Packaging Box Warehouse Stock Shipping Logistics

Package Details: All CTs are well packed with bubble wrap and white boxes in standard cartons. Netural packing and OEM labels are supported.

Shipping: Shipped via UPS, DHL, FedEx, TNT (door to door), or air/sea for large quantities. Standard lead time is 3-7 days for orders under 1000PCS.

Frequently Asked Questions
Do I need to disconnect the power line to install this transformer?
No, the split-core design allows for easy installation around existing wires without disconnecting the primary circuit.
What is the measurement accuracy of the XH-SCT-T16?
The model provides a high accuracy of ±0.5% at the rated current range.
What certifications does this product hold?
It is UL, CE, and RoHS compliant, ensuring it meets international safety and environmental standards.
Can the output signal be customized?
Yes, we can provide customized output signals such as mA, 0.333V, or other specific requirements.
What is the standard lead time for an order?
For quantities under 1000PCS, the typical lead time is 3 to 7 days upon receipt of payment.
Is there a warranty provided for this transformer?
We provide a 1-year warranty for all our current transformer products.
