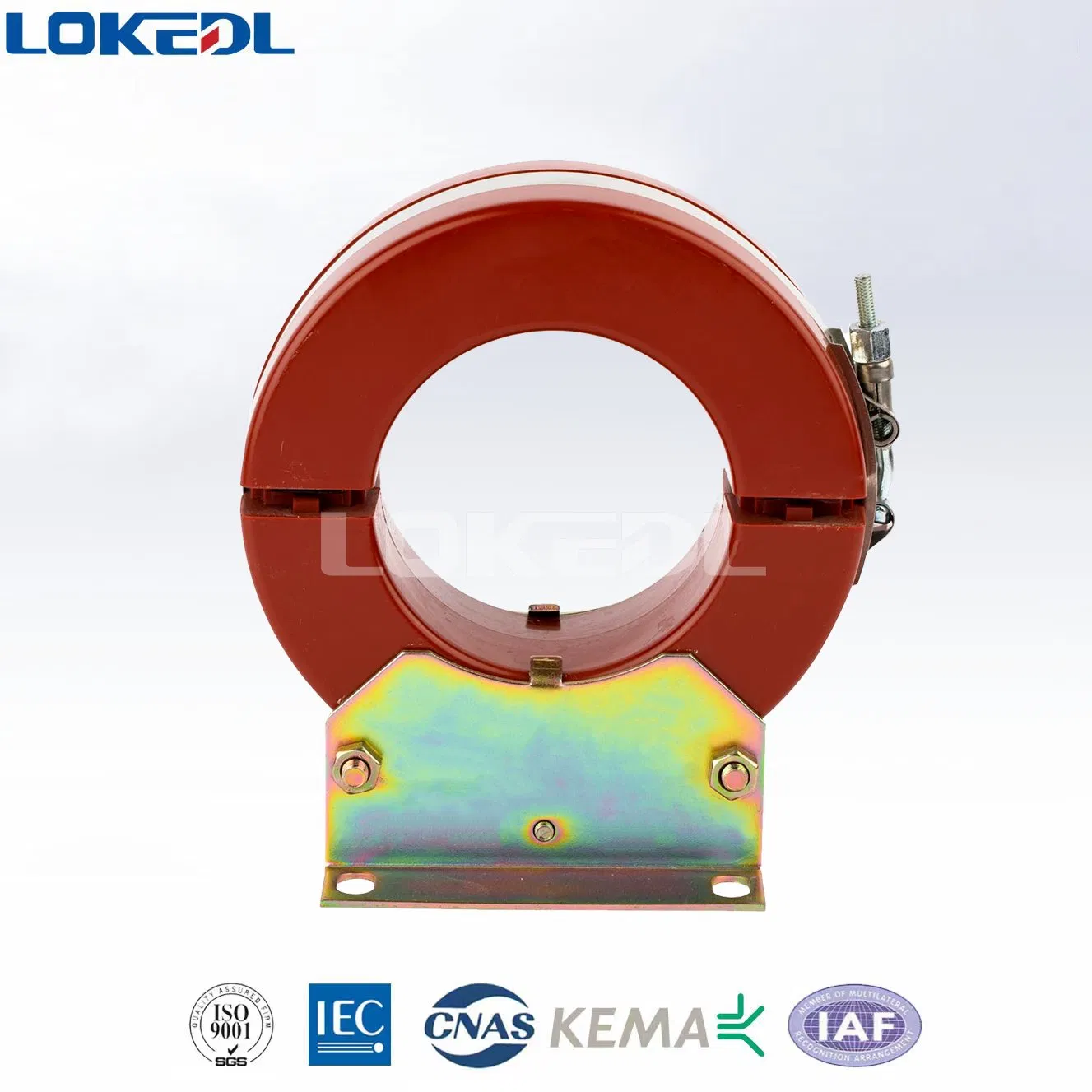

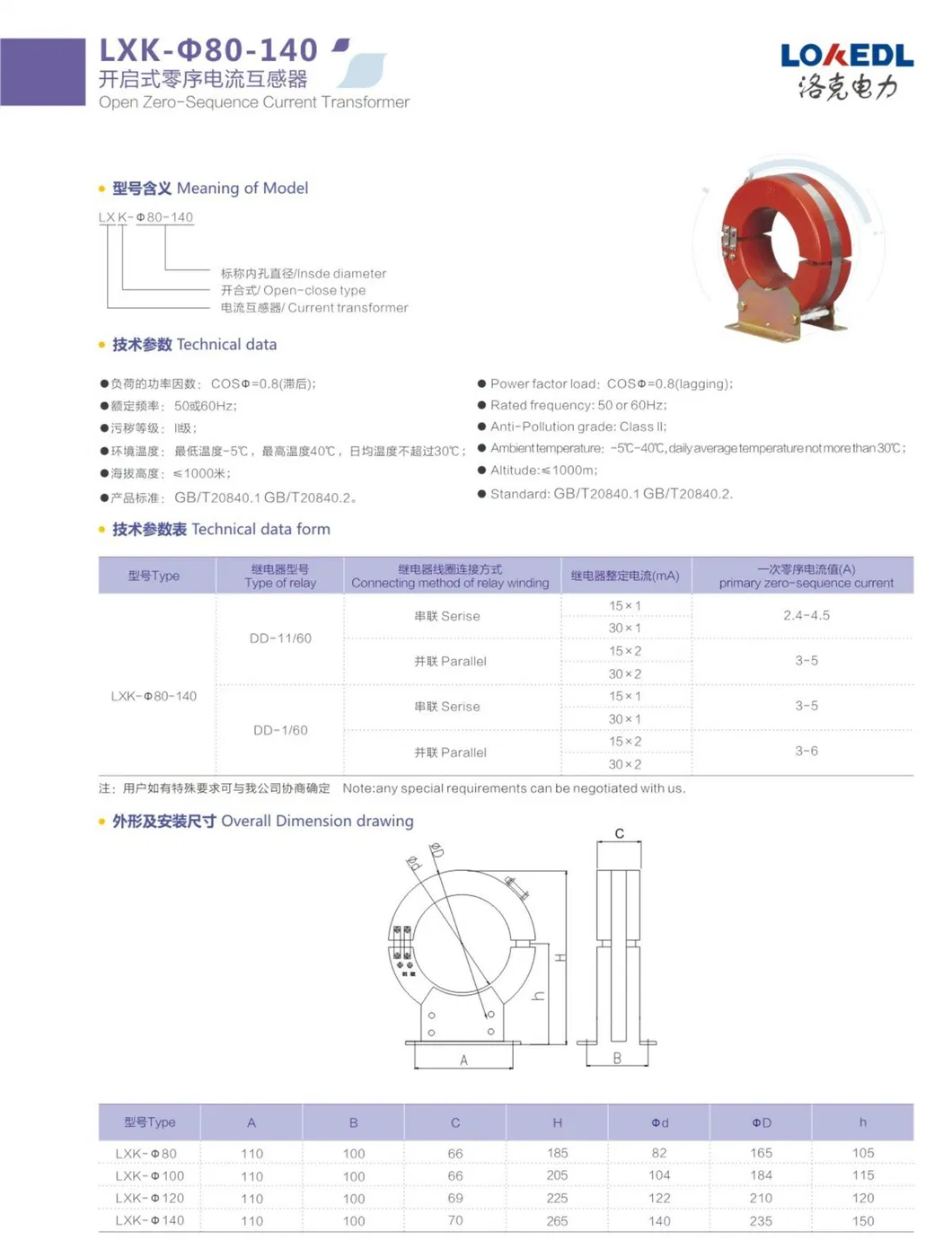

LXK-φ80 Type Zero Sequence Current Transformer
This series is suitable for power measurement, current monitoring and relay protection in power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 10kV. Applicable Standards: IEC60044-1, GB 1208.
Operation Conditions:
| Relay Model | Connection Method | Scale Division | Primary Zero Sequence Value (A) |
|---|---|---|---|
| DD-11/60 DD-1/60 |
Series | 15×1 / 30×1 | 2.4~4.5 |
| Parallel | 15×2 / 30×2 | 3~5 | |
| Series | 15×1 / 30×1 | 3~5 | |
| Parallel | 15×2 / 30×2 | 3~6 |
Structure and Feature:

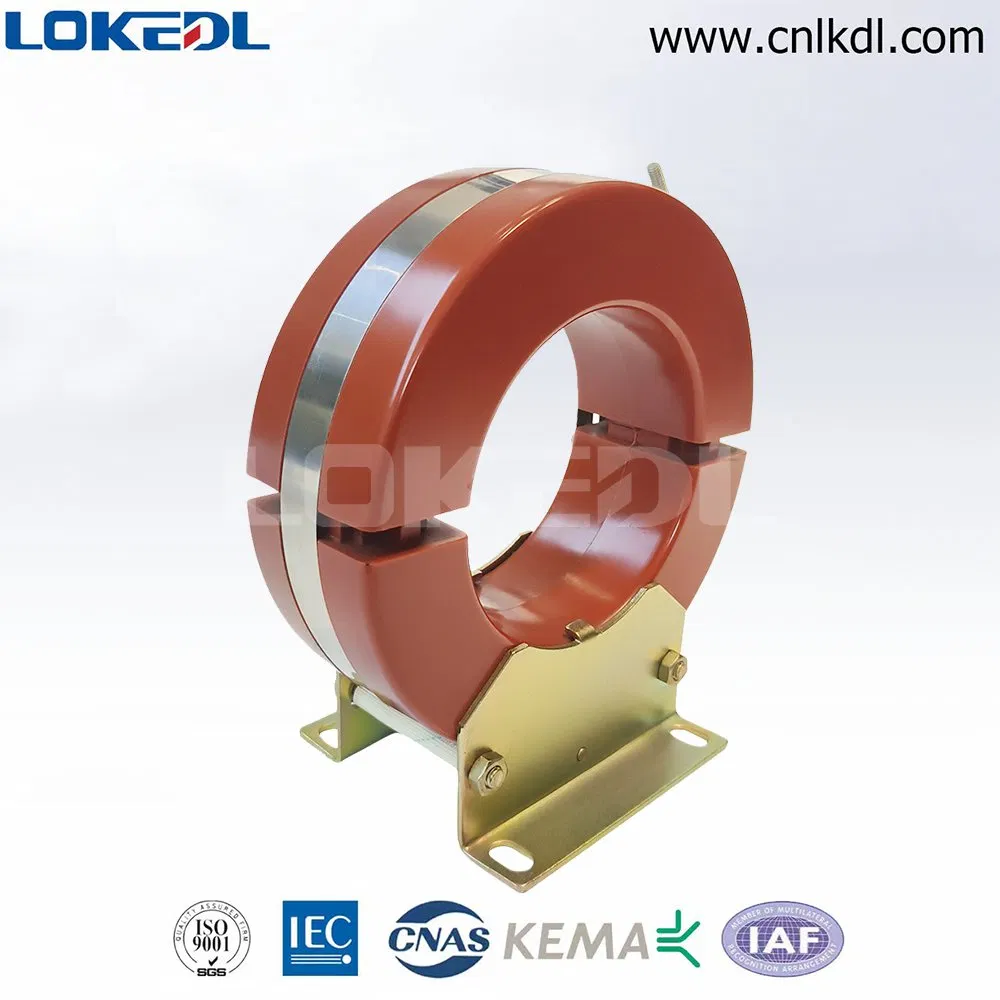

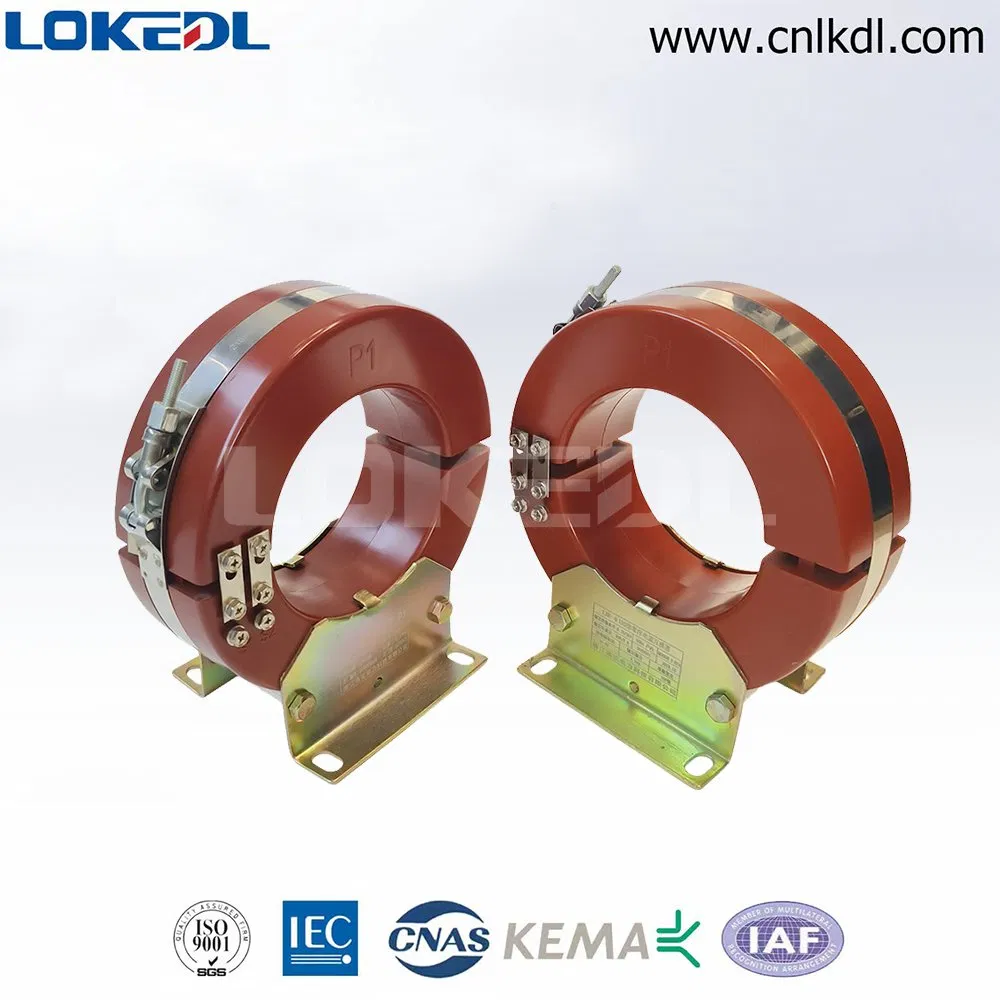

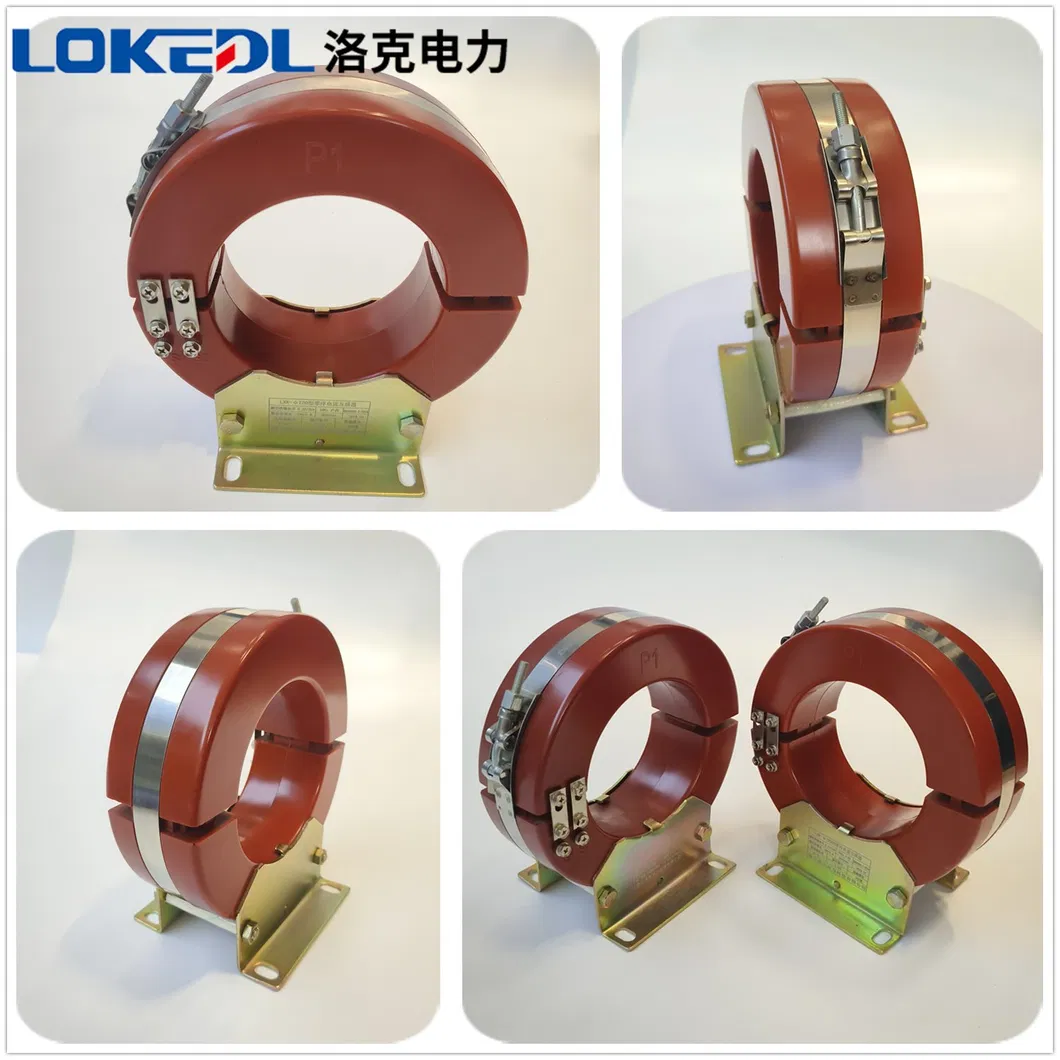

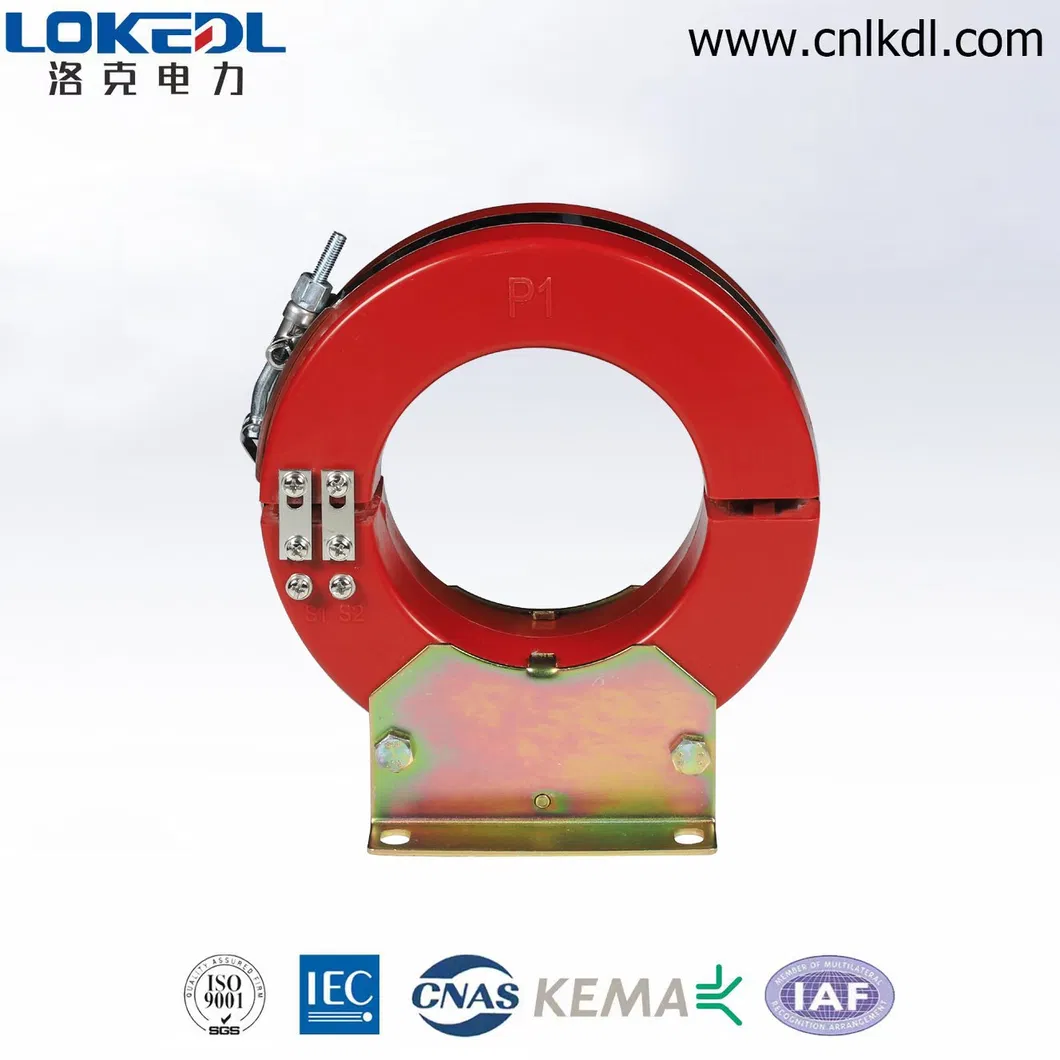

The product adopts a switching type structure with a "C" type iron core. The secondary winding is departed into two parts and wound respectively on the core, then cast with epoxy resin. Includes a clamping piece for bottom mounting.

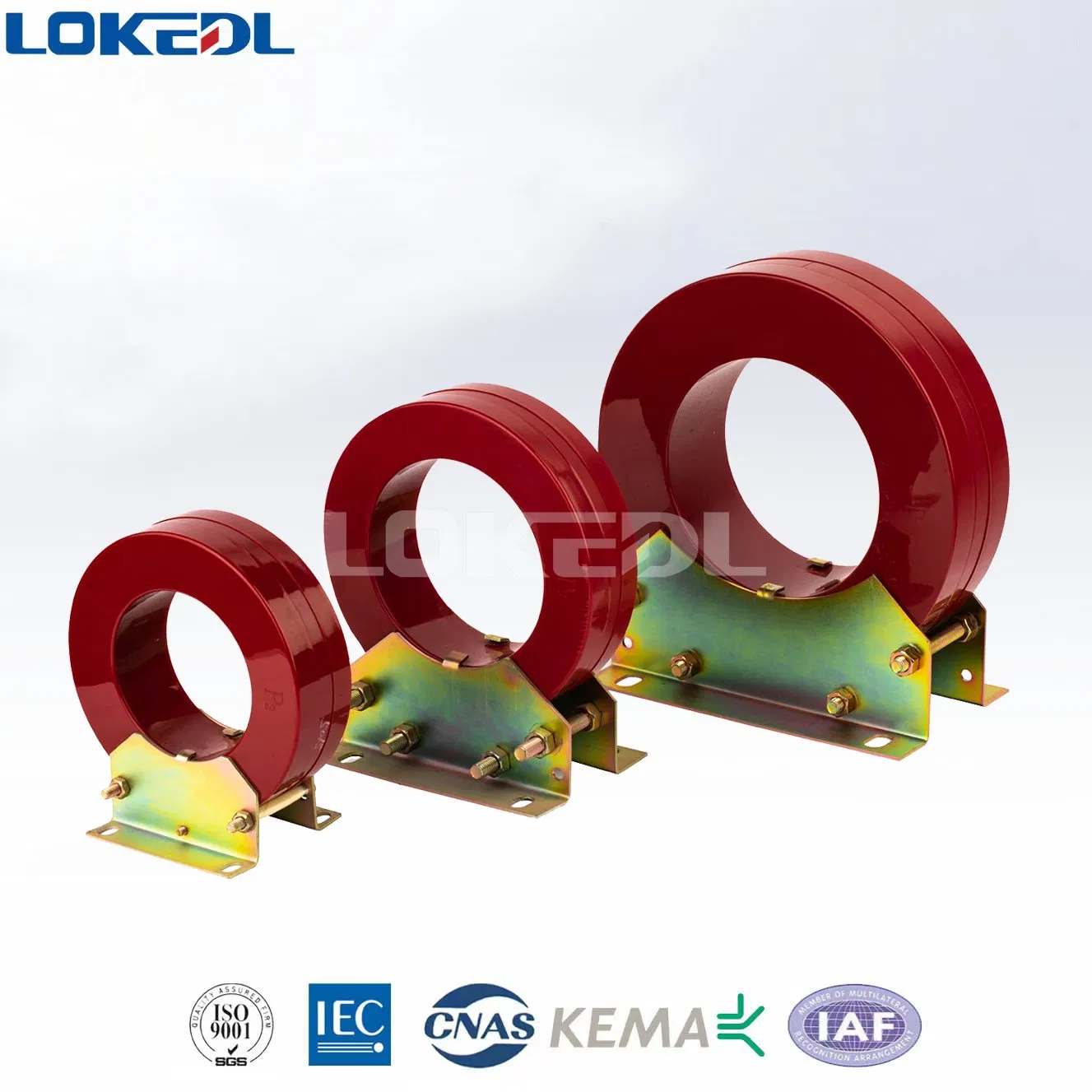

| Model | d (Inner Dia) | D | H | A | B | C |
|---|---|---|---|---|---|---|
| LXK-φ80 | 80 | 160 | 180 | 120 | 104 | 122 |
| LXK-φ100 | 100 | 180 | 200 | 120 | 104 | 122 |
| LXK-φ120 | 120 | 200 | 220 | 120 | 104 | 122 |
| LXK-φ150 | 150 | 230 | 250 | 120 | 104 | 122 |
| LXK-φ250 | 250 | 370 | 405 | 180 | 148 | 180 |

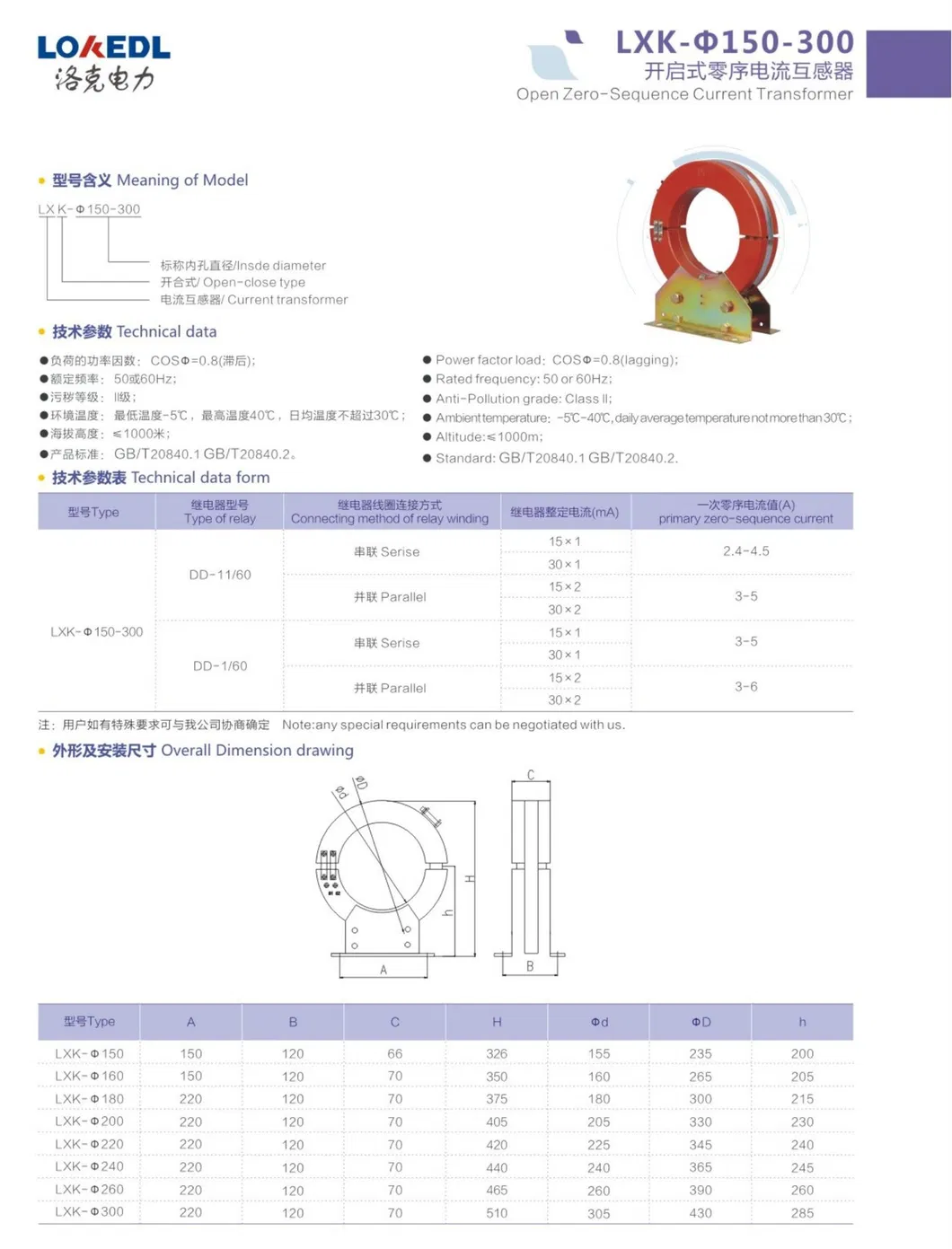

Product Specifications

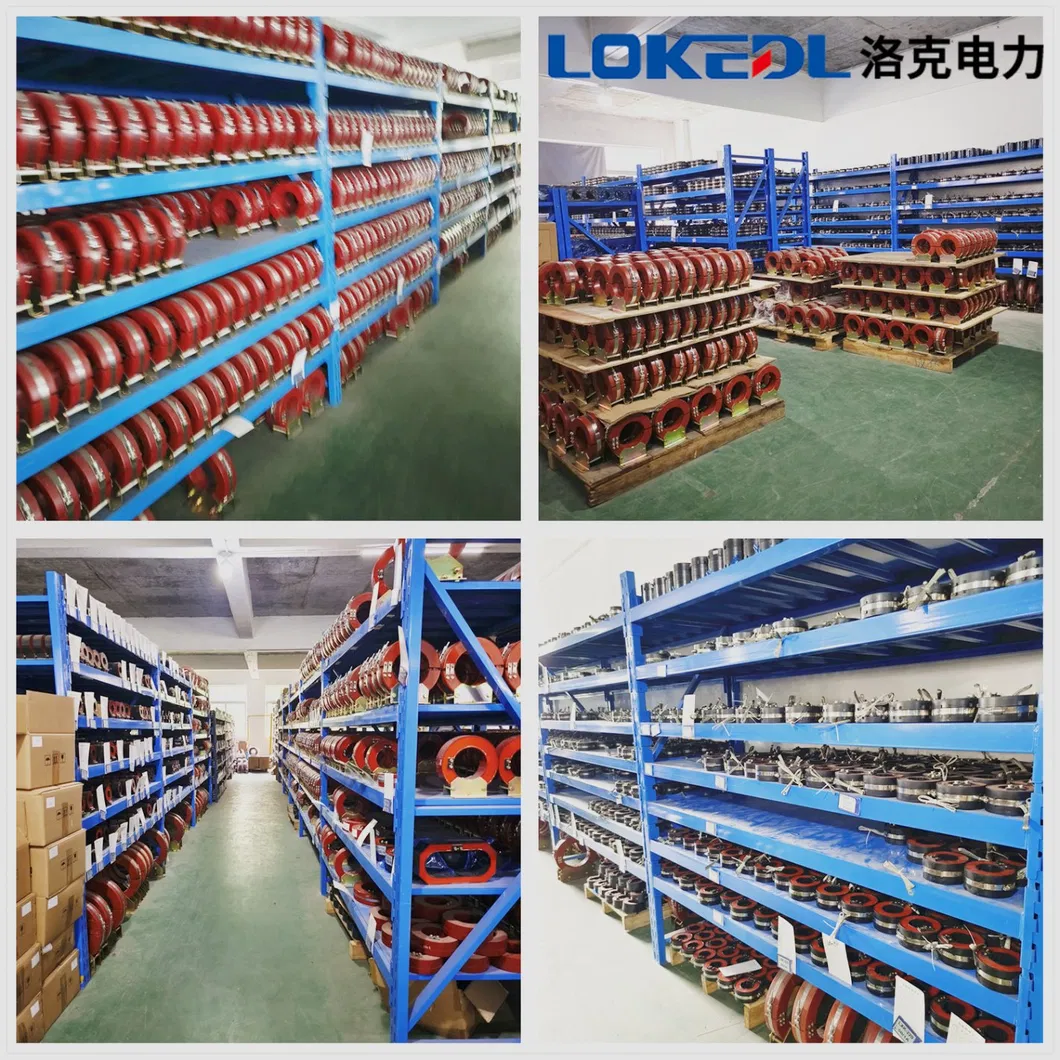

Enough stock to promote production and deliver quickly.

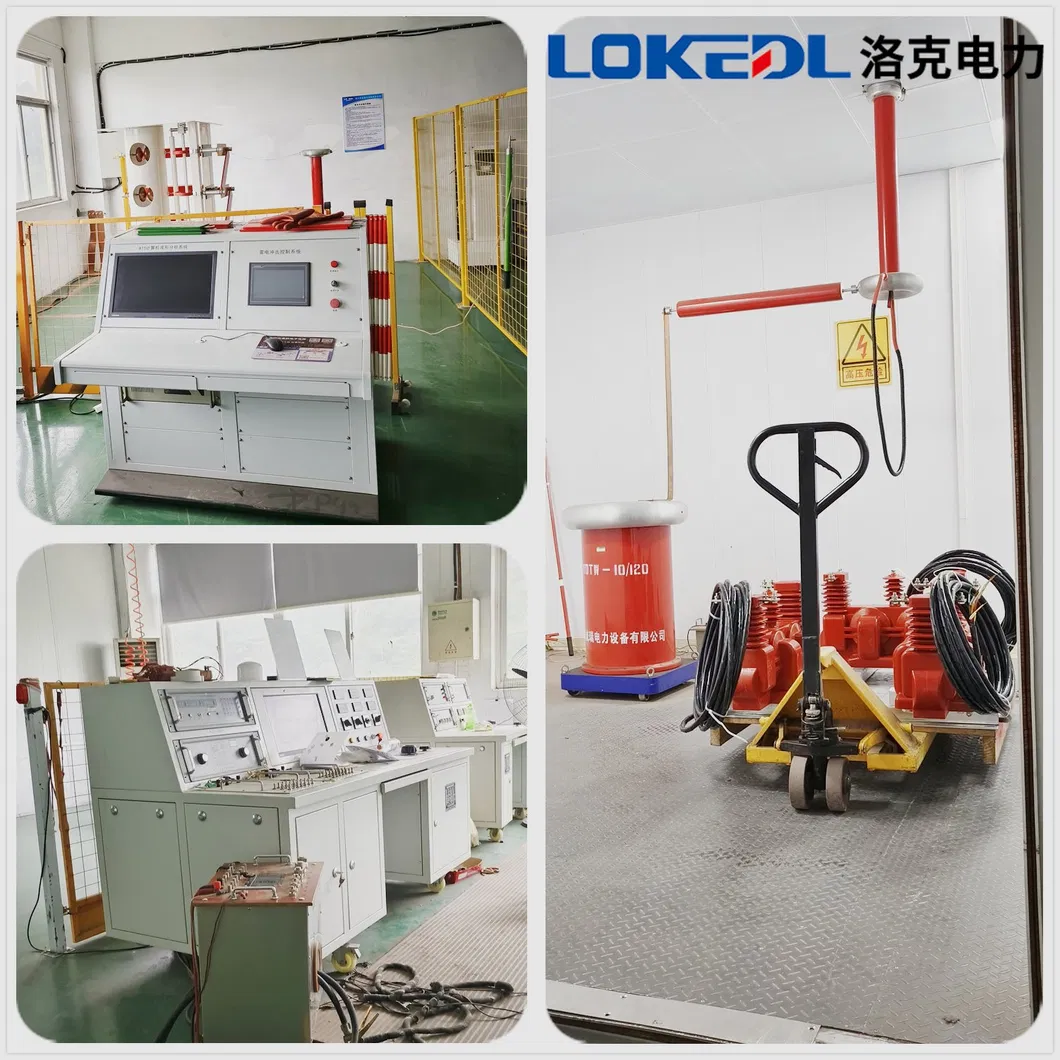

Testing Equipment: Ensuring each CT PT is qualified before dispatch.
