Tanaka Electric
Tanaka Electric

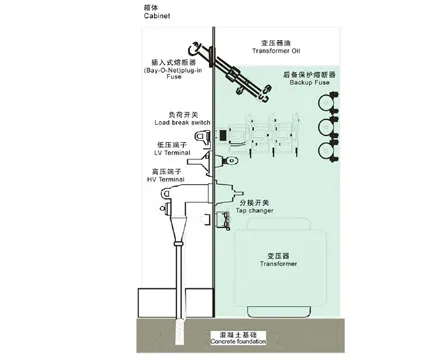

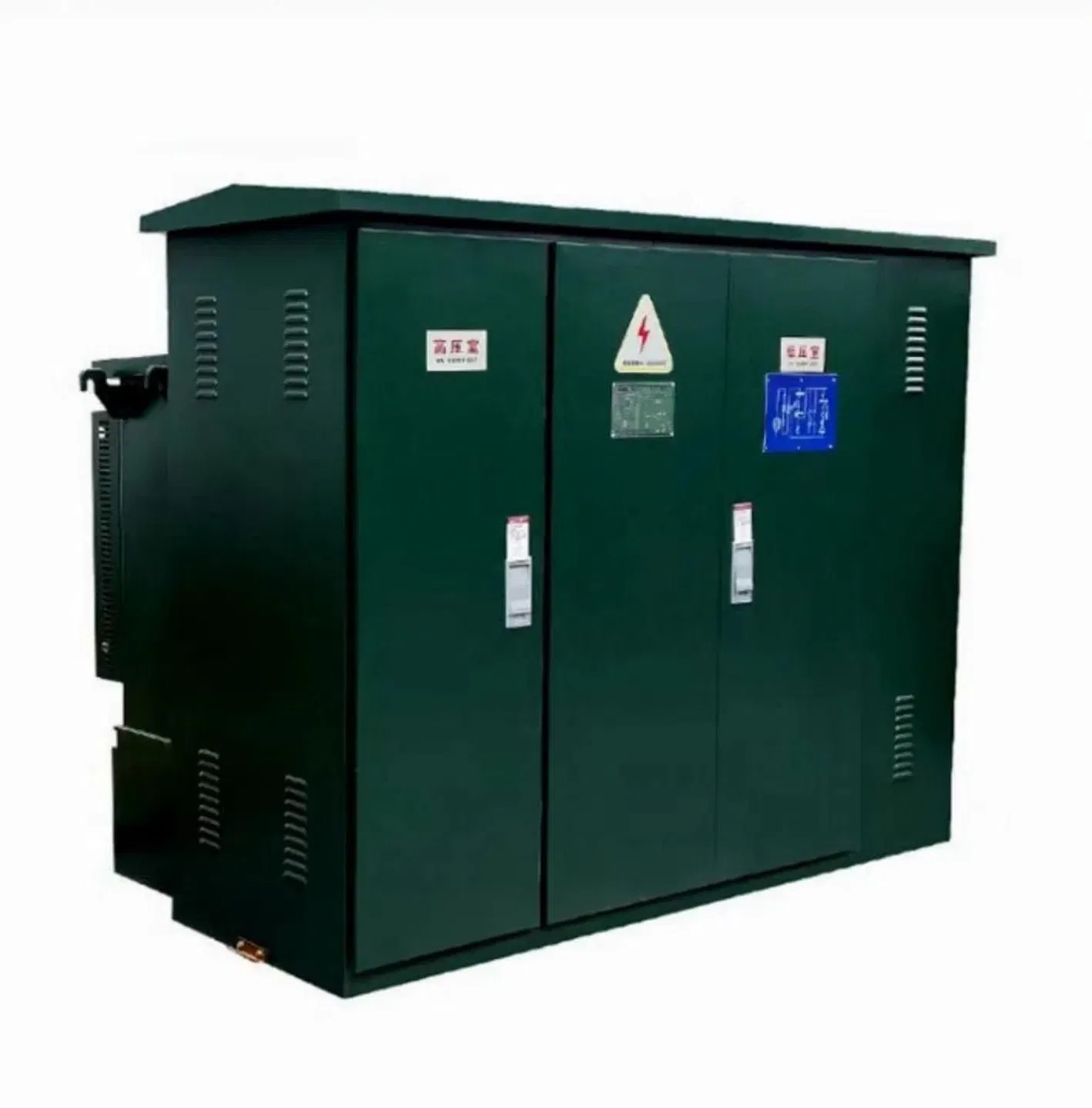

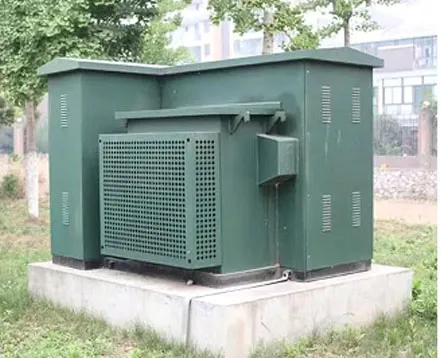

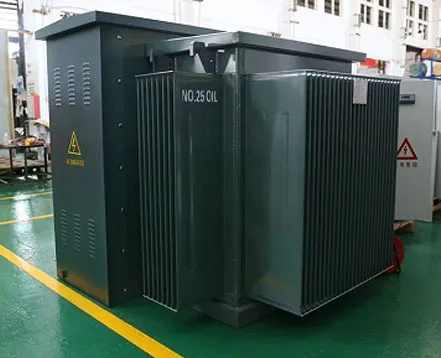

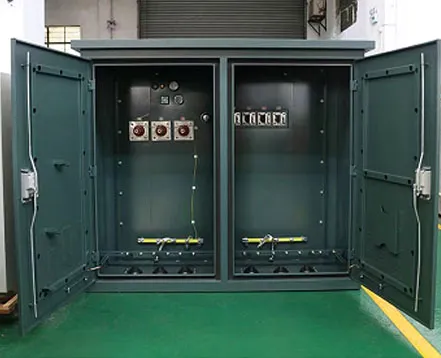

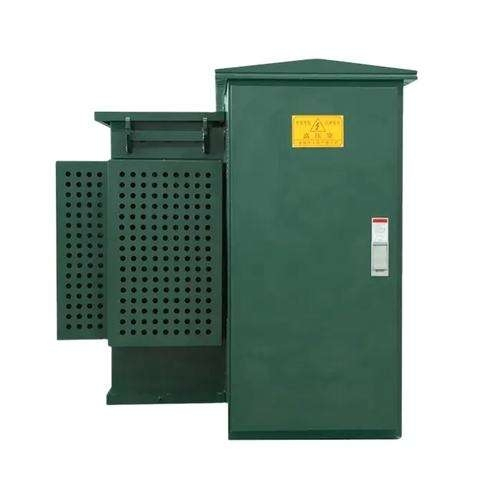

The pad-mounted transformer is a compact, fully enclosed, and tamper-proof distribution transformer that is mounted on a concrete or steel pad. It integrates the high-voltage switch, transformer body, and low-voltage distribution system into a sealed, weather-resistant cabinet. Designed for outdoor applications, it provides safe and reliable power supply in residential, commercial, and industrial areas.

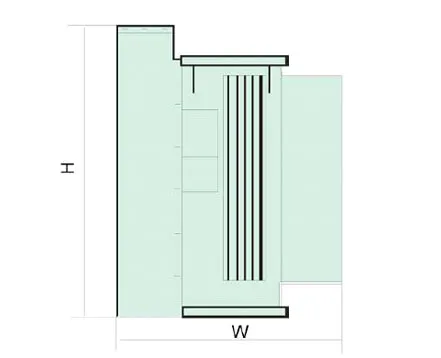

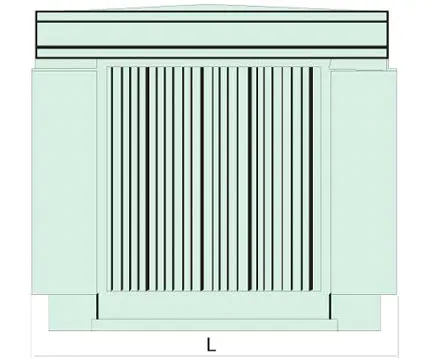

| Rating (kVA) | HV (kV) | Taps (%) | LV (V) | Loss (W) | Dimension (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| No Load | Full Load | A | B | C | Oil | Total | ||||
| 75 | 12.47 | ±2x2.5% | 480/277/208/120 | 240 | 1230 | 1480 | 1550 | 1575 | 180 | 700 |
| 150 | 410 | 2230 | 1550 | 1565 | 1595 | 220 | 1005 | |||
| 300 | 680 | 3850 | 1680 | 1600 | 1600 | 300 | 1505 | |||
| 500 | 980 | 5380 | 1690 | 1605 | 1600 | 350 | 2003 | |||
| 1000 | 1180 | 10500 | 1800 | 1700 | 1650 | 660 | 3335 | |||
| 2500 | 2550 | 25800 | 1850 | 1750 | 1800 | 1500 | 4950 | |||

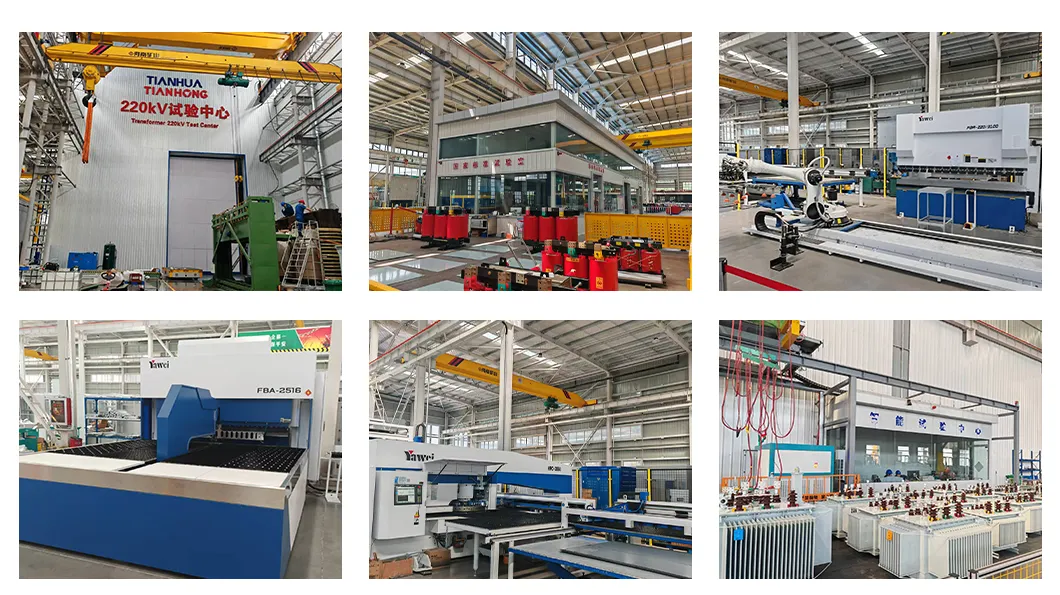

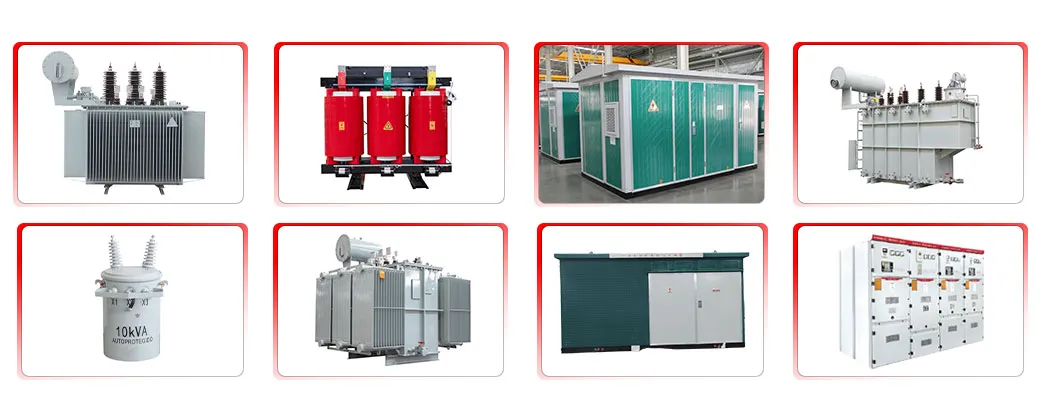

Our enterprise is a high-tech manufacturer engaged in the production, research, and development of transformers and supporting power products. With a total investment of 250 million yuan, we operate with a dedicated team of over 500 employees, including senior engineers and technical experts. Our production range covers 500kV and below oil-immersed transformers, epoxy resin cast dry-type transformers, amorphous alloy distribution units, and prefabricated substations.
We strictly follow ISO9001 quality management systems and international standards to ensure every unit meets the highest efficiency and safety requirements. Our products have passed rigorous testing at National Electrical Quality Supervision centers and hold various energy efficiency certifications.
