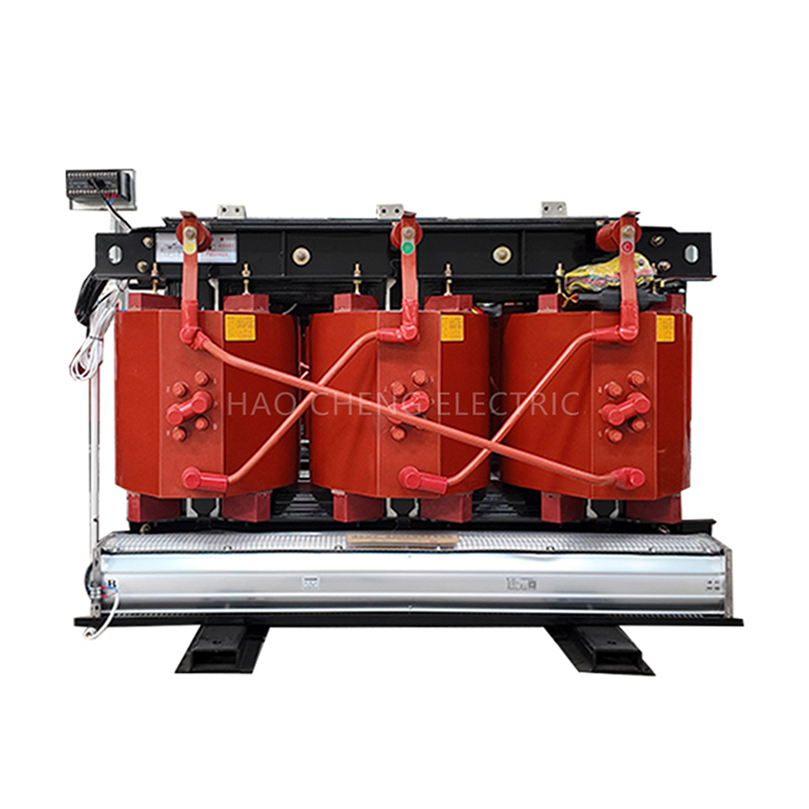

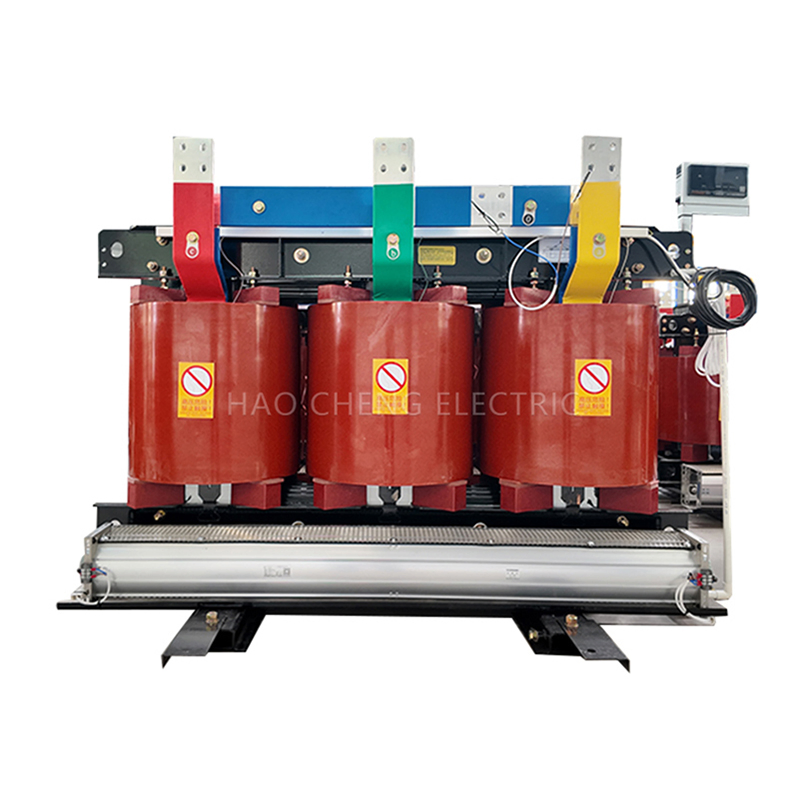

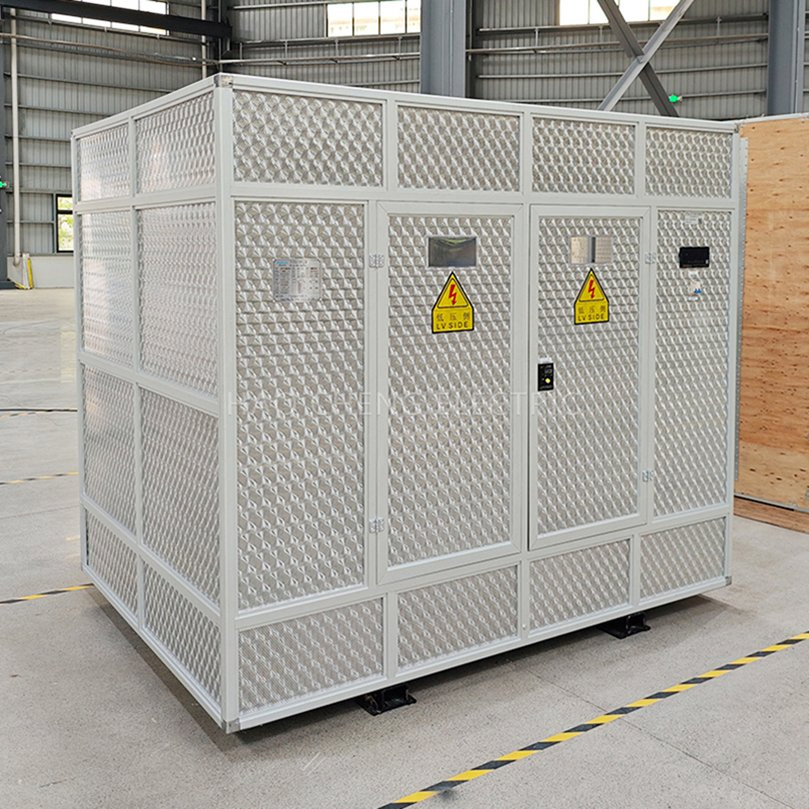

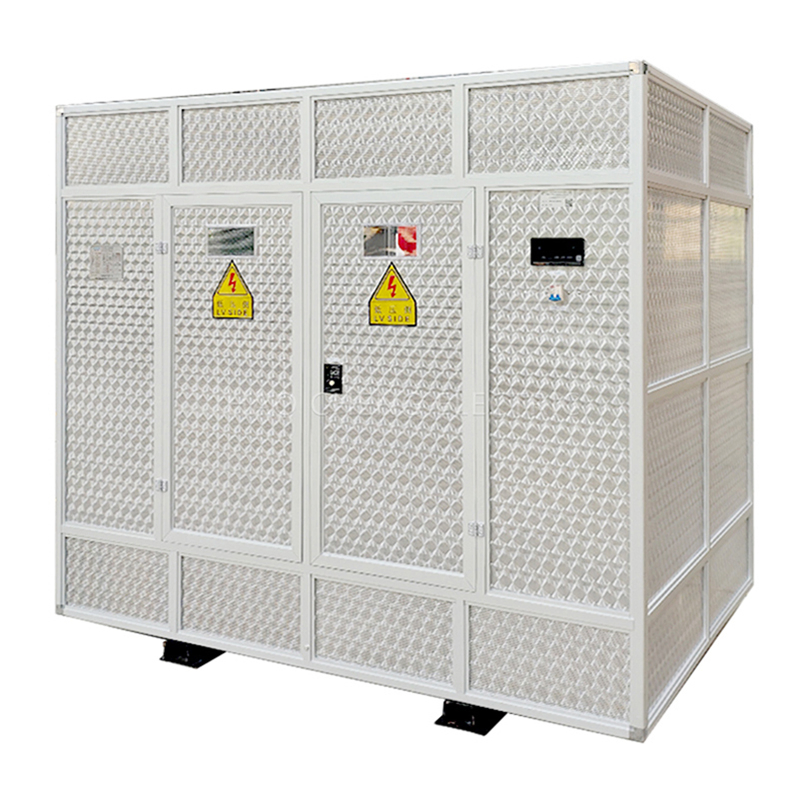

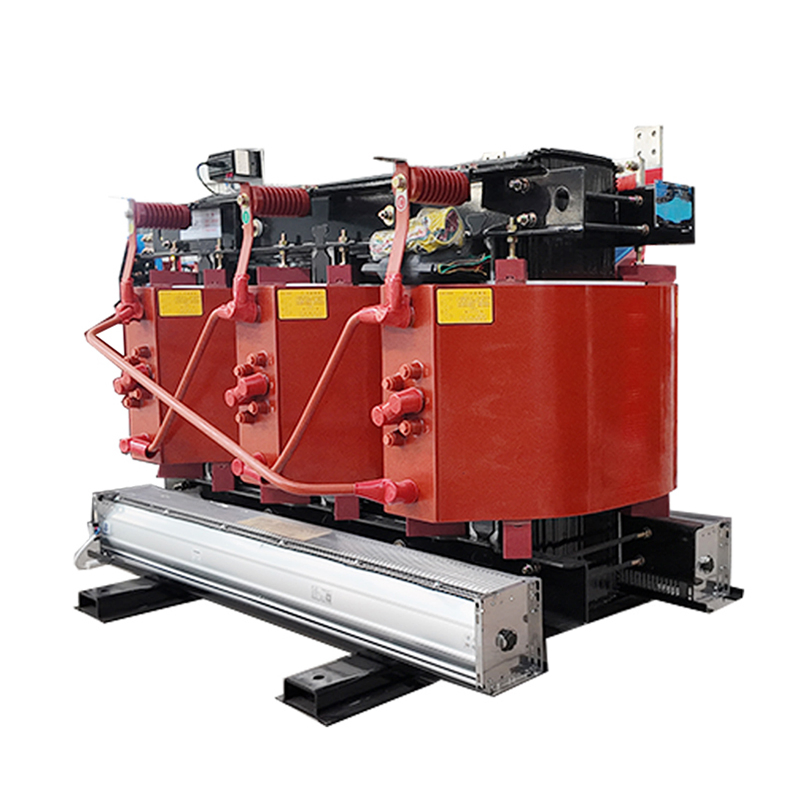

High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
1 / 5
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model
High Voltage Epoxy Resin Dry Power Transformer Scb10 Model

High Voltage Epoxy Resin Dry Power Transformer Scb10 Model

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SCB10, SCB11
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001, CCC
Usage
Power/Distribution Transformer
Frequency
Power Frequency
Insulation Level
As per IEC Standard
Production Grade
IP20 and IP30
Rated Capacity
500~2500kVA
Vector Group
Dyn11, Yyn0
Voltage
10kv / 0.4kv
⚡ Product Description
Dry Power Transformer

Dry type transformer (also called as epoxy resin transformer) applies epoxy resin cast process instead of immersing iron core and windings in insulation oil. Without using insulation oil, dry-type transformer is fireproof and explosion-proof, easy to maintain and has high reliability, low partial discharge, and long operation life.

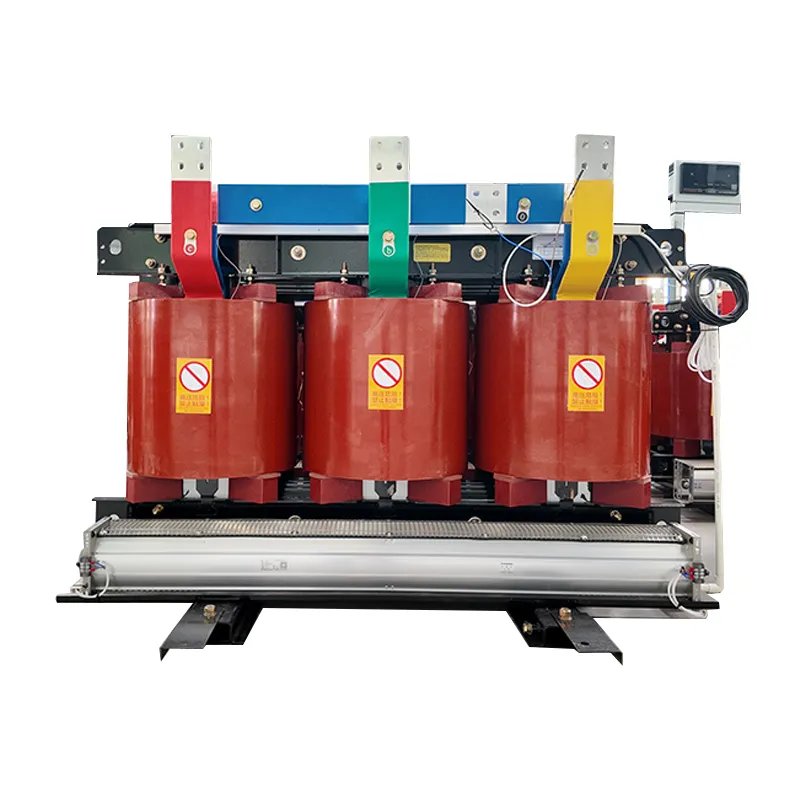

Epoxy Resin Transformer
🛡️
Environmental Protection & Safety
Eco-friendly operation with no risks of leakage or fire. Suitable for hospitals, schools, and commercial complexes. Low noise design and efficient cooling minimize environmental impact.
📉
Energy Efficiency
Premium core materials and optimized design reduce no-load and load losses. Efficiency levels comply with IEC, GB, and ANSI international standards.
🖥️
Intelligent Monitoring
Equipped with intelligent temperature control and remote monitoring. Features over-temperature alarms and automatic fan control for enhanced safety.
⚙️
Customization Capability
Flexible solutions for voltage ratings (6kV–35kV) and capacities (25kVA to 4000kVA). Tailor-made for industrial distribution or renewable energy.
📸 Detailed Photos

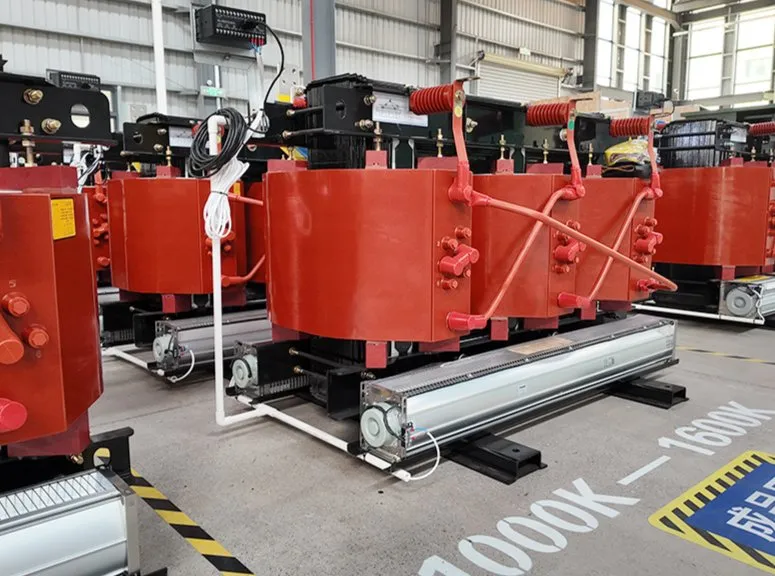

Transformer Detail 1

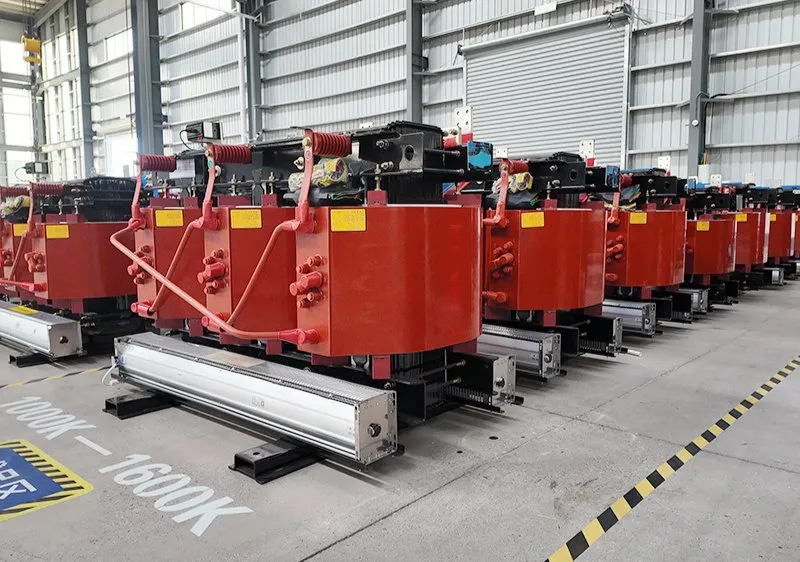

Transformer Detail 2
Transformer Detail 3

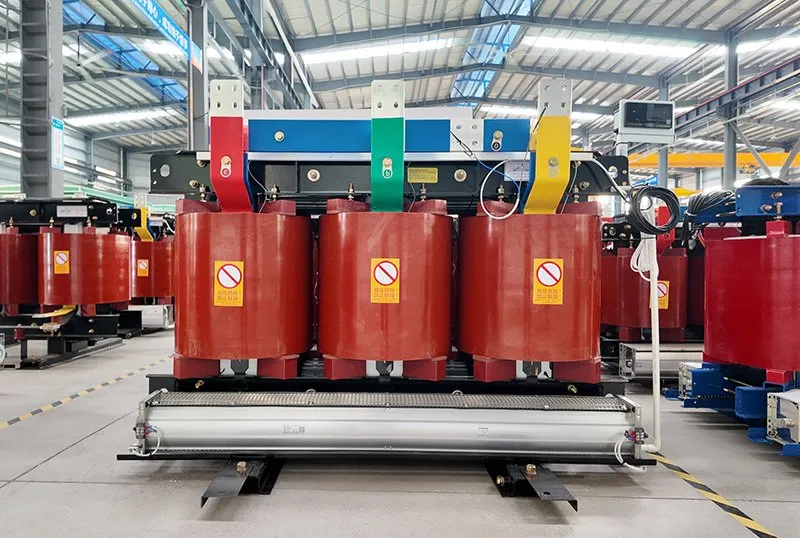

Transformer Detail 4

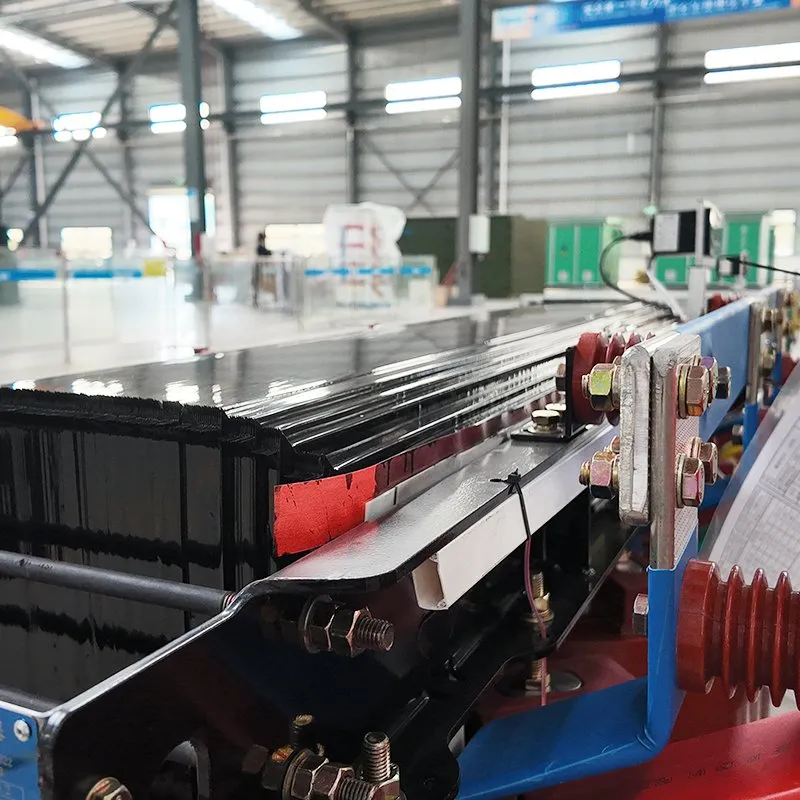

Transformer Detail 5

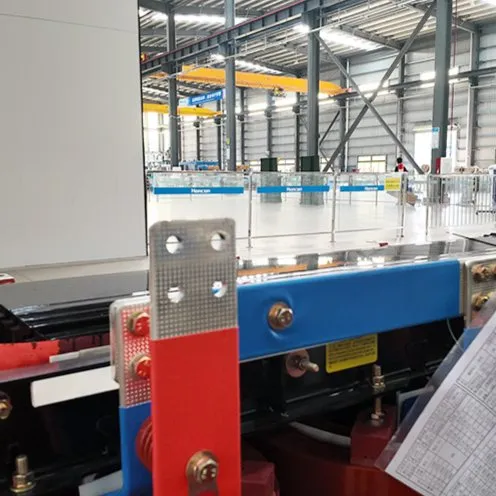

Transformer Detail 6
📊 Technical Specifications
Rated Capacity (kVA) High Voltage (kV) Low Voltage (kV) Vector Group Short Circuit Impedance (%) No-load Loss (W) Load Loss 120℃ (W) Weight (kg)
10010±2×2.5%0.4Dyn114.03201570750
2504.057527601180
5004.093048801680
8006.0121569602280
12506.0167096903180
25006.02880171705920
📦 Packing & Delivery
Package Size
180.00cm * 200.00cm * 165.00cm
Gross Weight
1350.000kg
Package Type
Plywood Case
Packing Details
❓ Frequently Asked Questions
What is the MOQ for an order?
The minimum order quantity is one set.
Is OEM/ODM service available?
Yes, our products can be fully customized according to the client's specific requirements.
How long is the typical delivery time?
It depends on the order quantity, but generally, it takes about 25-30 days after the deposit is received.
Which international markets do you serve?
We regularly supply to markets in the Middle East, Africa, Europe, and Asia.
What is the warranty period for the transformer?
We provide a warranty of one year from the date of sale.
What cooling methods are available?
We offer both AN (Natural Air) and AF (Forced Air) cooling methods depending on the application needs.
