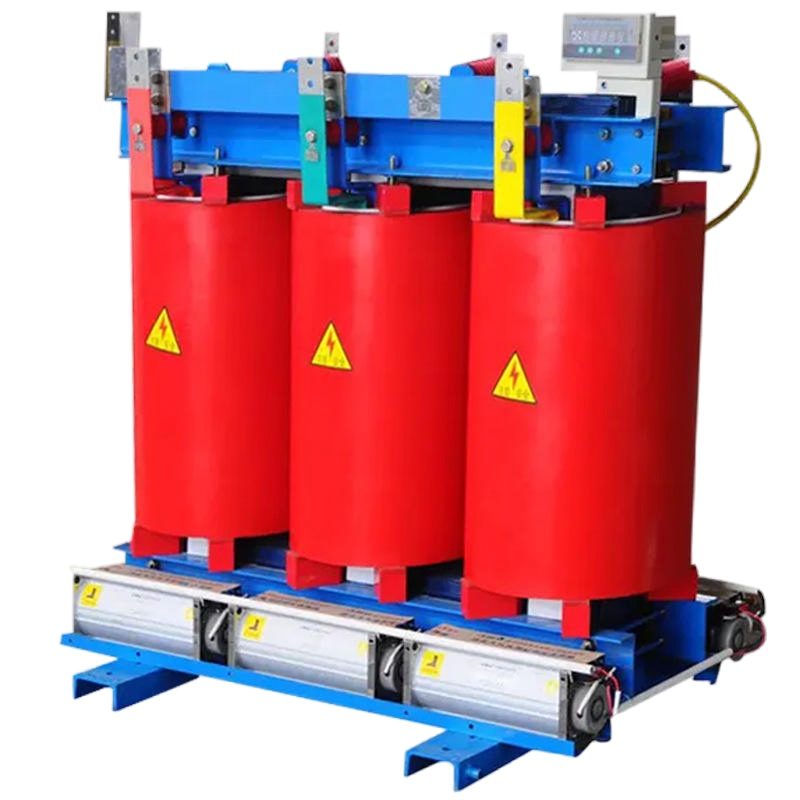

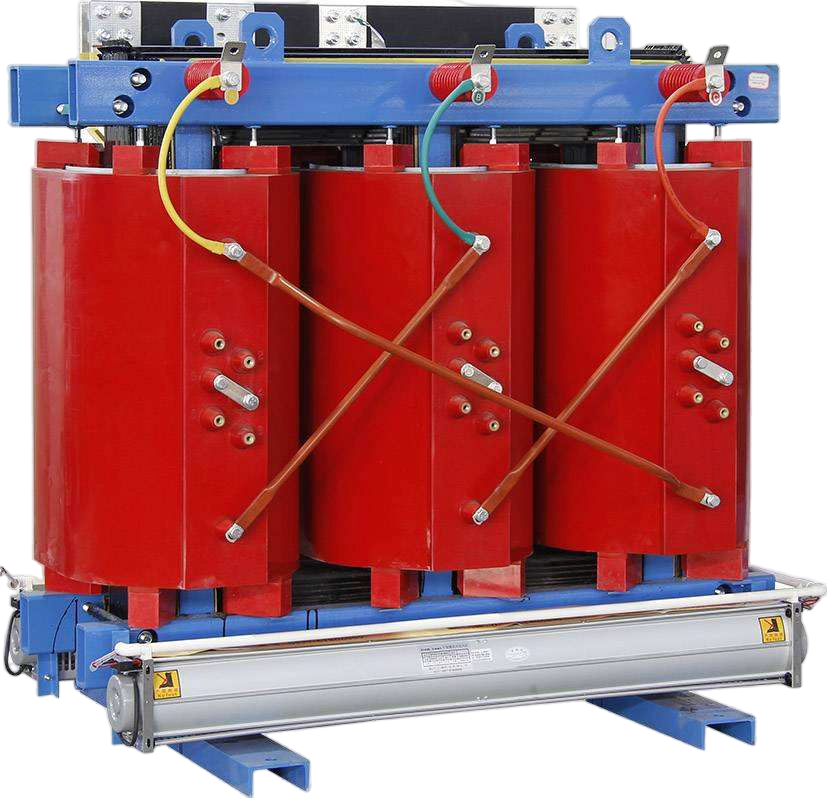

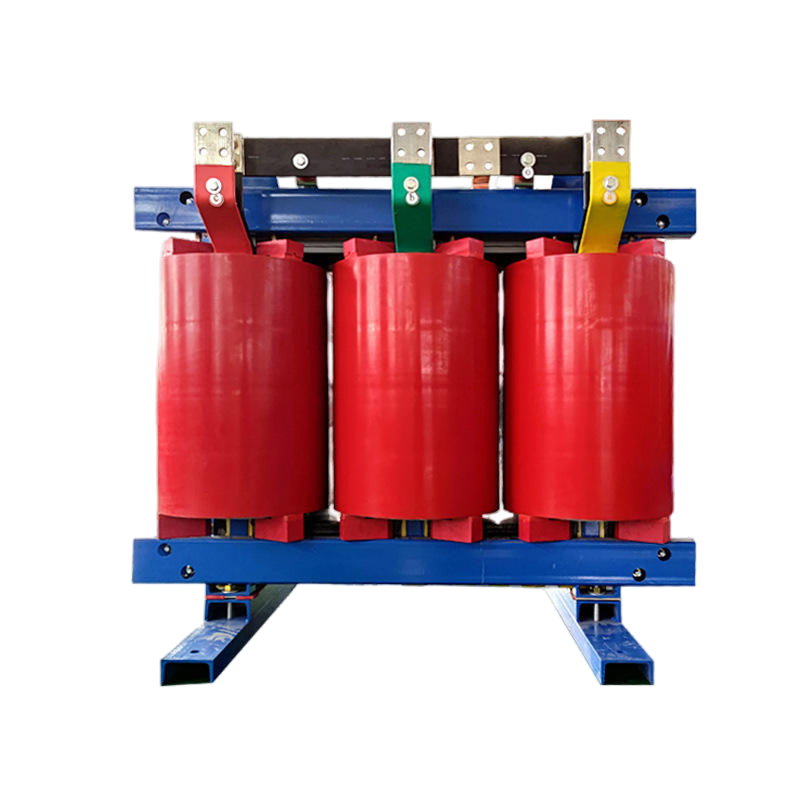

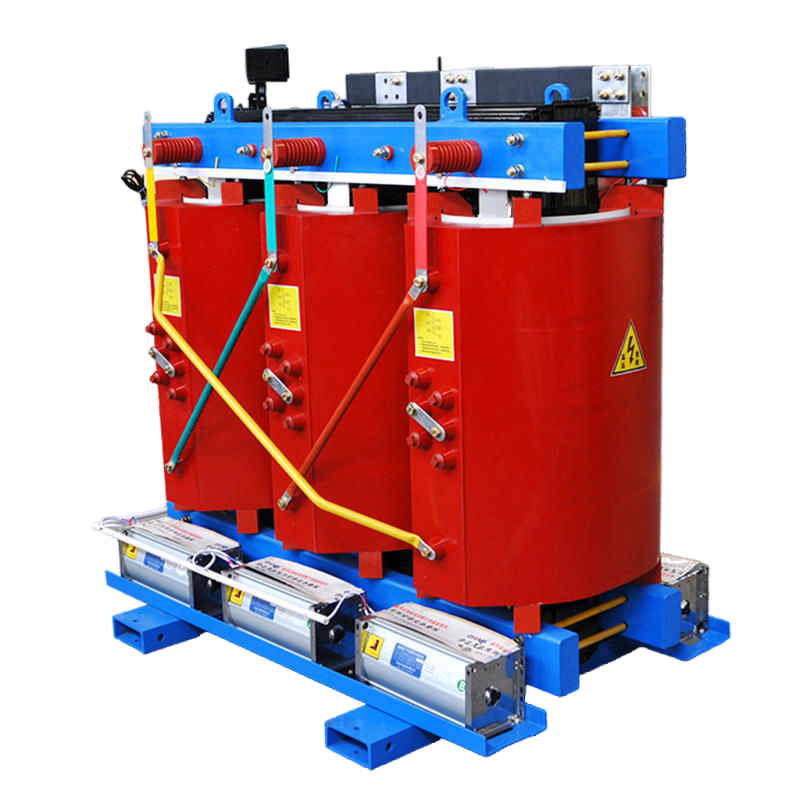

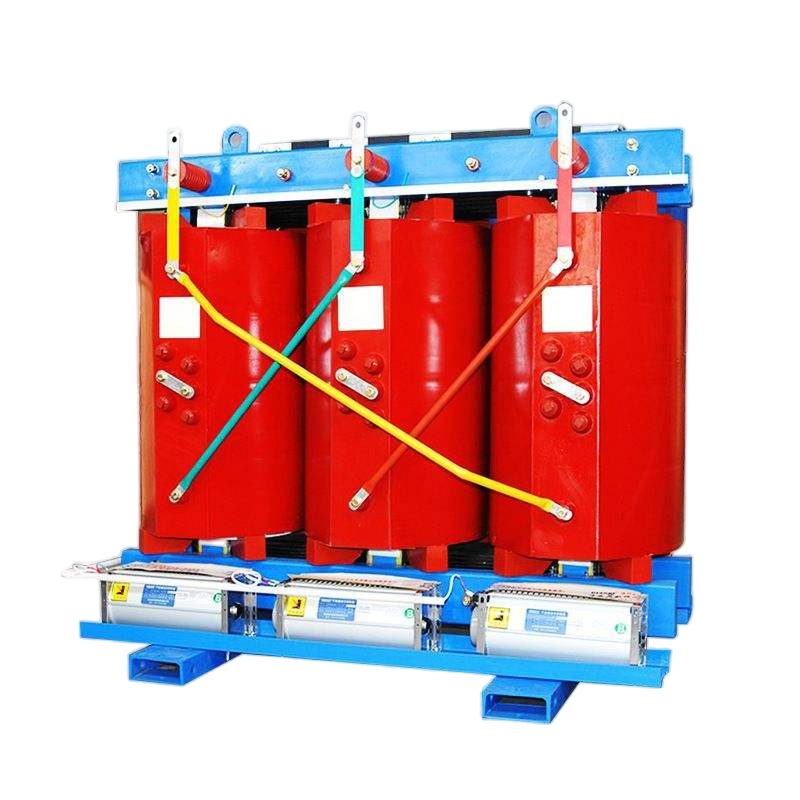

Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
1 / 5
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer
Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer

Deyan Costumed Cast Resin Dry Transformer 315kVA with Three Phase Layer Coil Outdoor Use Dry Type Transformer

Customization: Available
Certification: VDE, CCC, ISO9001
Shell Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Information
Model NO.
DY-SCB-C20
Voltage Level
Medium Voltage
Installation
Fixed / Floor Standing
Structure
Transformer
Current
AC
Product Name
Power Switchgear
Rated Current
≤2500A
IP Level
IP65
Rated Voltage
10kv
Material
Cold Rolled Steel
Application
Industrial
Product Description
SCB Dry Type Transformer

The SCB10 is a high-performance, outdoor-rated dry-type distribution transformer designed for safe, reliable, and efficient voltage transformation in a wide range of medium-voltage applications. With a rated capacity of 400kVA and a primary voltage of 10kV, this transformer is engineered for robust performance in exposed outdoor environments, thanks to its durable stainless steel enclosure.

Key Features & Advantages
  • Outdoor Durability: Constructed with a corrosion-resistant stainless steel enclosure (IP54 or higher rating), ensuring long-term performance under harsh weather conditions.
  • Dry-Type Safety: Uses encast resin insulation (epoxy casting), making it fire-resistant, explosion-proof, and environmentally friendly.
  • High Efficiency: Complies with advanced energy efficiency standards (IEC 60076, GB/T 10228), featuring low no-load and load losses.
  • Flexible Configuration: Supports multiple secondary voltage taps (480V, 440V, 380V, 220V, 110V) to match global grid standards.
  • Low Maintenance: Requires minimal maintenance compared to oil-filled transformers, with no need for oil testing.
Technical Specifications
Frequency50 Hz, 60 Hz Input Voltage10 kV, 35 kV
Output Voltage480V, 440V, 400V, 380V, 220V, 110V PhaseThree Phase
Model NumberSCB11 / SCB10 Coil StructureRound Coil / Three Windings
TypeDry Type Transformer Rated Capacity10KVA - 50000KVA
Cooling MethodAN / AF (Air Natural/Forced) MaterialSilicon Steel Sheet
Winding Material100% Copper / Aluminum Insulation ClassF or H Class
Detailed Photos
Transformer View 1

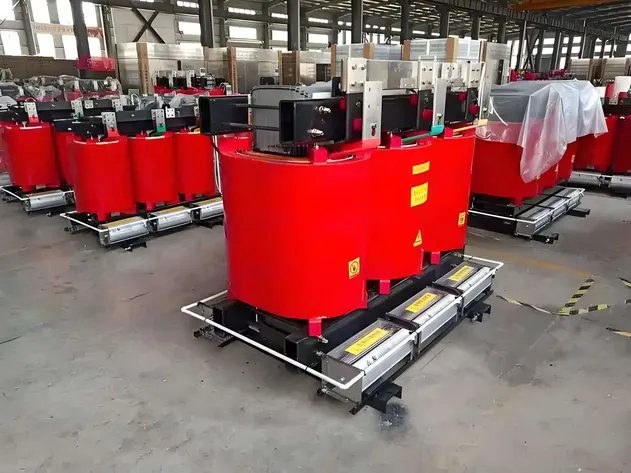

Transformer View 2

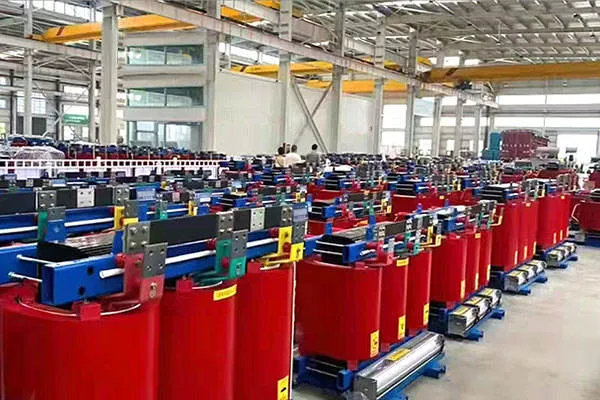

Transformer View 3

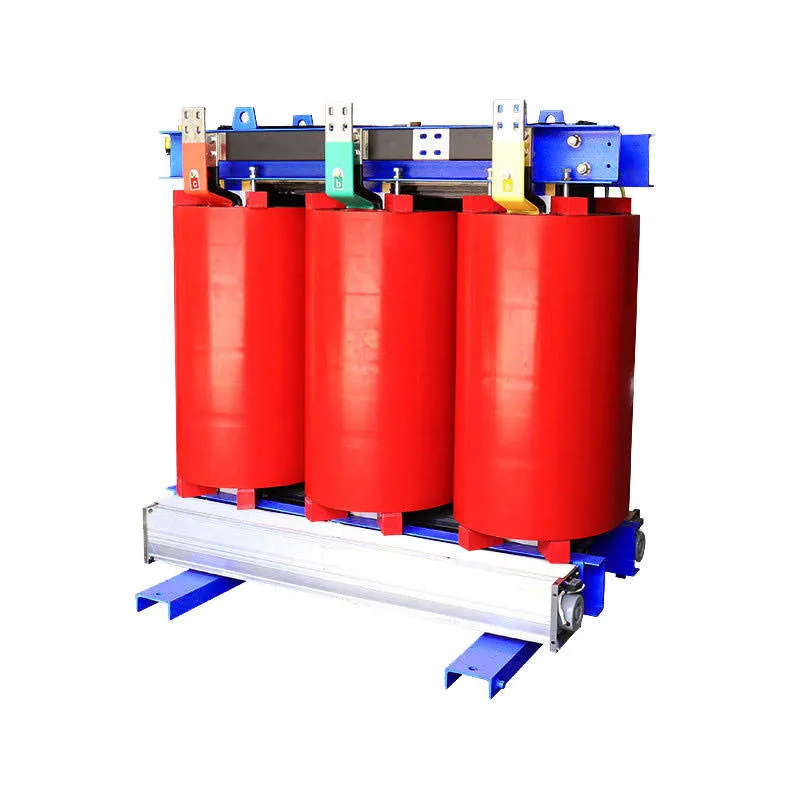

Detailed View 1

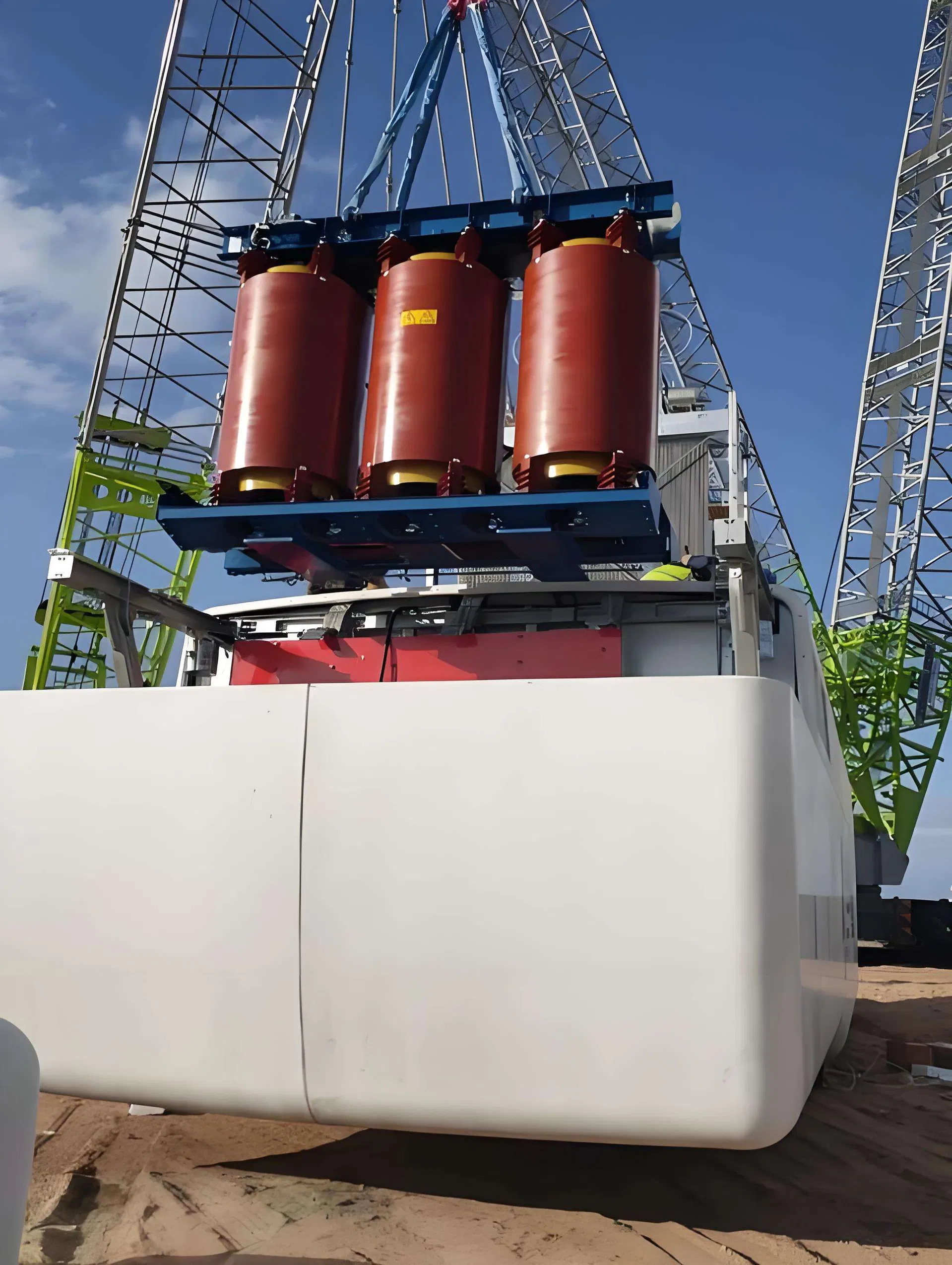

Detailed View 2

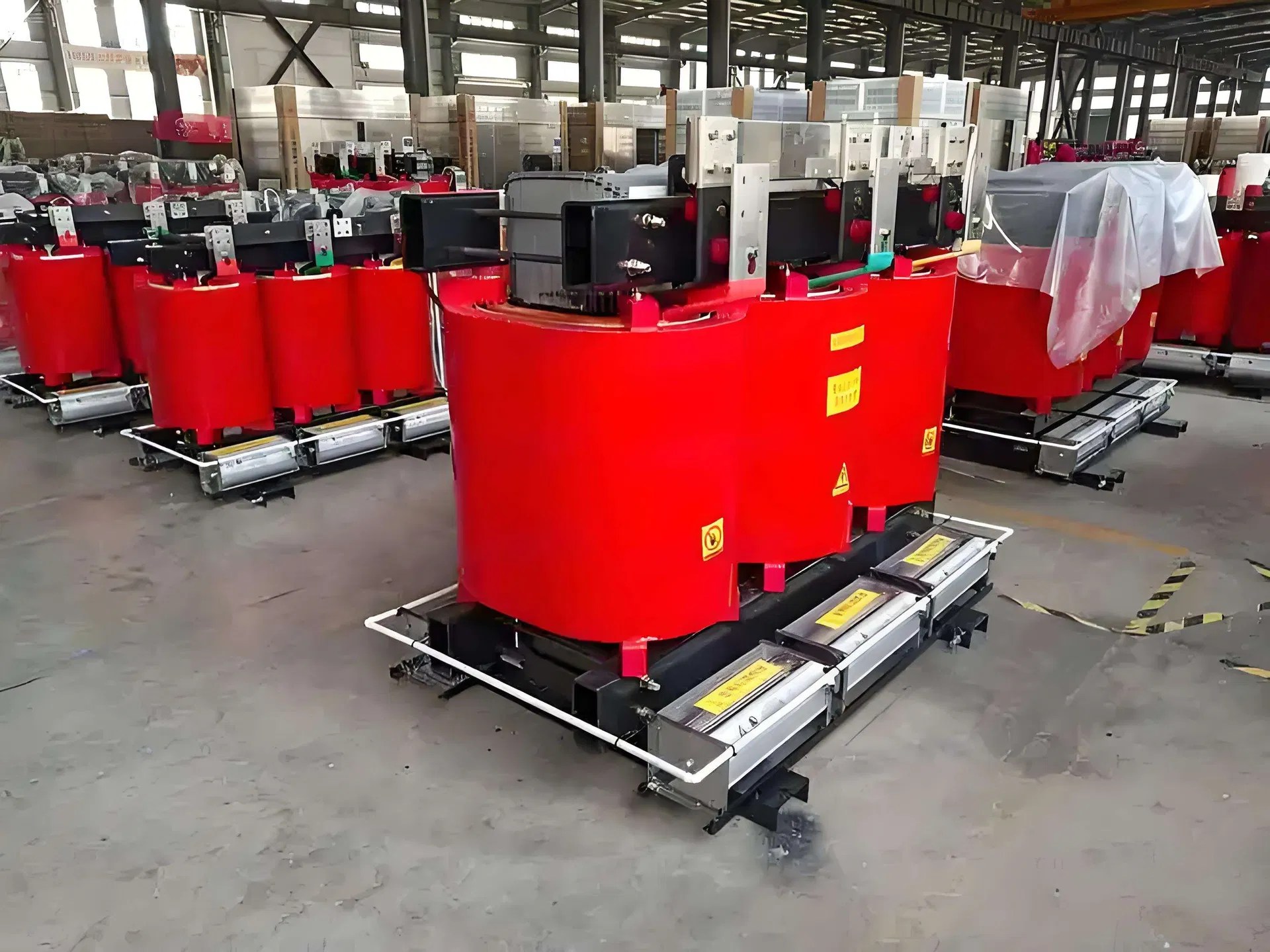

Detailed View 3

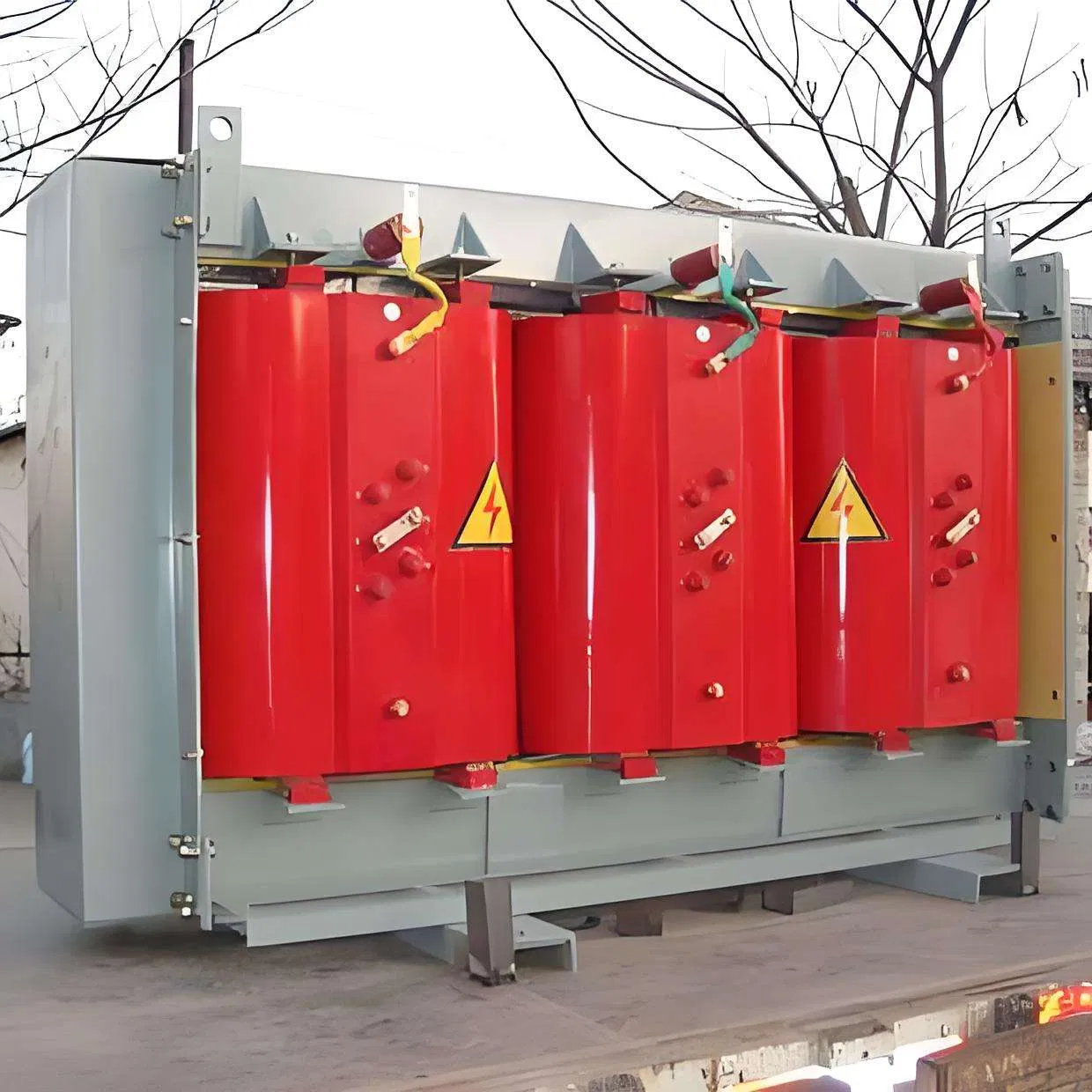

Detailed View 4
Detailed View 5
Workshop & Display

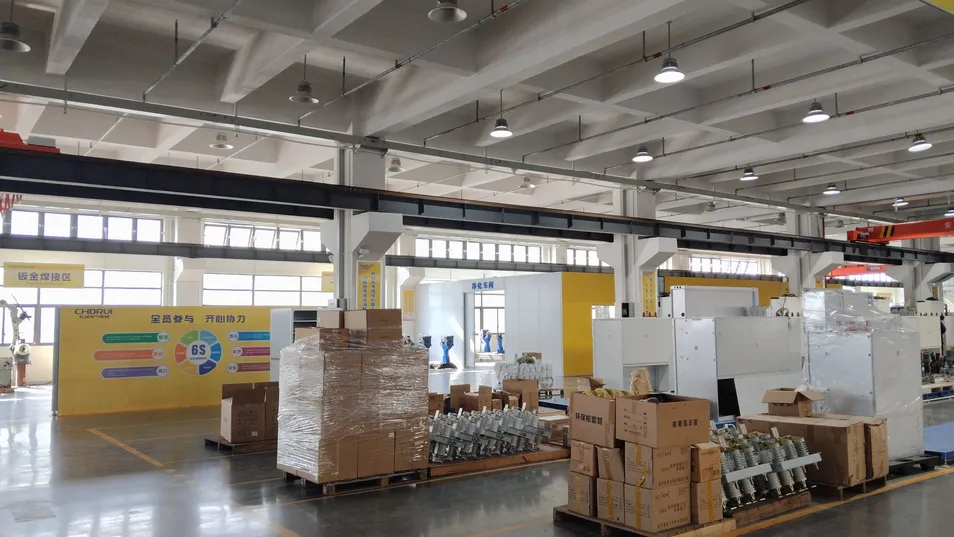

Workshop 1

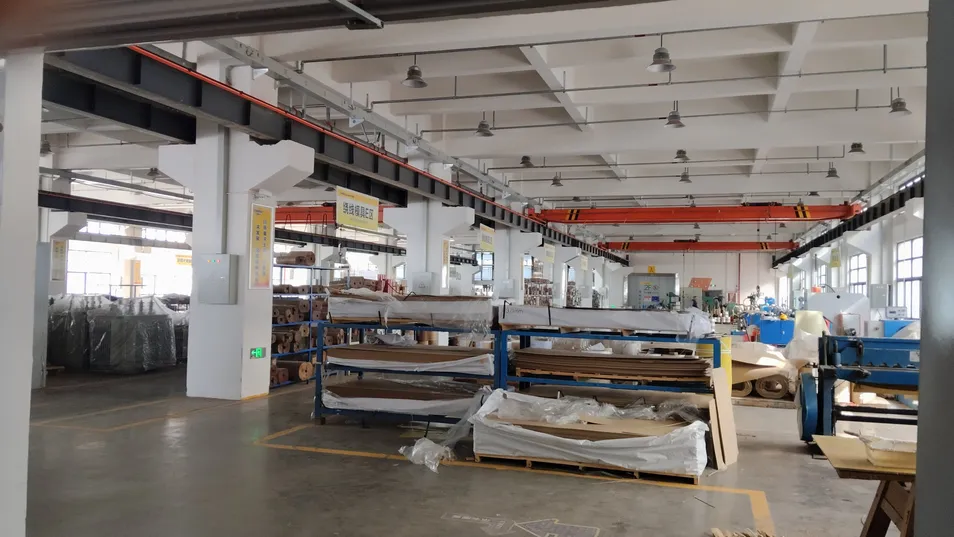

Workshop 2

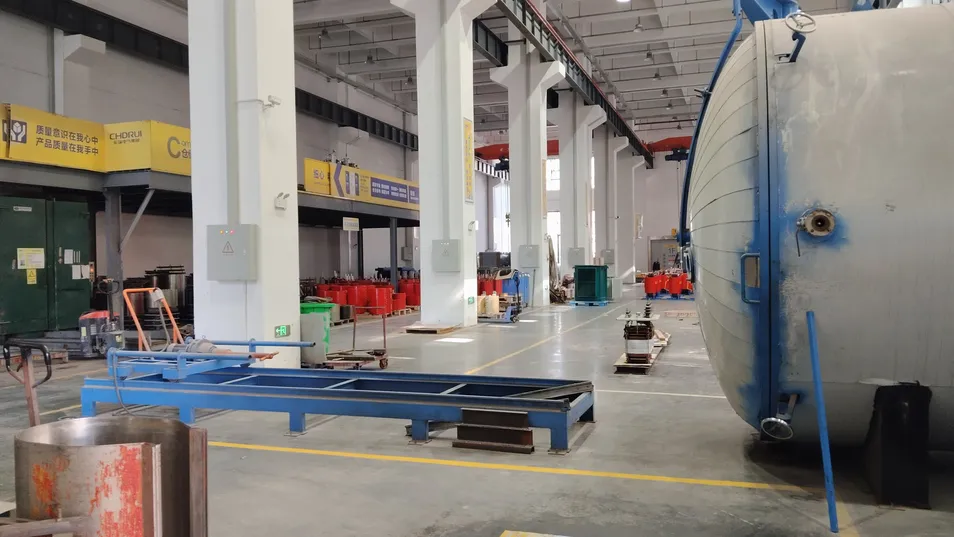

Production Line 1

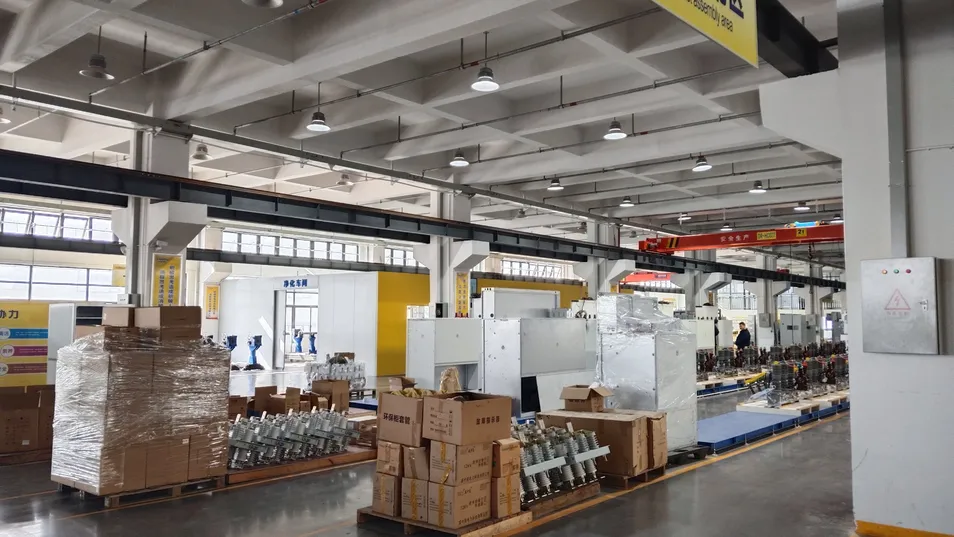

Production Line 2

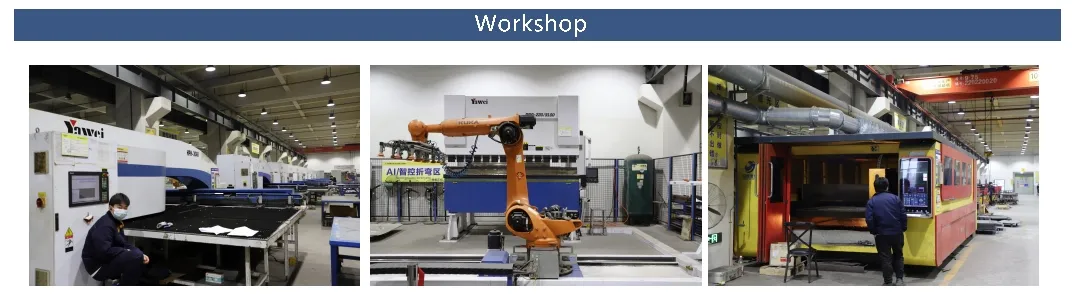

Quality Control
Frequently Asked Questions
Q1. Can you customize the transformer according to our requirements?
A: Yes, we provide full customization based on your technical drawings and specific project requirements. Our experienced engineering team can adapt designs to meet various international standards.
Q2. What types of switchgears and transformers are available?
A: We offer a comprehensive range including SF6 switchgear, solid insulated switchgear, ring main units (RMU), and environmentally friendly gas-insulated cabinets, alongside various dry-type transformers.
Q3. How do you ensure safe international transportation?
A: Products are housed in high-strength shells to ensure structural integrity. For shipping, we utilize professional-grade smoked wooden boxes that provide superior protection against impact and moisture.
Q4. What is the standard warranty and technical support?
A: We provide a comprehensive warranty along with English operation manuals and detailed technical drawings. Professional technical consultation is available throughout the product lifecycle.
Q5. Is the SCB10 transformer suitable for harsh outdoor environments?
A: Yes, it is specifically designed with a weatherproof stainless steel enclosure (IP54/IP55) to withstand rain, snow, dust, and high humidity without requiring additional shelter.
Q6. What are the primary applications for these dry-type transformers?
A: They are ideal for renewable energy sites (solar/wind), industrial facilities, commercial infrastructure like hospitals and data centers, and urban power distribution networks where fire safety is a priority.
