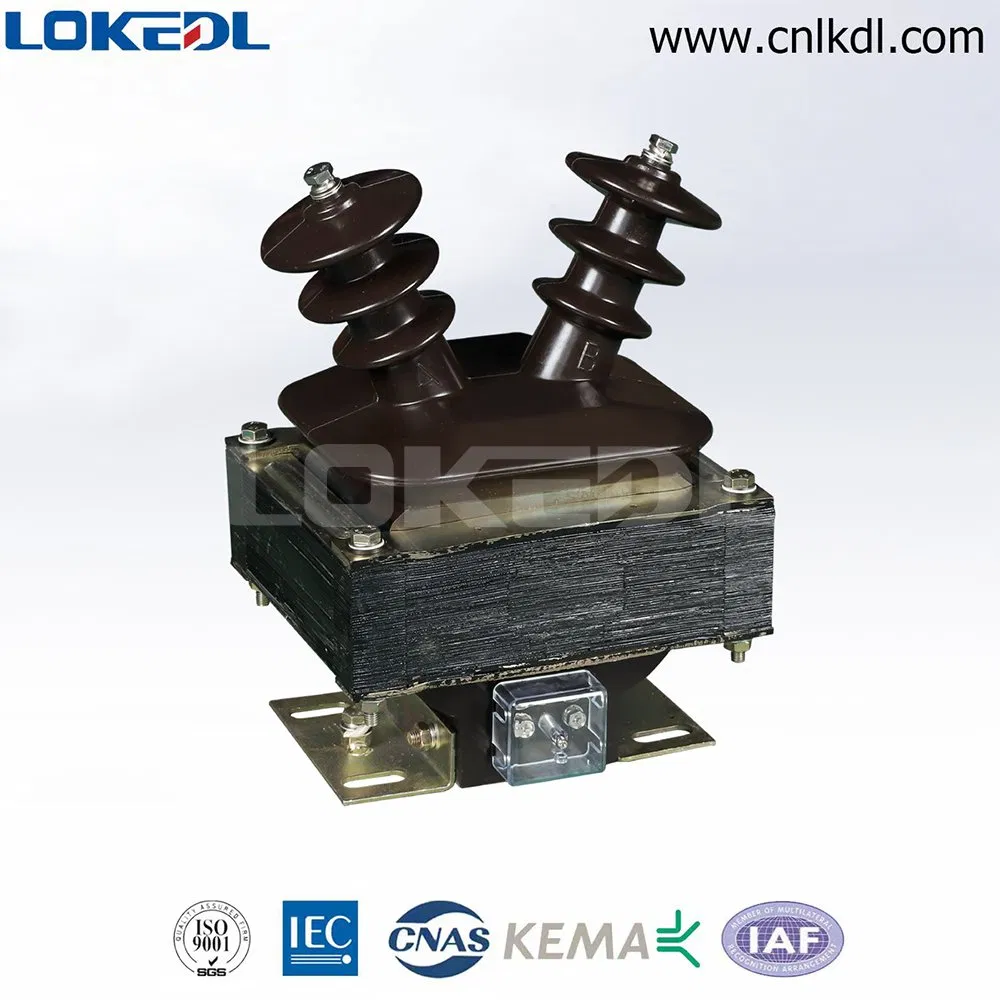

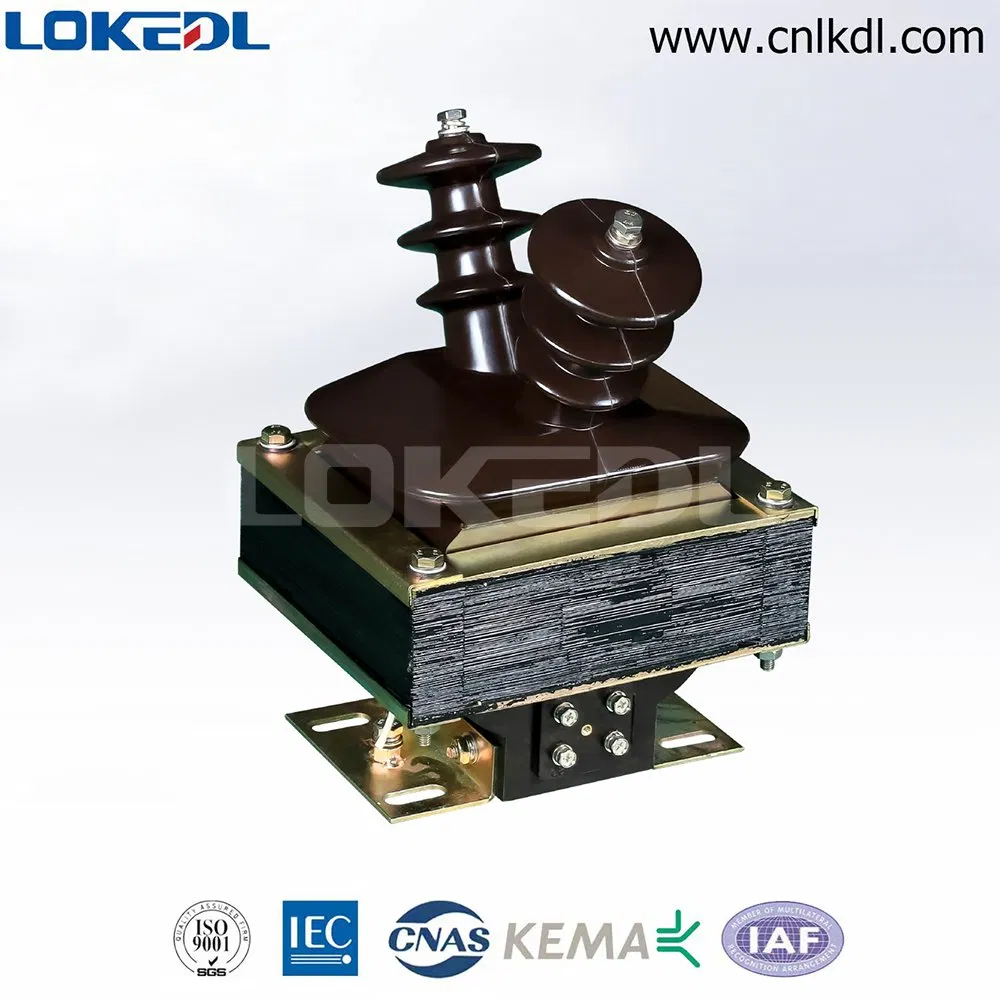

10kv PT 11000/110V Indoor Semi-Closed Epoxy-Resin Casting Type Voltage Transformer

1 / 5

10kv PT 11000/110V Indoor Semi-Closed Epoxy-Resin Casting Type Voltage Transformer

Customization:	Available
Application:	Instrument
Type:	Voltage Transformer

Send Inquiry

Product Description

Basic Information

Model NO.

JDZJ-10

Phase

Single

Operation Condition

Indoor

Usage

Protection, Measurement

Winding Form

Multilayer Honeycomb Type

Insulating Medium

Epoxy Resin

Installation

Busbar Type

Magnetic Circuit

Single Stage Type

Principle

Electromagnetic Type

Dimensions

360*180*260mm

Origin

China

Production Capacity

50,000 piece/Year

Product Description

JDZ10-10 Type Voltage Transformer

Applications: Suitable for power measurement, current monitoring, and relay protection in power systems with a rated frequency of 50Hz or 60Hz and rated voltage of 3~10kV.

Main Characteristic Parameters:

Standard Code: GB20840.3
Voltage Ratio: 11000/110 V
Accuracy Class: 0.5
Rated Frequency: 50 Hz
Polarity: Subtractive Polarity

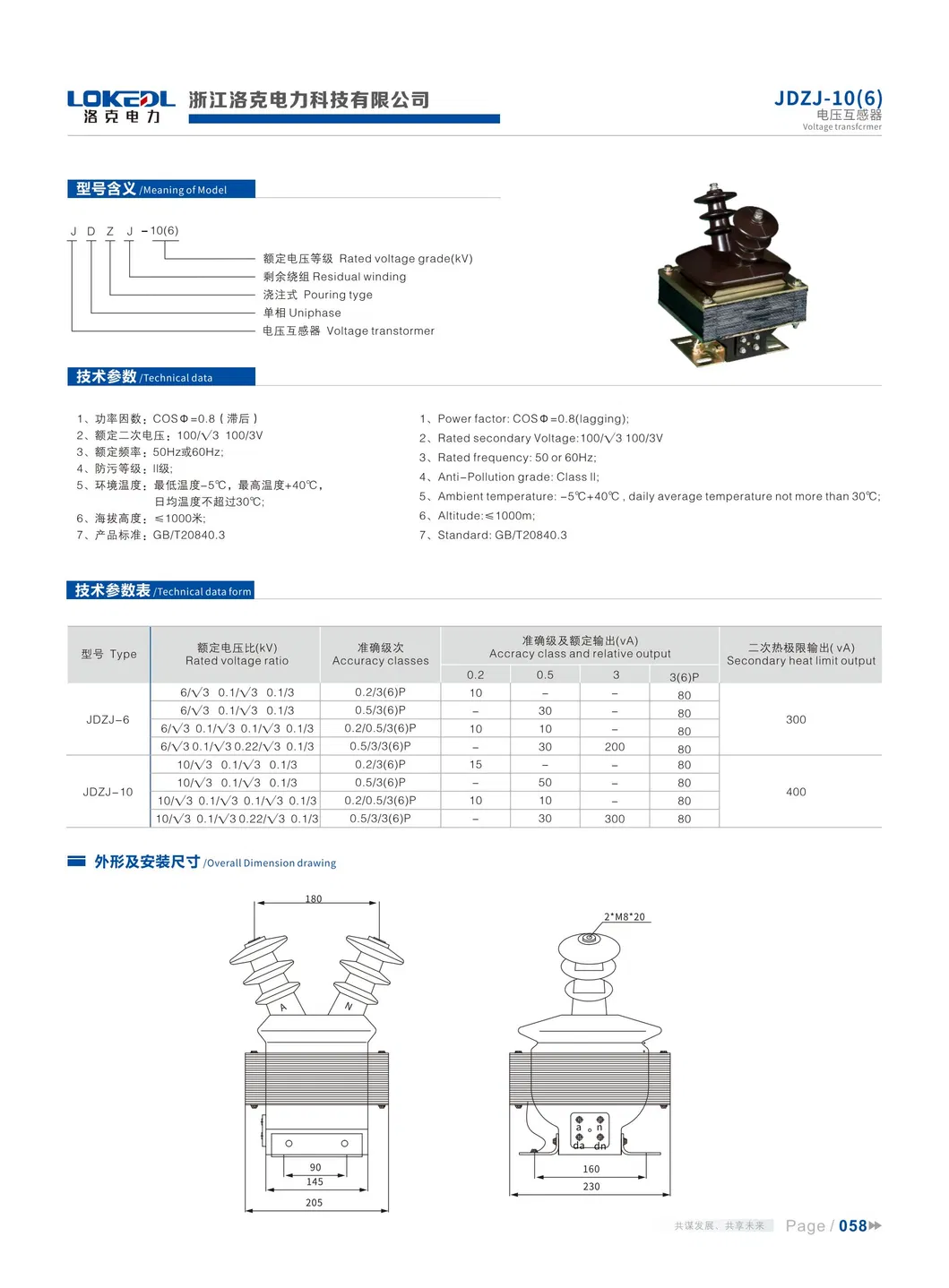

Technical Specification

Type	Rated Voltage Radio (KV)	Accuracy Classes	Accuracy class and relative output (VA)				Thermal Limit Output (VA)
Type	Rated Voltage Radio (KV)	Accuracy Classes	0.2	0.5	3	3(6)P	Thermal Limit Output (VA)
JDZJ-6	6/√3 / 0.1/√3 / 0.1/3	0.5/3(6)P	-	30	-	80	300
JDZJ-10	10/√3 / 0.1/√3 / 0.1/3	0.2/0.5/3(6)P	10	10	-	80	400

Structure and Features

The series PT is a post-type transformer, hermetically sealed by epoxy resin. Key advantages include:

Anti-pollution and anti-damp design.
Easy installation, suitable for tropical areas.
Maintenance-free (except for periodic surface cleaning).
Equipped with a secondary outlet terminal connection box.
Includes earth bolts and six mounting holes at the bottom for secure installation.

Visual Specifications & Applications

Frequently Asked Questions

Why should we choose your products?

We provide high-quality products at competitive prices paired with excellent service. Our core value is centered on customer satisfaction through practical innovation and sincerity.

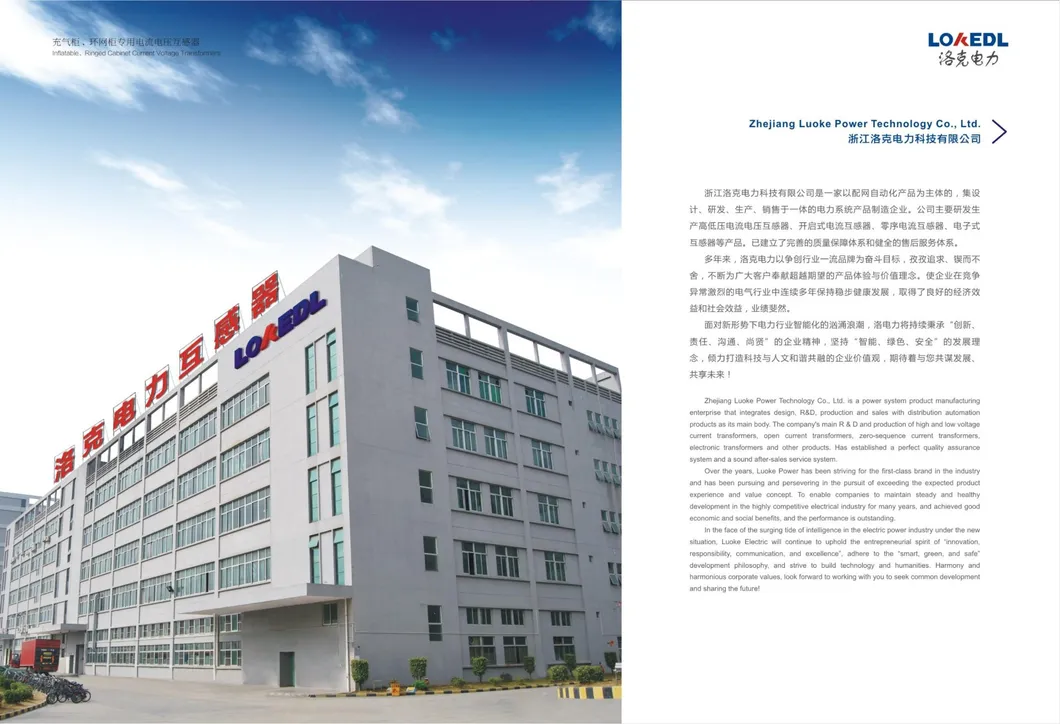

Where is your production facility located?

Our ISO9001 certified factory is located in China. It is easily accessible via high-speed rail (approx. 4 hours from major hubs) or a short 45-minute flight.

Do you offer OEM or ODM services?

Yes, we have full capabilities to provide OEM and ODM services to meet your specific technical requirements.

What are the standard payment terms?

Generally, we accept T/T, L/C, and PayPal. Other payment methods can be discussed based on the order requirements.

What is the expected delivery time?

In-stock items are typically delivered within 3 working days. For custom production, the lead time ranges from 10-20 working days depending on the order quantity.

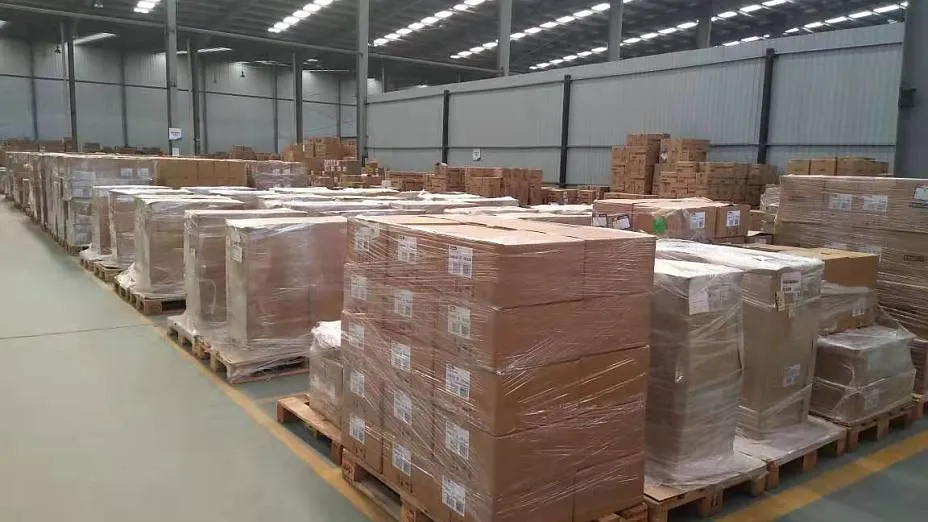

What shipping methods are available?

Small orders are shipped via international express (DHL, FEDEX, TNT, UPS). Large orders are delivered by sea or air according to the buyer's instructions.
