Tanaka Electric
Tanaka Electric

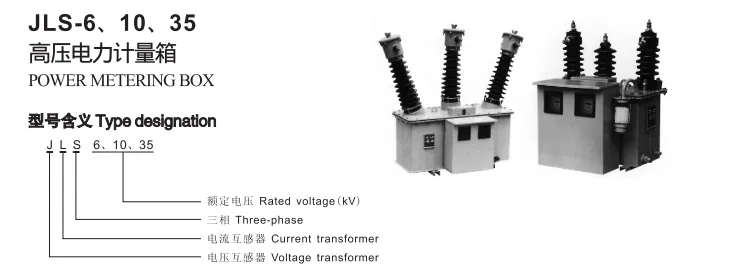

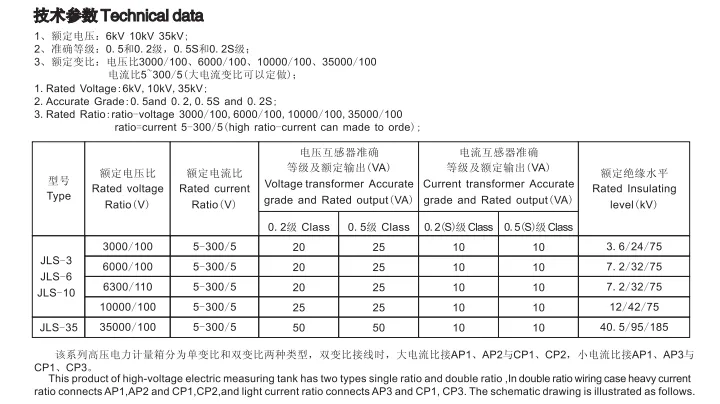

| Model NO. | JLS | Phase | Three |
| Operation Condition | Outdoor | Usage | Protection |
| Winding Form | Single Layer & Tightly Wound Type | Insulating Medium | Insulating Paper |
| Installation | Extension Type | Magnetic Circuit Structure | Combined Type |
| Voltage Transformation Principle | Photoelectric Type | Customize | Yes |
| Material | Resin | Rated Frequency | 50/60Hz |
| Ambient Temperature | -25-40 | Transport Package | Wooden |
| Origin | China | Production Capacity | 5000pieces/Year |

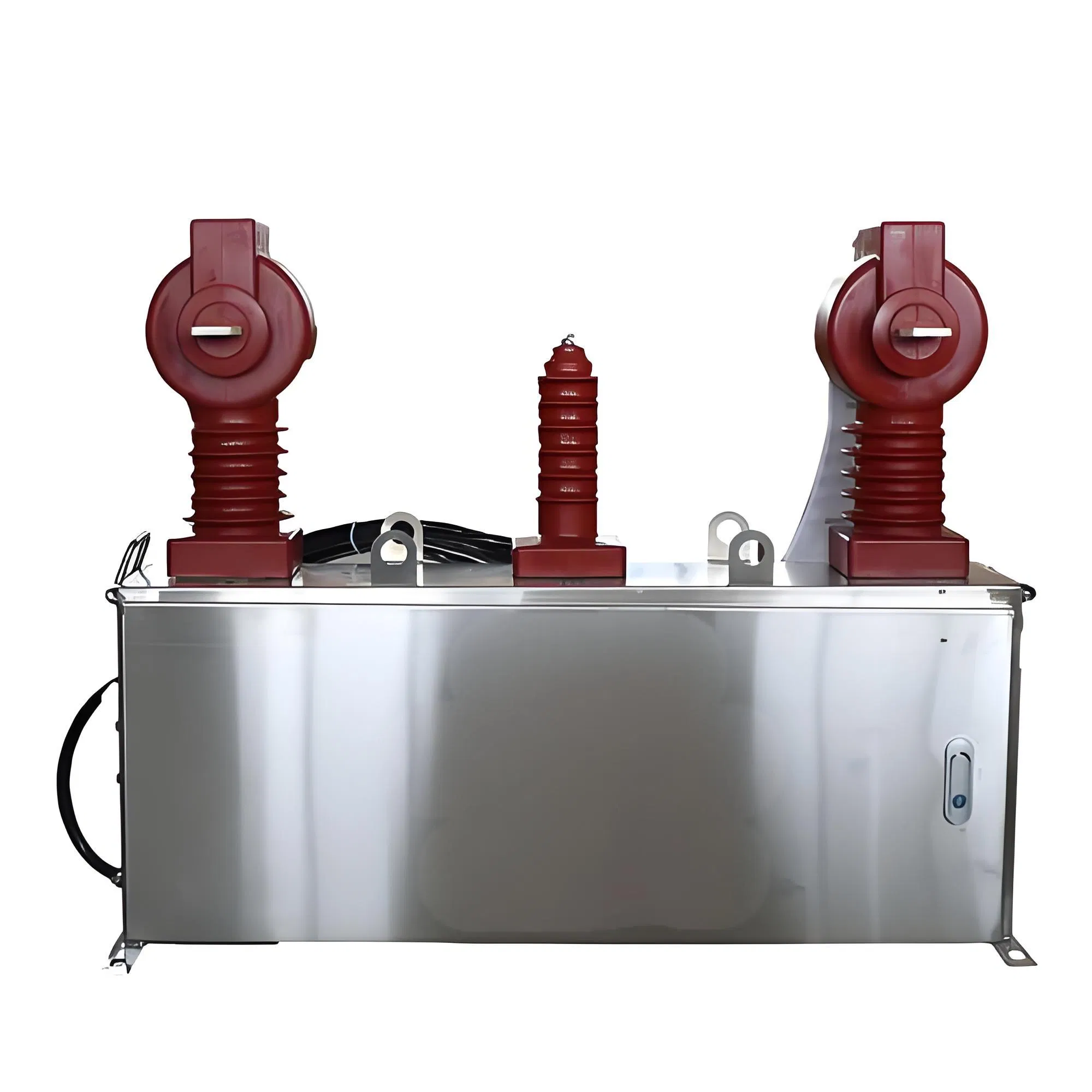

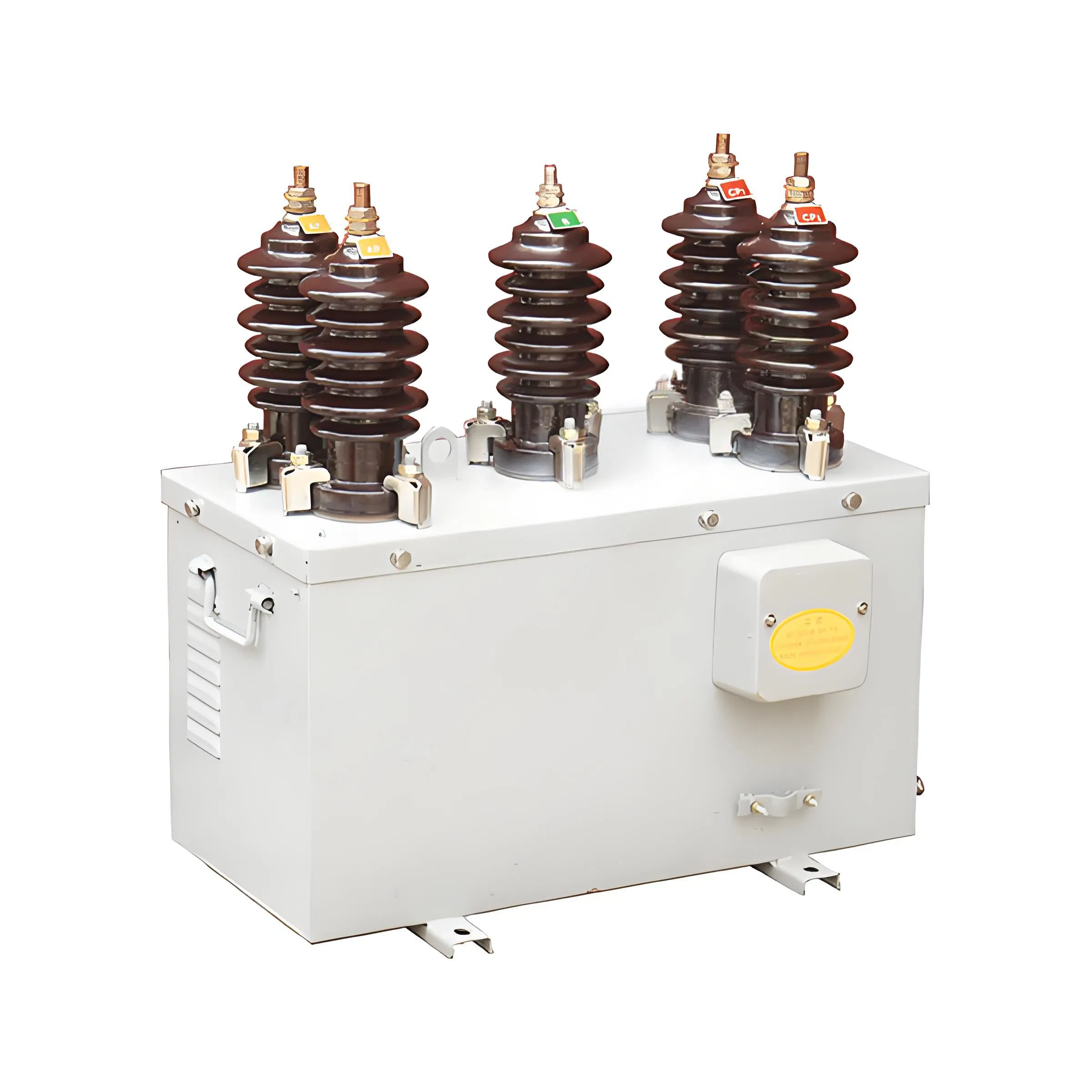

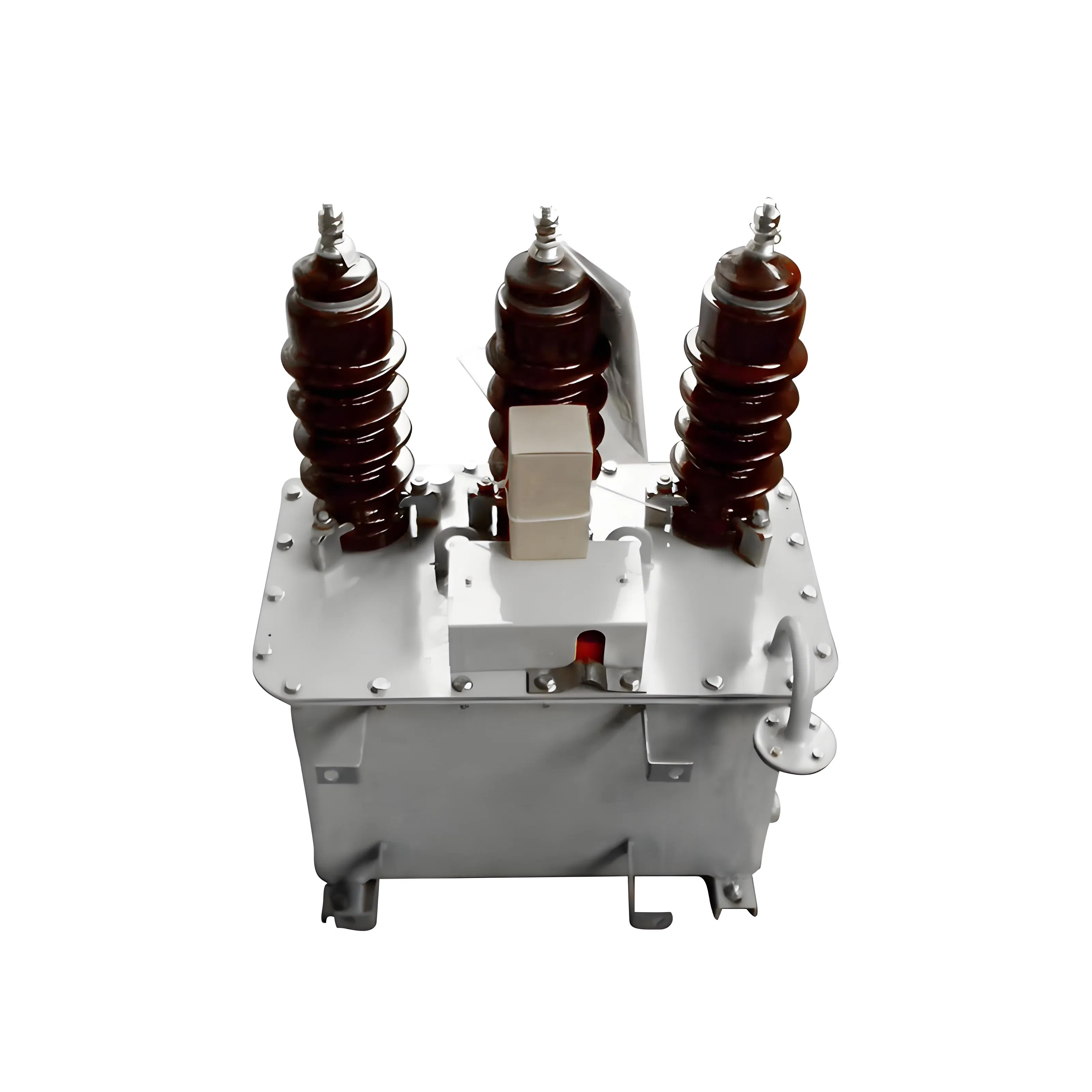

This product is mainly composed of two parts: the combined transformer and the meter box. The combined transformer consists of two or three single-phase voltage transformers and current transformers, using 25# transformer oil as the insulating medium. The first and second outlet ends are installed on the panel with porcelain bushings.
The watt-hour meter box is mounted on the side of the combined transformer and consists of a watt-hour meter and a reactive watt-hour meter. It offers high measuring accuracy, light weight, convenient installation, and anti-theft features. This series is suitable for outdoor rated voltage 6, 10, 35kV, and rated frequency 50Hz three-phase systems.
Specialized in producing, developing, and marketing VOLTAGE TRANSFORMERS, CURRENT TRANSFORMERS, AC CONTACTORS, and distribution products. Established in 1999, the enterprise has passed ISO9001 and CE certification. Our professional technical team provides full design solutions and comprehensive technical support.
