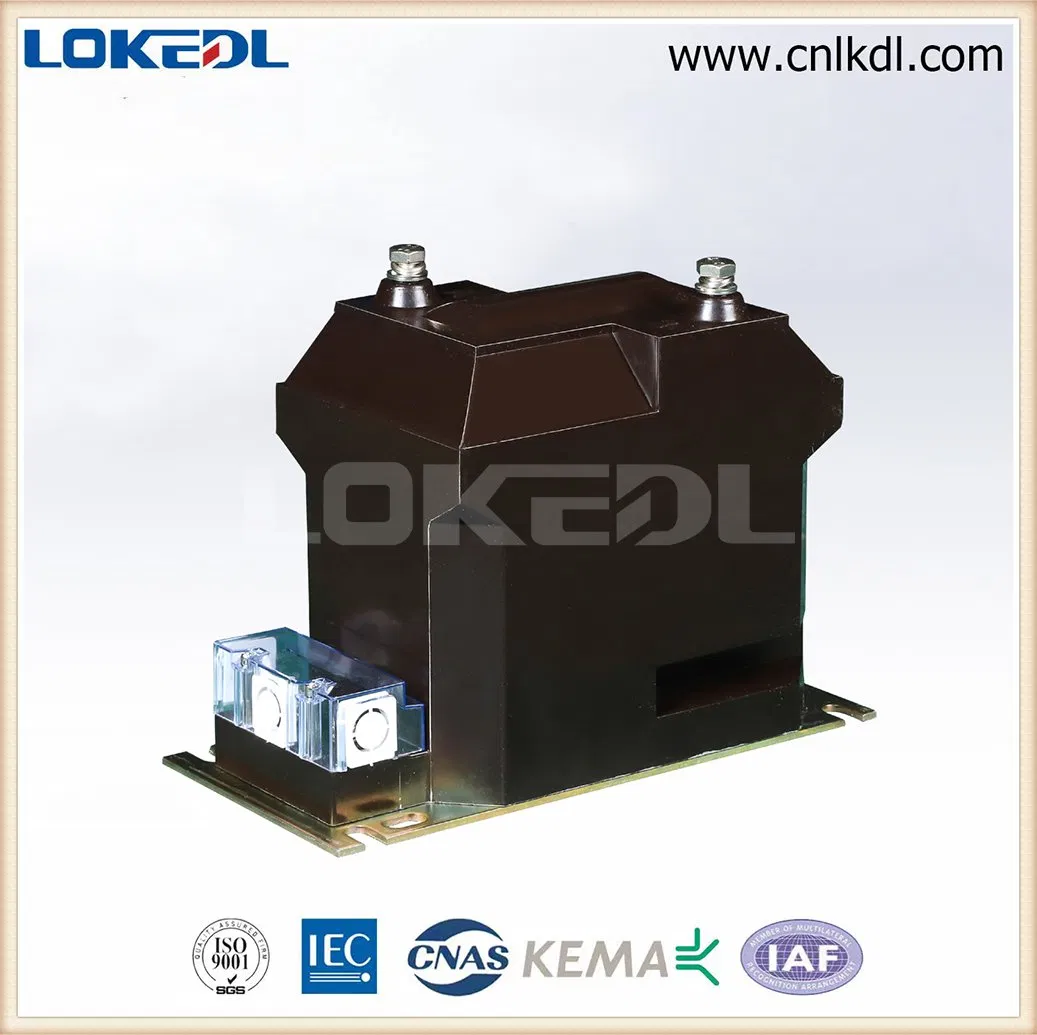

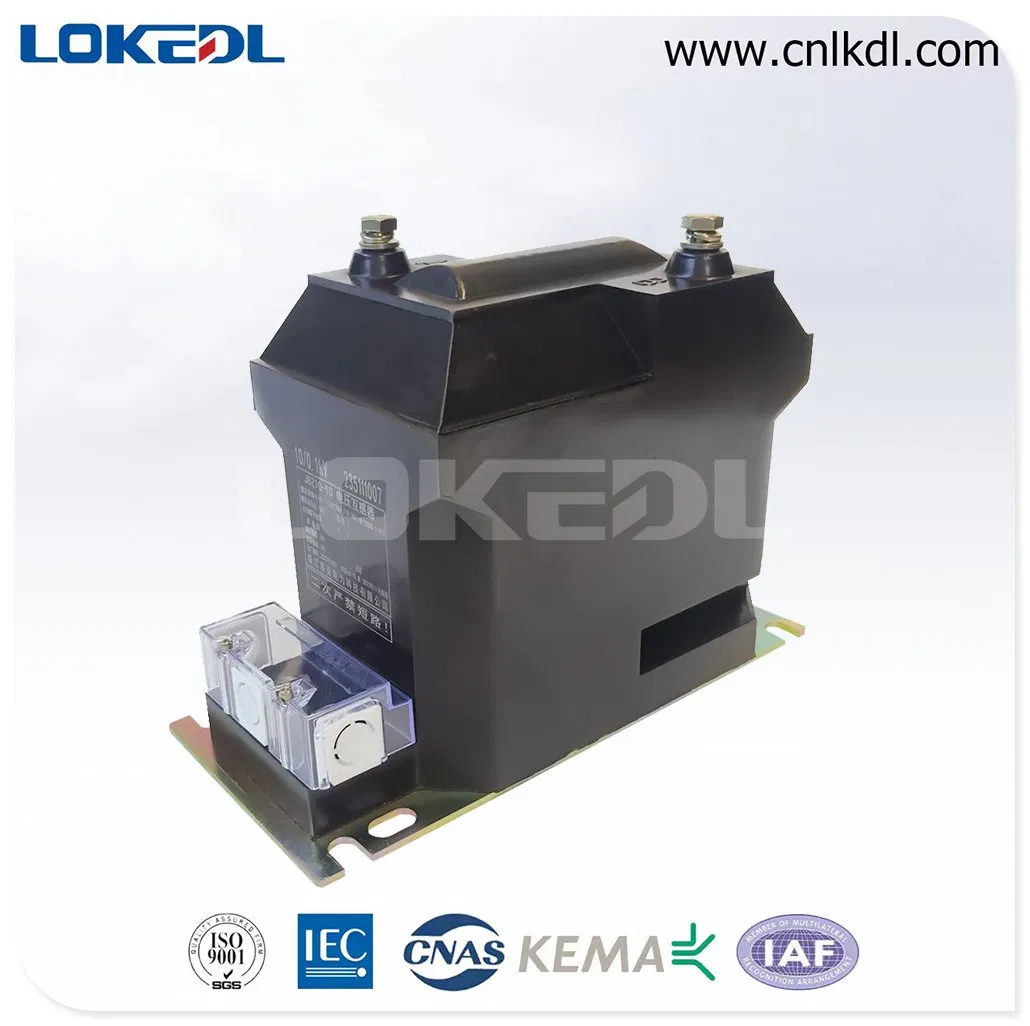

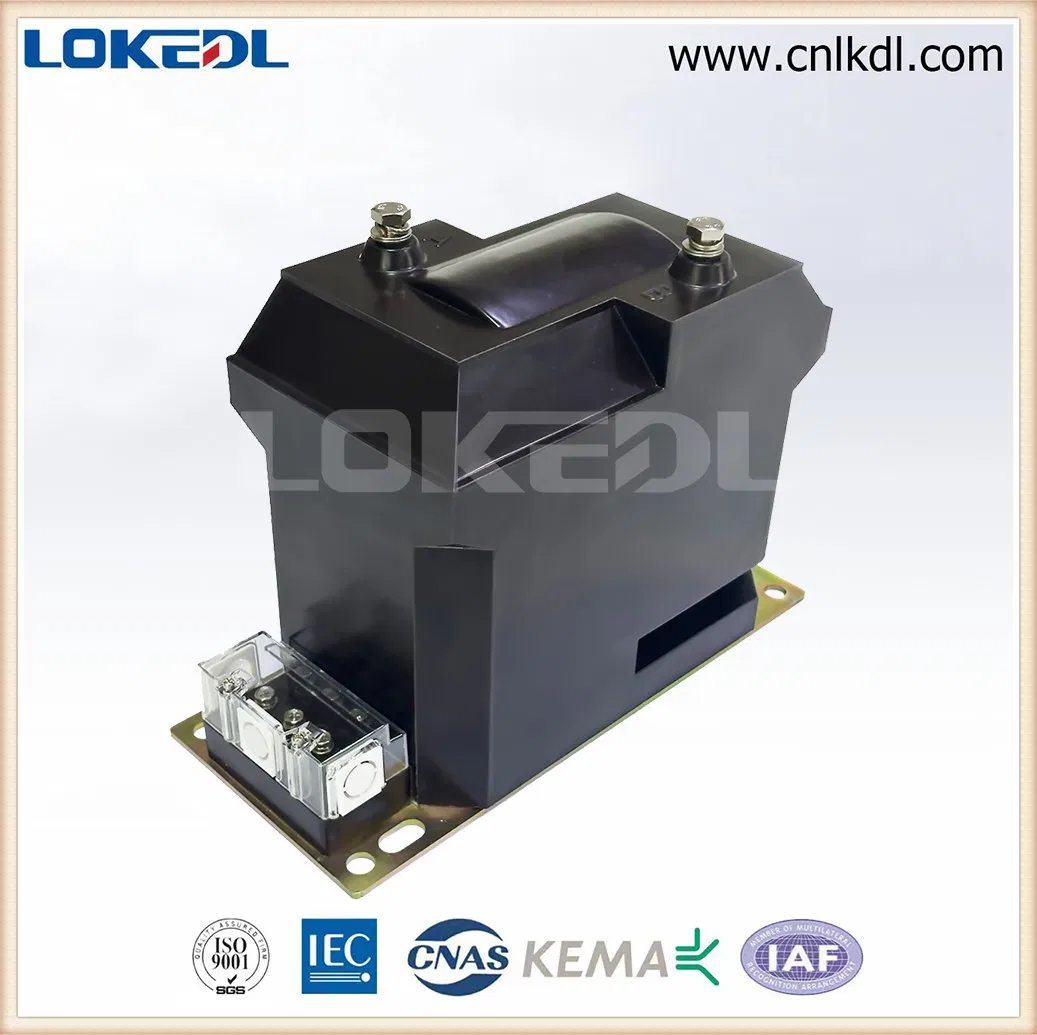

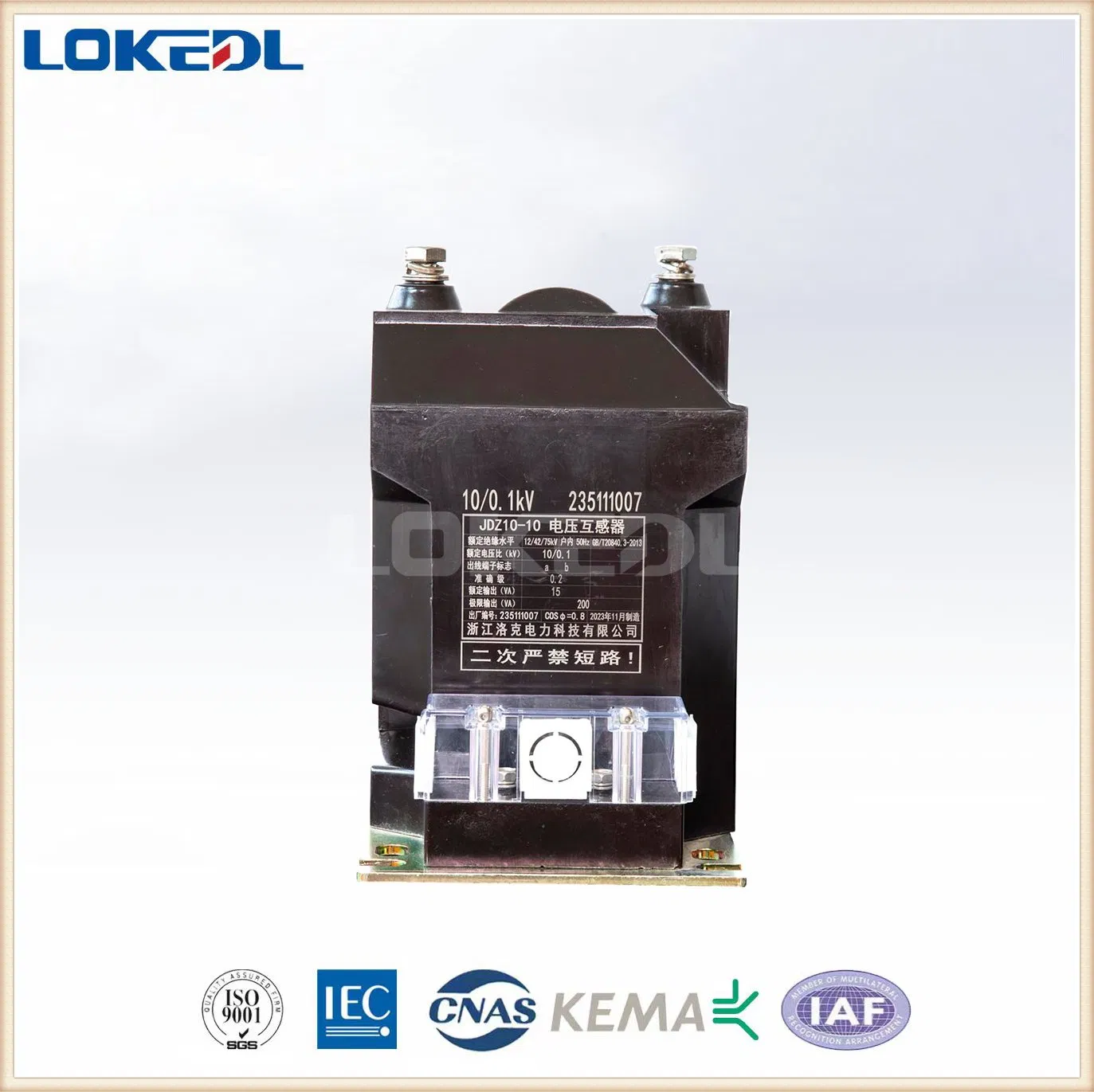

Introducing our high-quality 10KV voltage transformers, engineered to deliver precision, reliability, and cost-efficiency for your power distribution and measurement systems. Designed to meet global standards, these transformers are ideal for utilities, industrial facilities, and renewable energy projects seeking robust performance.
| Type | Rated Voltage Ratio (kV) | Accuracy Class | Output (VA) 0.2 | Output (VA) 0.5 | Output (VA) 3 | Limit Output (VA) |
|---|---|---|---|---|---|---|
| JDZ10-6 | 6/0.1 | 0.2 | 20 | - | - | 400 |
| JDZ10-6 | 6/0.1 | 0.5 | - | 30 | - | 400 |
| JDZ10-10 | 10/0.1 | 0.2 | 30 | - | - | 500 |
| JDZ10-10 | 10/0.1 | 0.5 | - | 30 | - | 500 |
NOTE: Products can be customized to your requirements. The above data is standard.

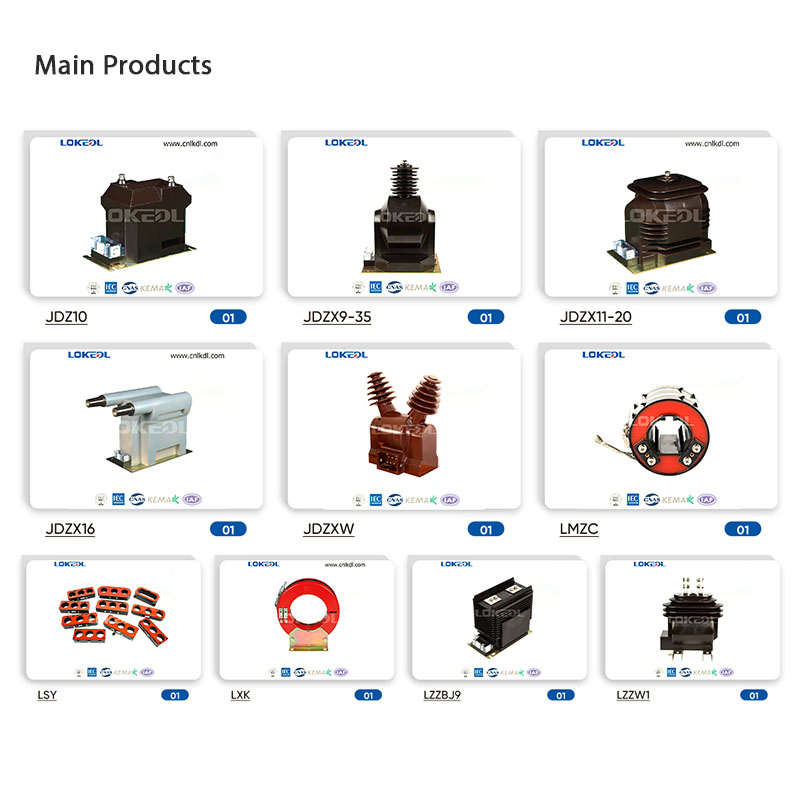

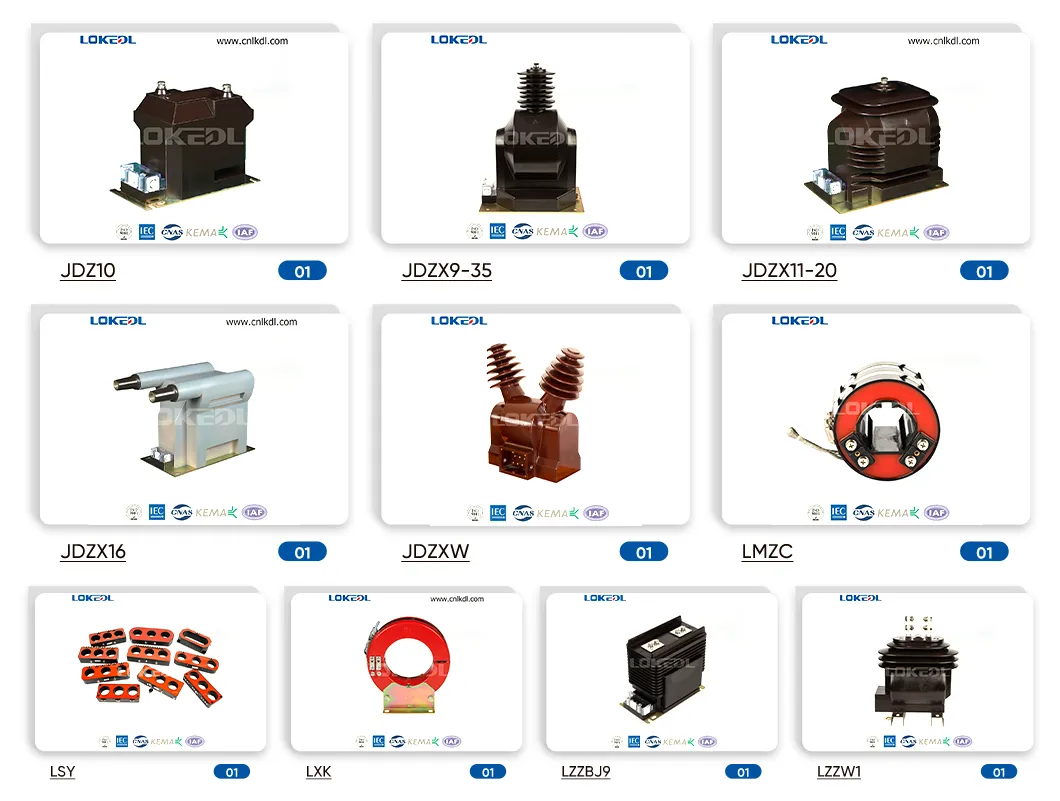

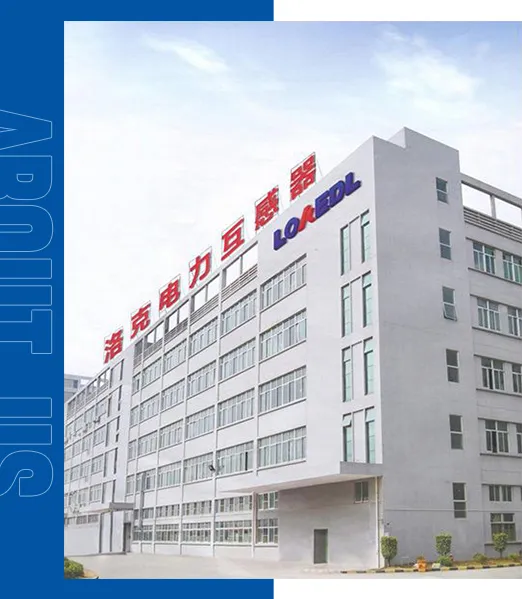

Our predecessor was established in 2010. We are a company with distribution network automation products as the main body, integrating design, research and development, production, and sales of power system products. We mainly produce 10-35kV medium voltage inflatable cabinet special current and voltage transformers, primary and secondary fusion column switch special current and voltage and electronic transformers.
We have passed ISO9001, ISO14001, and ISO45001 systems. Our products have passed national certificates and several national authoritative laboratory type test certificates. With our excellent quality, design, and manufacture, our products are exported to Asia, Europe, Africa, Middle-east and America.

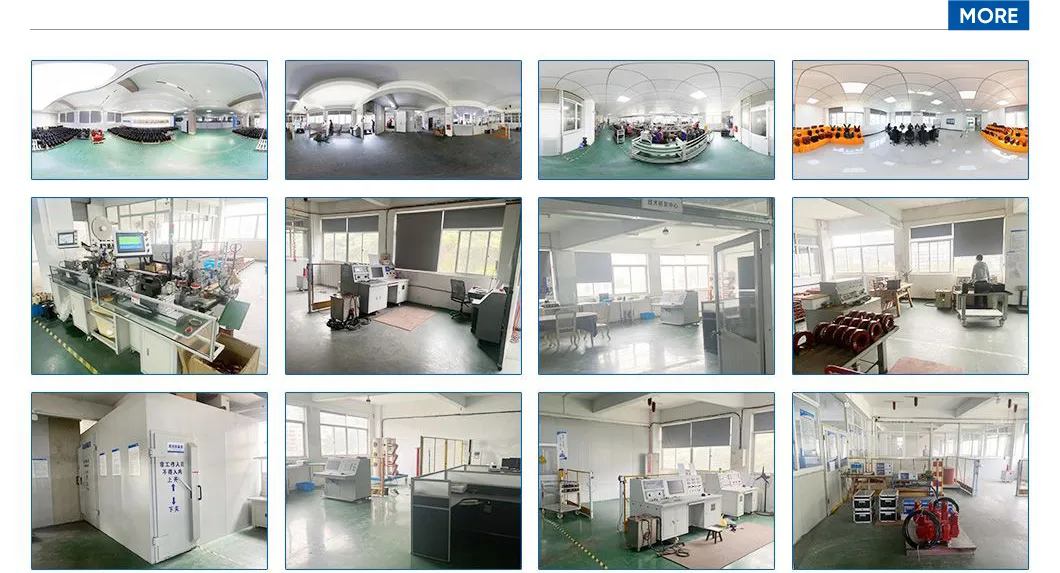

Our workshops and testing rooms:
