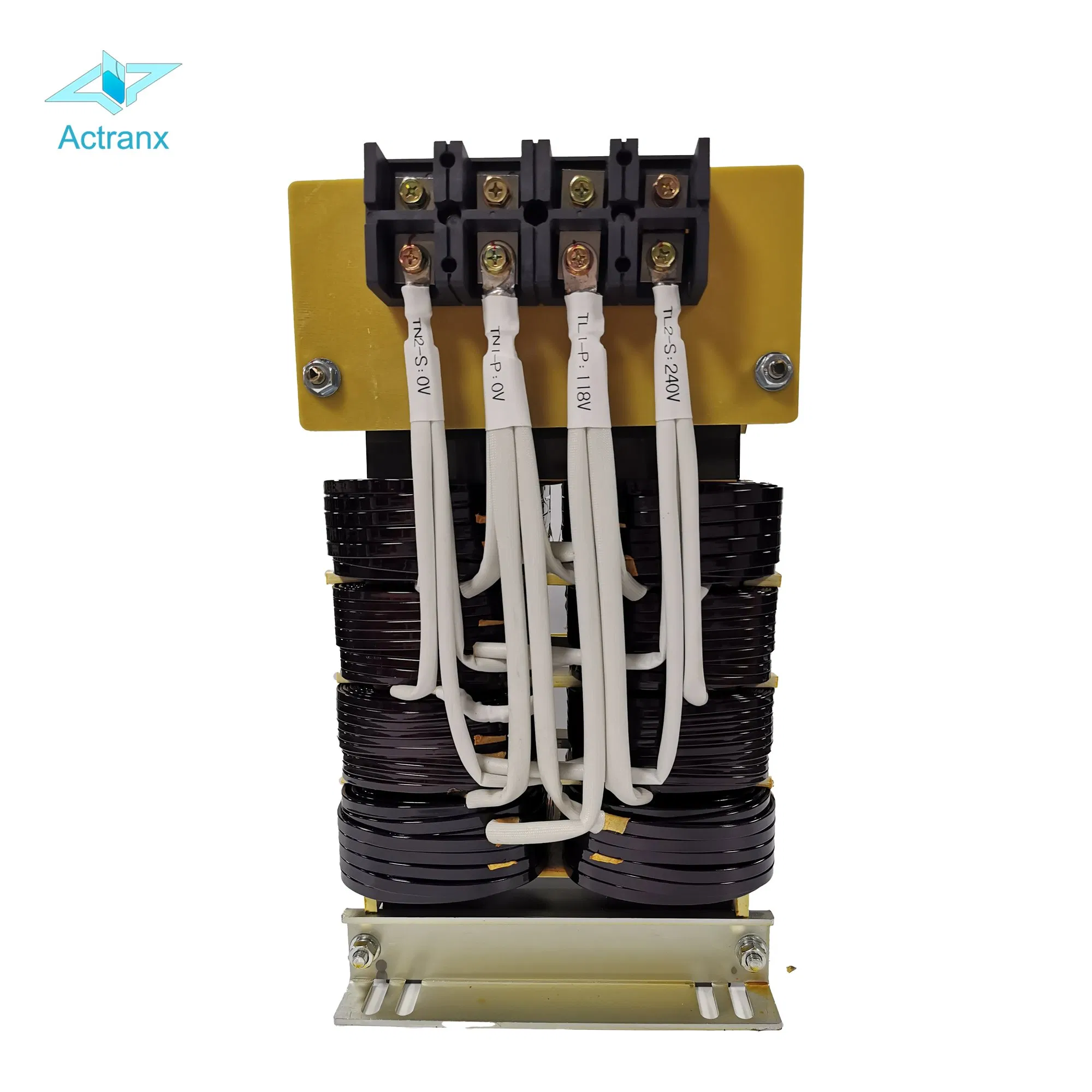

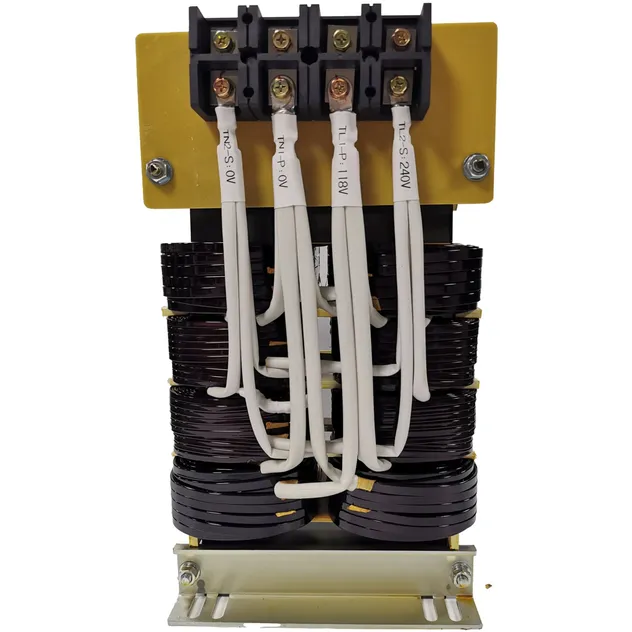

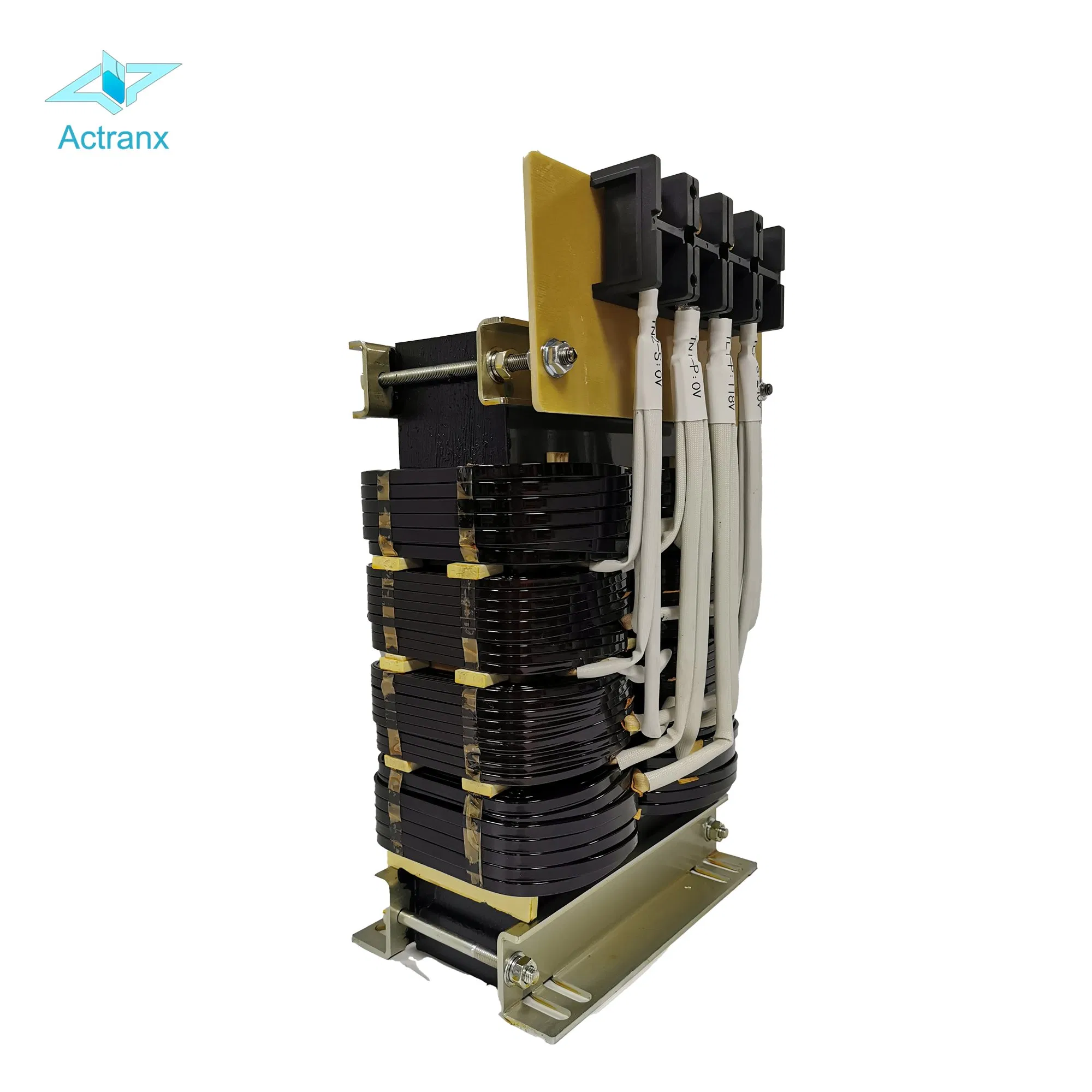

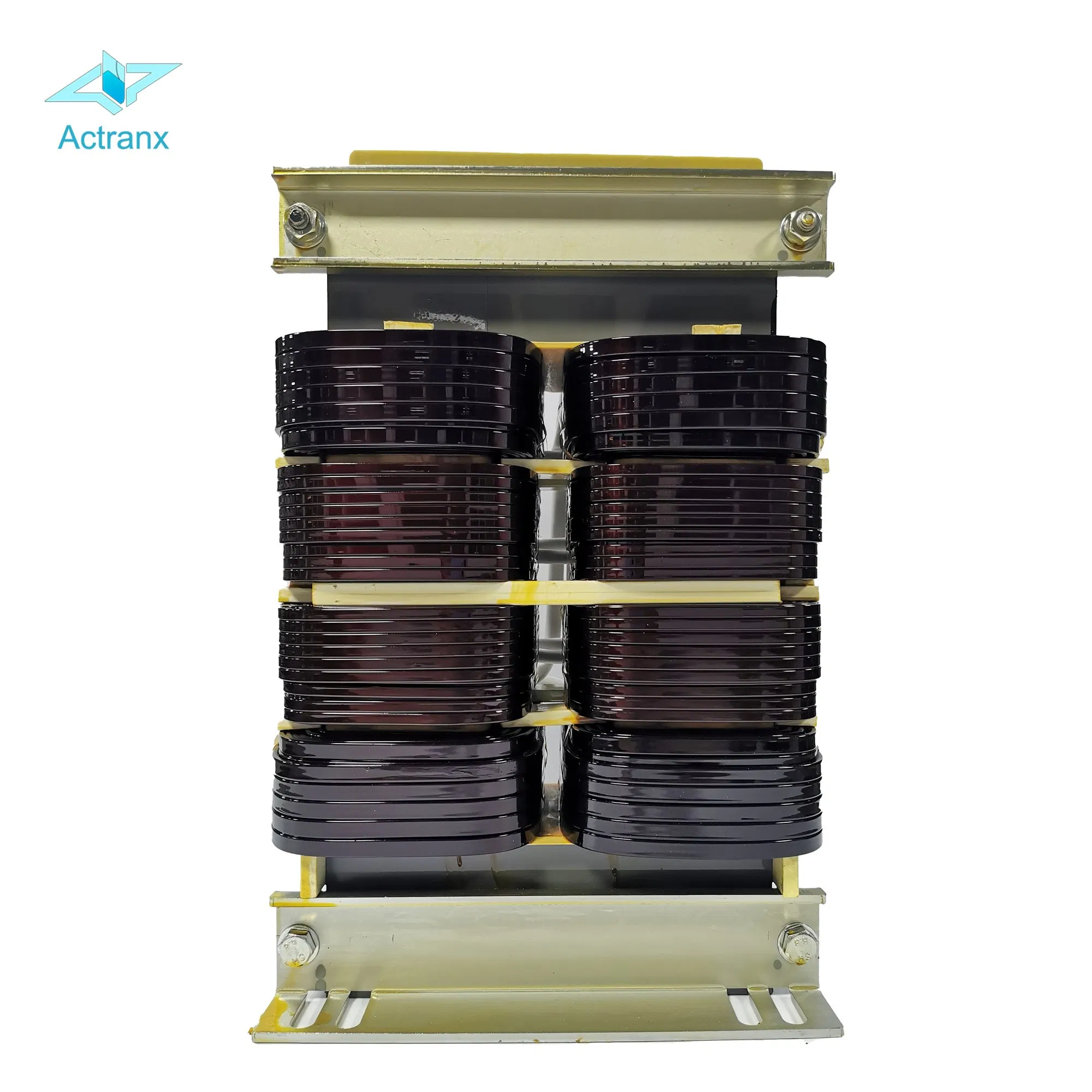

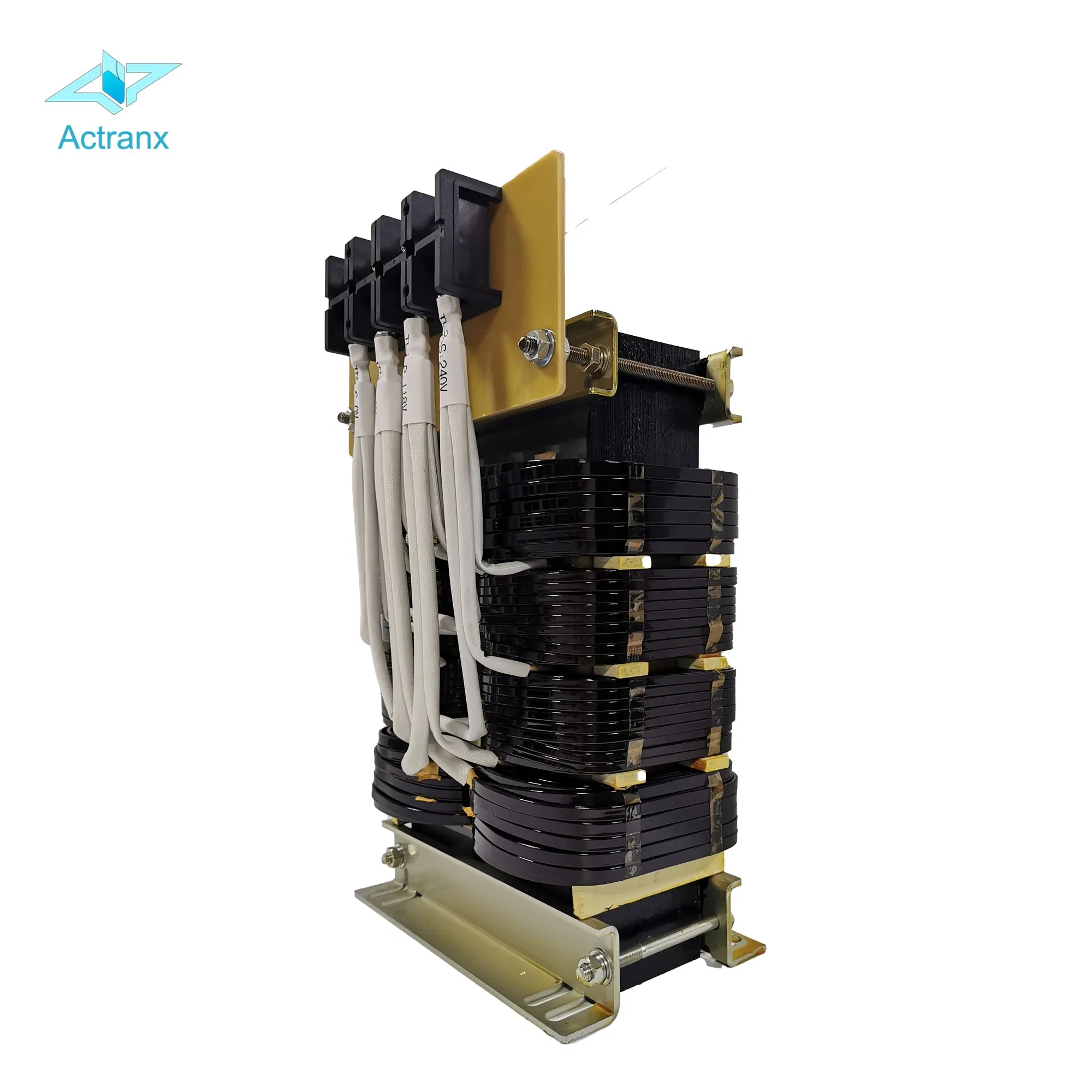

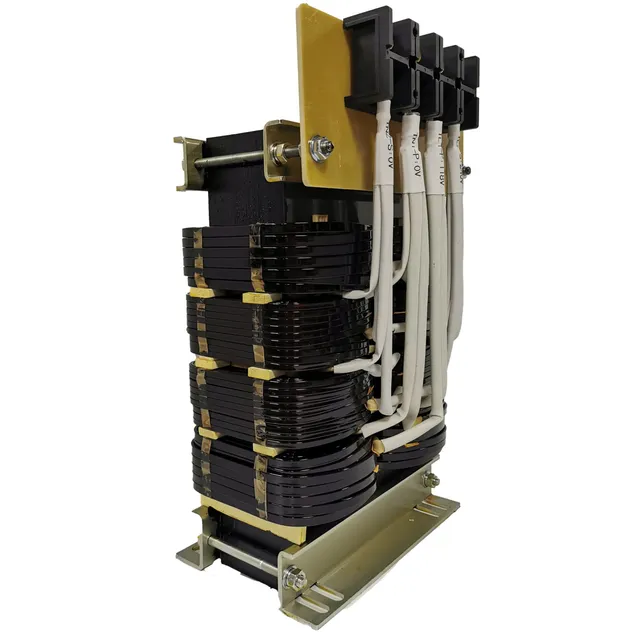

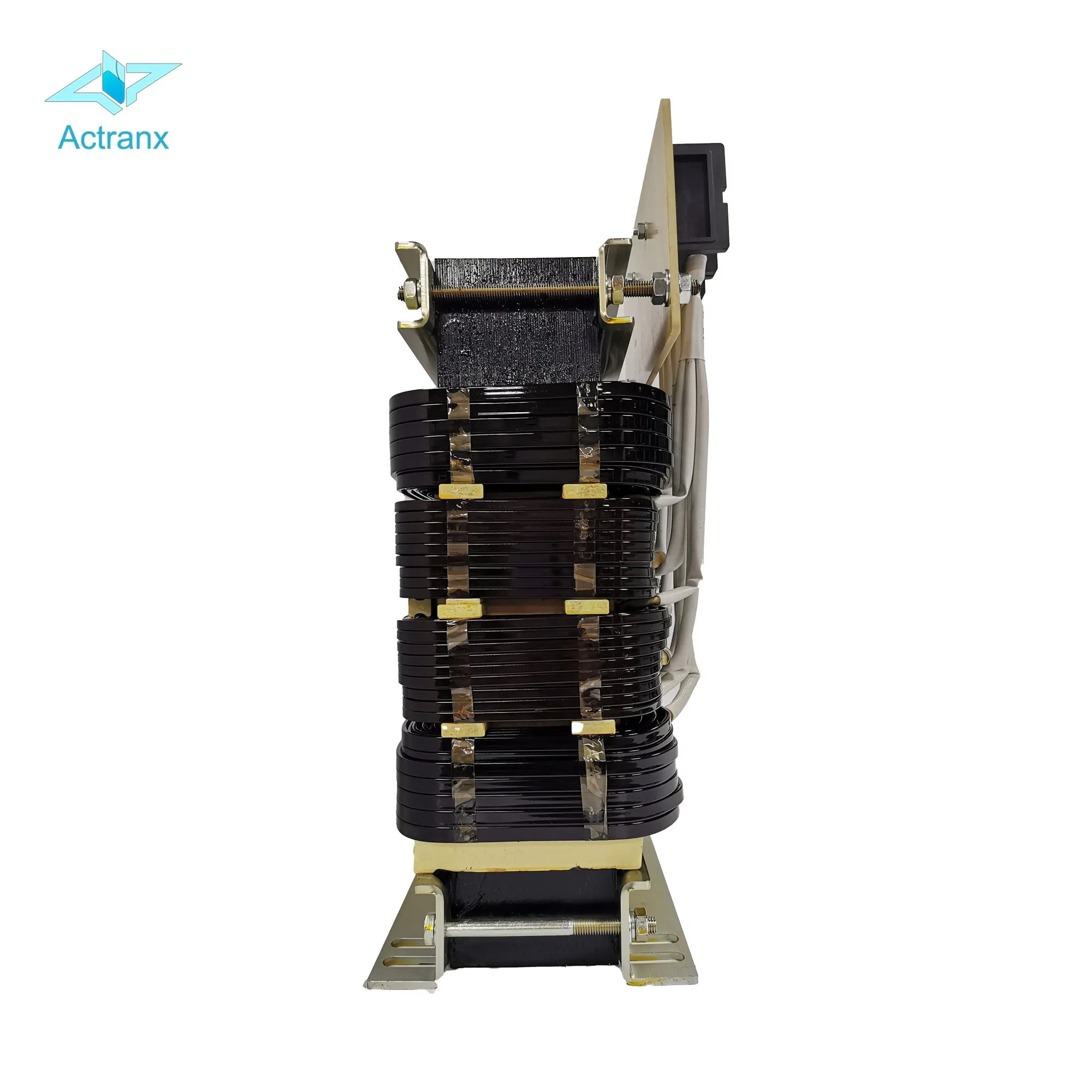

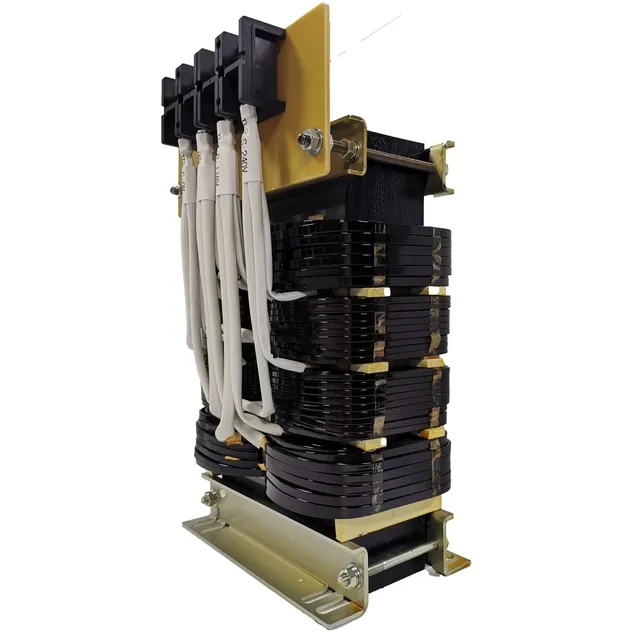

Single-Phase Segmented High-Impedance Dry-Type Inverter Transformer for Solar PV & UPS Systems

• High Impedance Design: Engineered with precisely controlled impedance to effectively limit fault current and short-circuit stresses, protecting sensitive components like IGBTs.
• VPI Technology: Utilizes a Class H or higher insulation system treated with Vacuum Pressure Impregnation (VPI) for superior durability.
• Thermal Performance: Open-ventilated design allows efficient air circulation to cool the windings directly.
• Customizable: Flexibility in design for specific input/output voltages, impedance values, and enclosures (IP20-IP23 standard).

This high-impedance inverter transformer is critical in various power electronic applications:

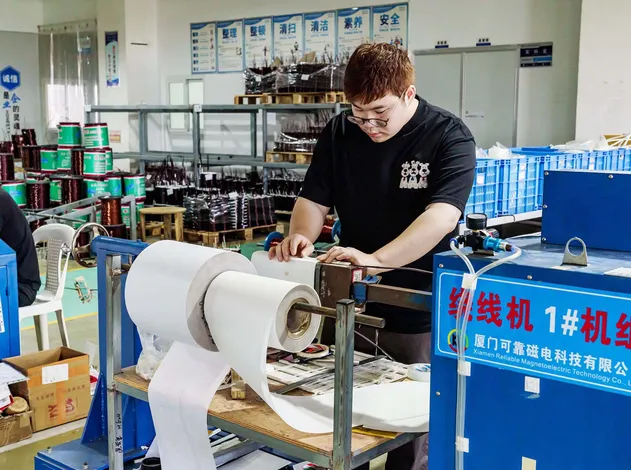

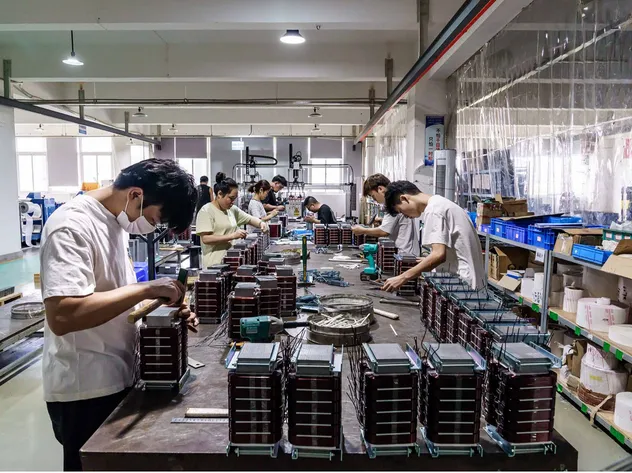

Our team has specialized in magnetic components for high and low frequency applications for over a decade. We focus on the new energy storage market, including power frequency transformers and reactors. We specialize in the R&D, production, and innovation of bespoke magnetic components, including high frequency transformers and inductor coils.
