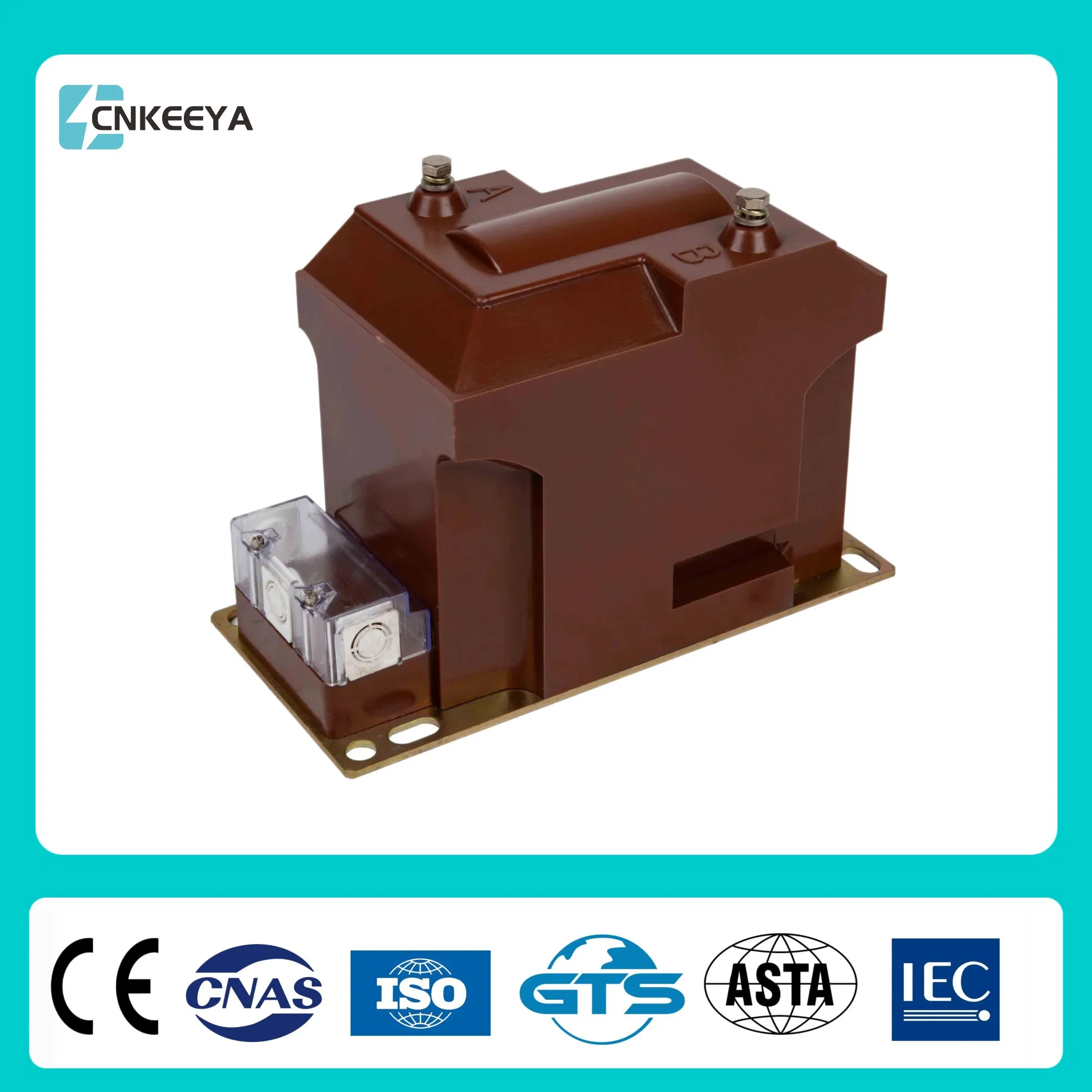

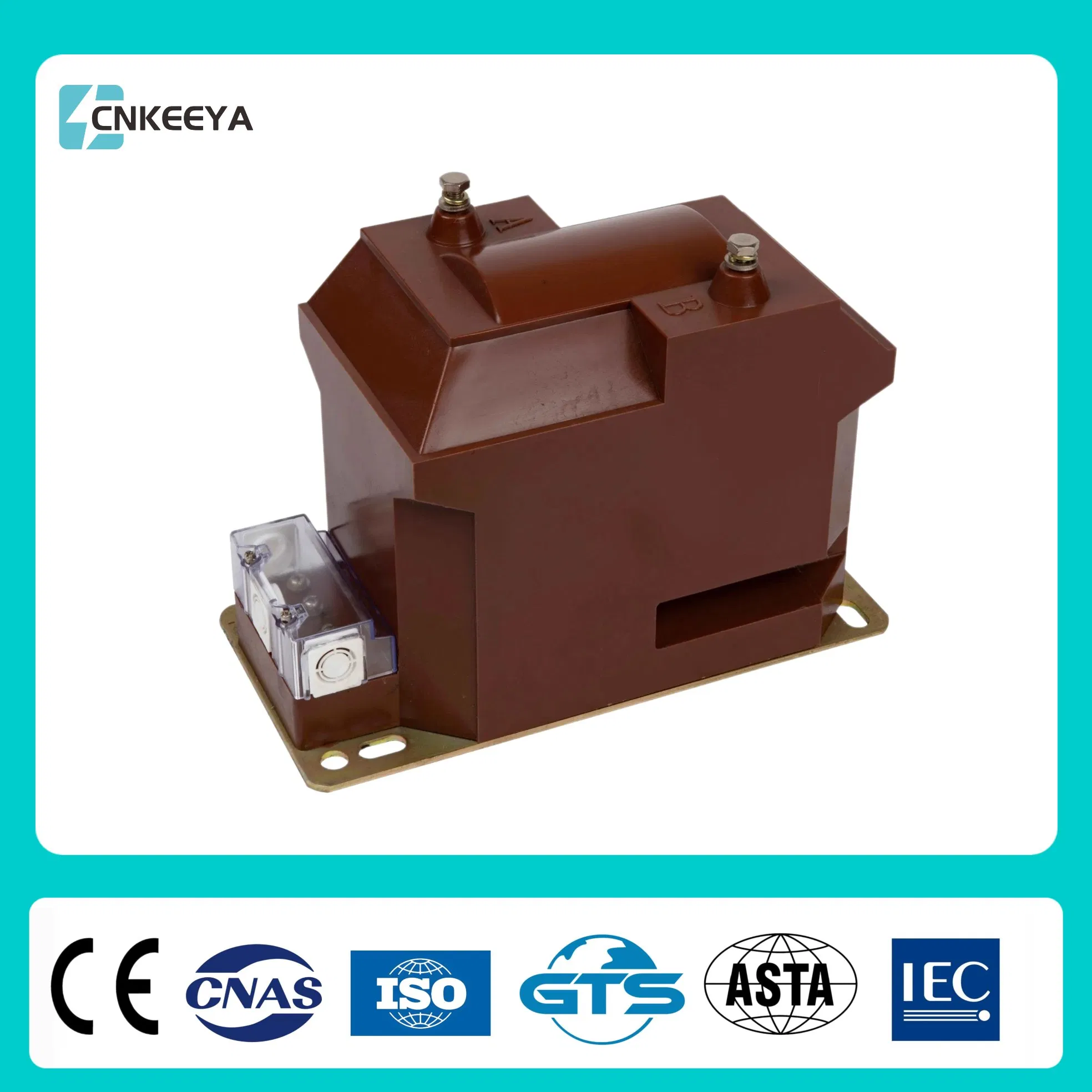

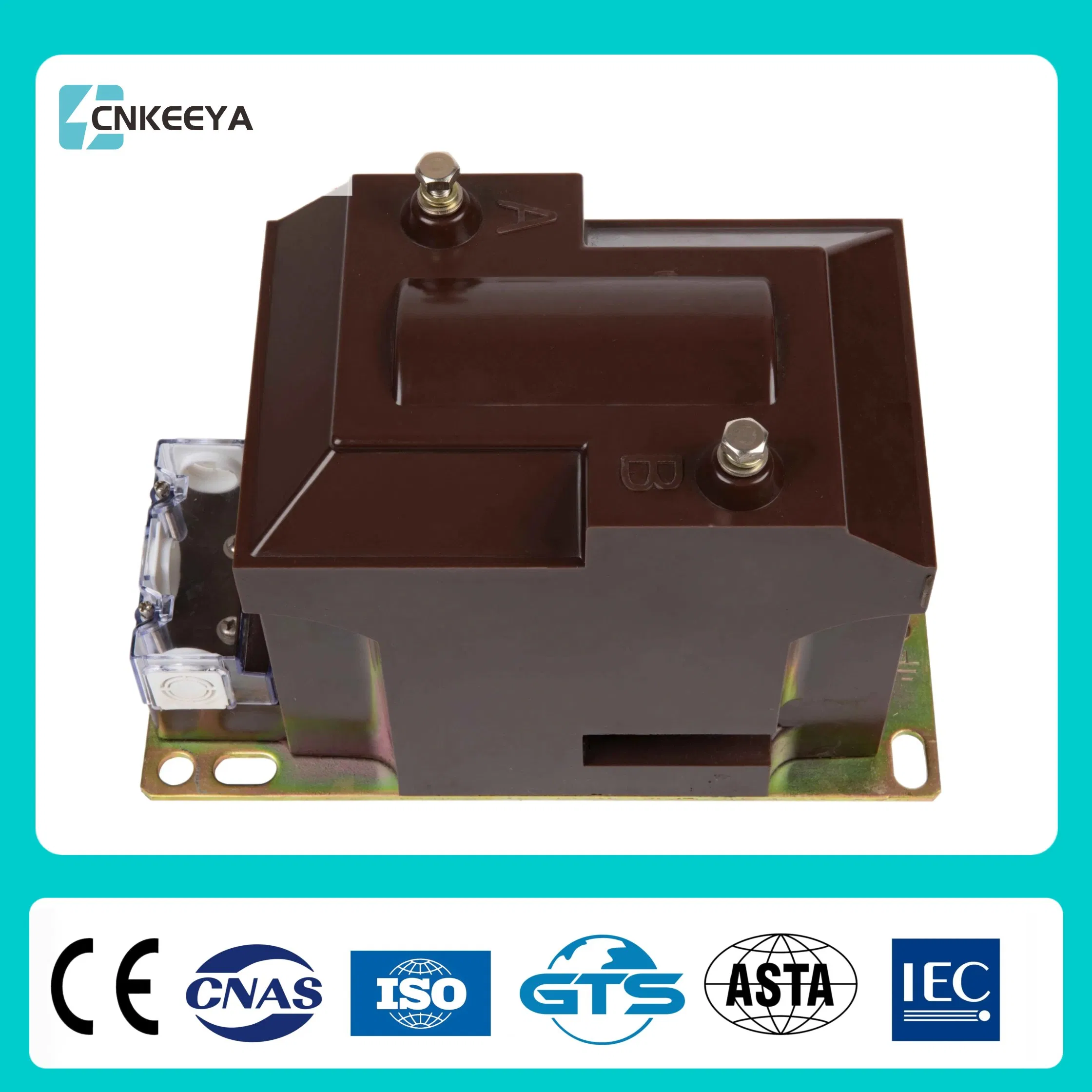

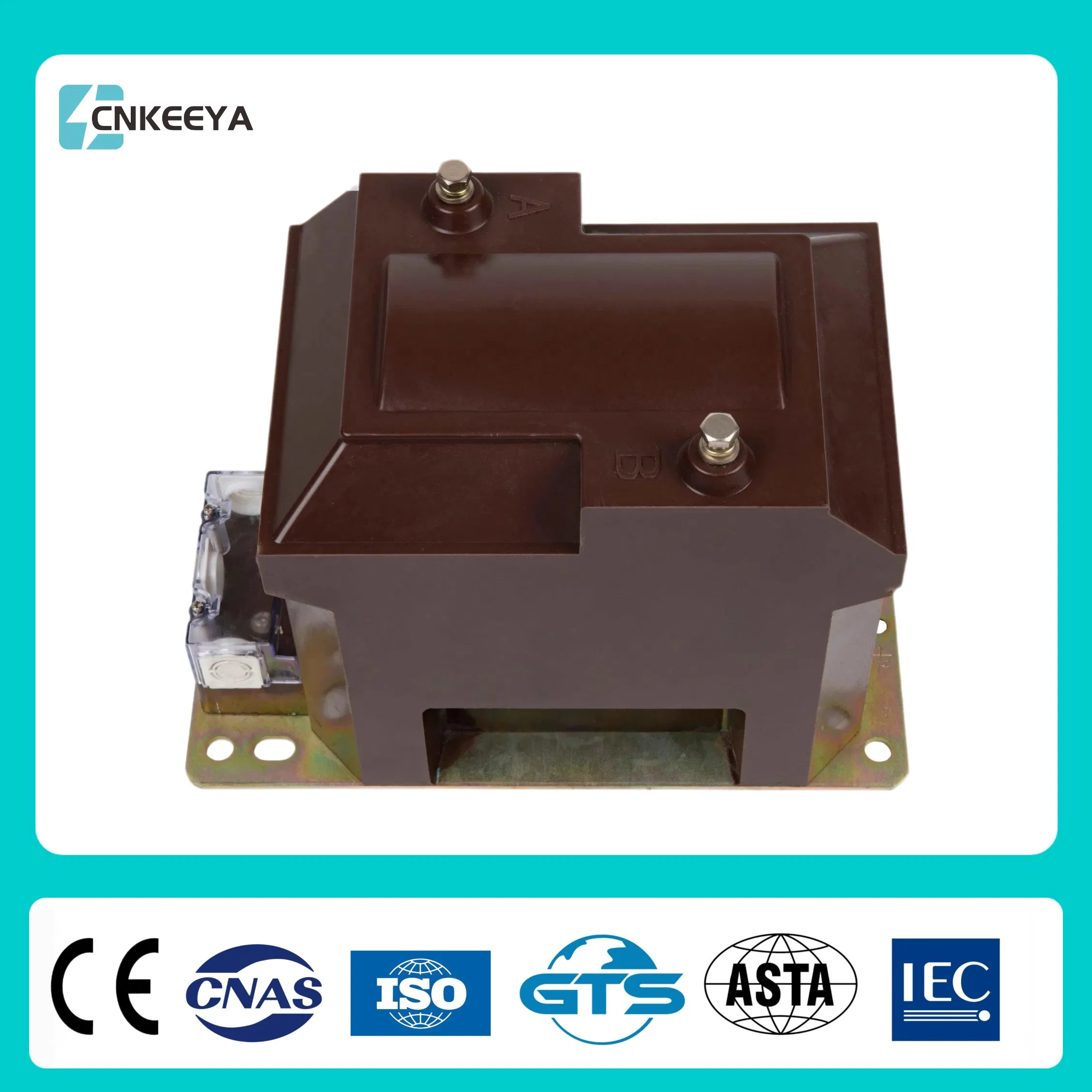

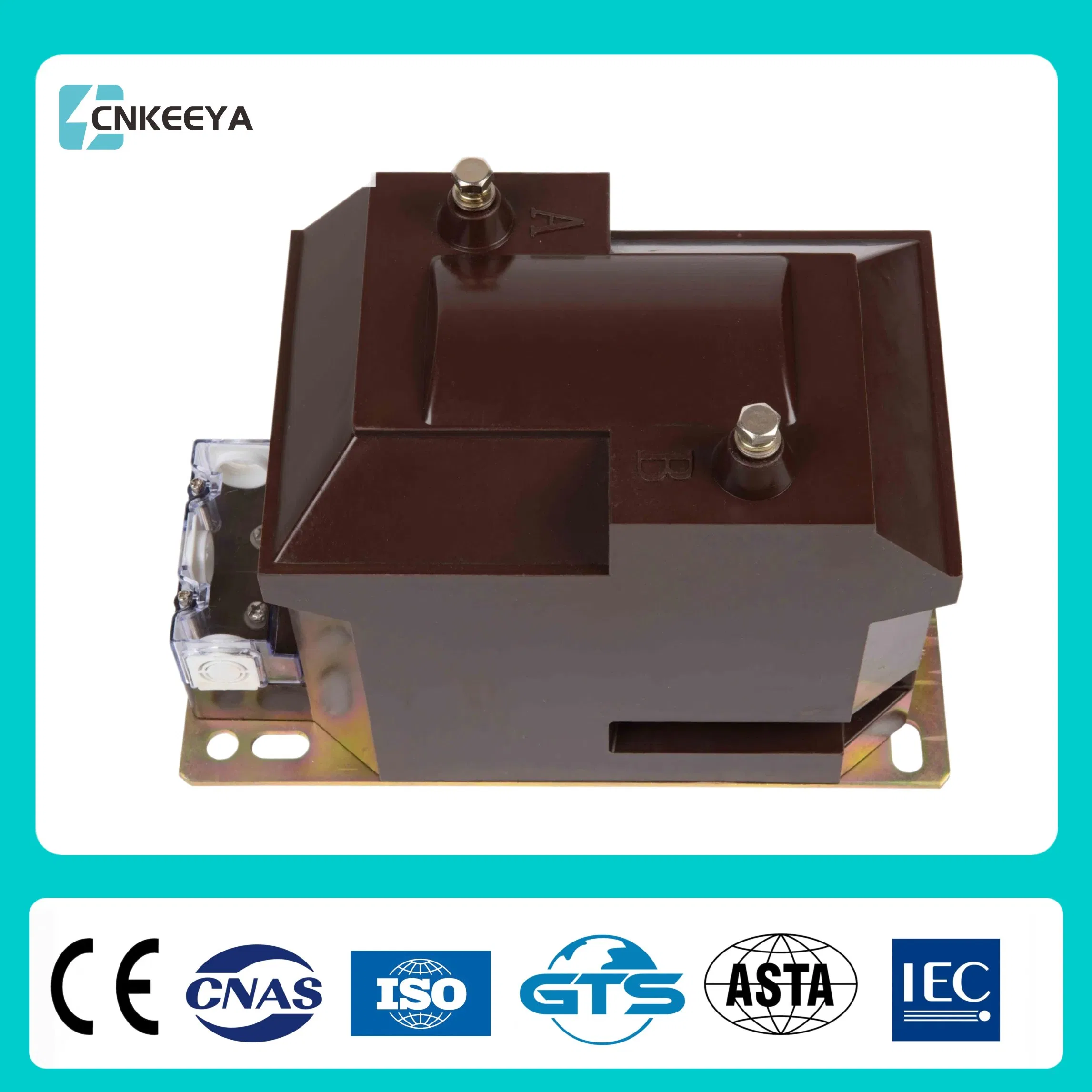

Cnkeeya Jdzx10-10, 10kv Indoor Voltage Transformer Voltage Measuring Instrument PT 10√ 3/0.1√ 3/0.1/3 0.5/6p, 0.2/3p

1 / 5

Cnkeeya Jdzx10-10, 10kv Indoor Voltage Transformer Voltage Measuring Instrument PT 10√ 3/0.1√ 3/0.1/3 0.5/6p, 0.2/3p

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Phase:Single

Operation Condition:Indoor

Usage:Protection

Winding Form:Single Layer & Tightly Wound Type

Insulating Medium:Epoxy Resin

Installation:Strut Type

Magnetic Circuit:Single Stage Type

Transformation Principle:Electromagnetic Type

Transport Package:Wooden Case

HS Code:8504311000

Production Capacity:5000PCS/Month

Product Description

JDZ10-10 and JDZX10-10 voltage transformers are suitable for rated frequencies of 50Hz or 60Hz. They are primarily used for energy metering, voltage monitoring, and relay protection in 10kV power systems.

Operational Requirements:
• Installation location: Indoor.
• Environmental temperature: Max +40 ºC; Min -5 ºC.
• Altitude: Not exceeding 1000m.
• Atmospheric conditions: No serious pollution.

This transformer features a pillar-type structure, constructed with epoxy resin fully enclosed casting. It is resistant to pollution and moisture, making it suitable for tropical regions. These units require minimal maintenance, needing only regular cleaning of the surface. Its compact and lightweight design allows for flexible installation in any position or direction. A terminal box at the secondary outlet ensures safe and reliable wiring.

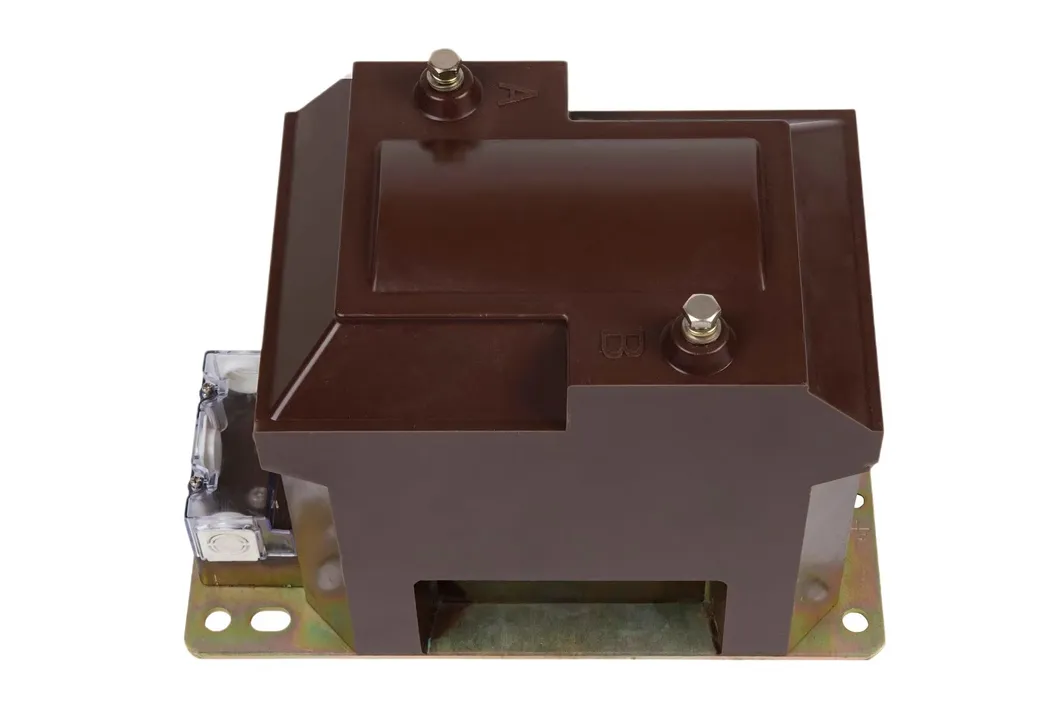

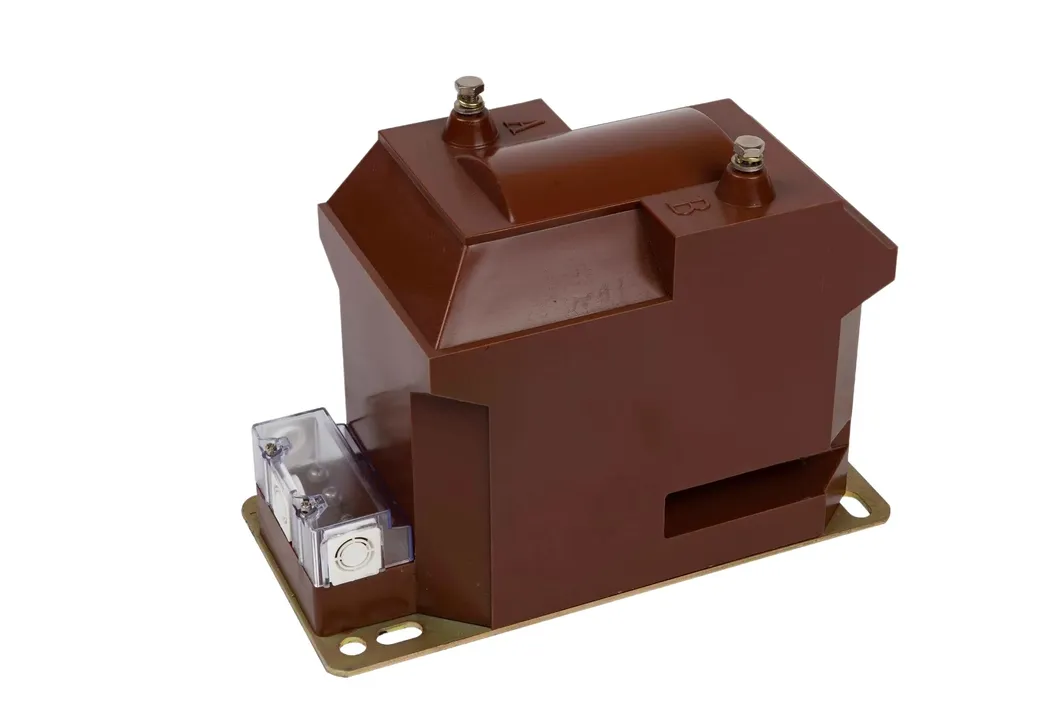

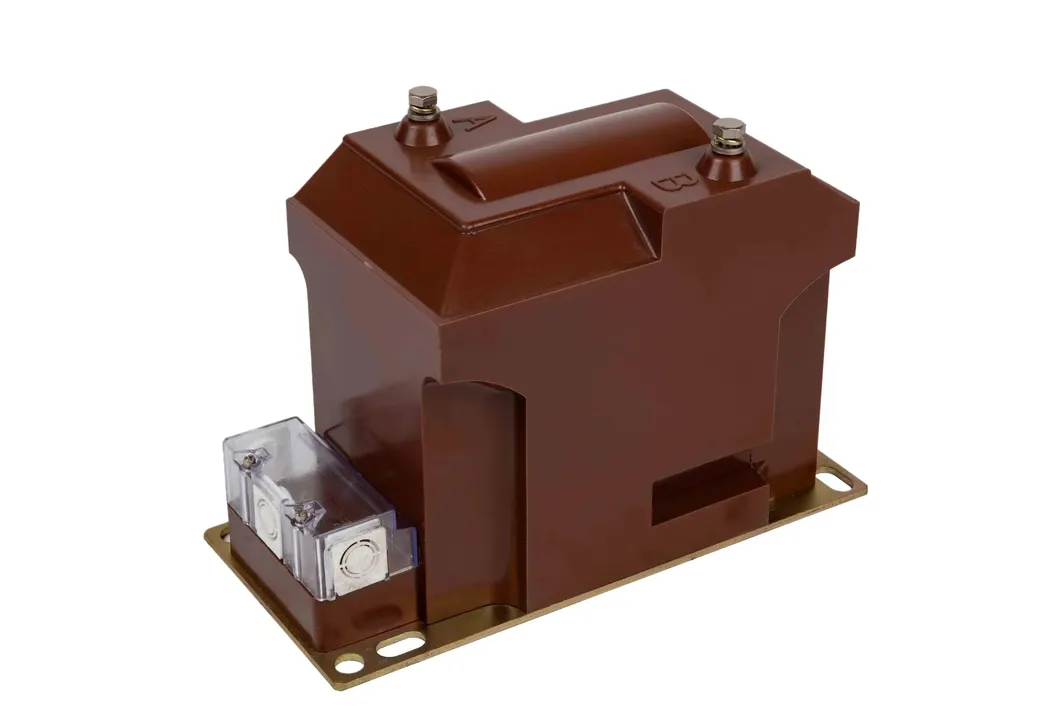

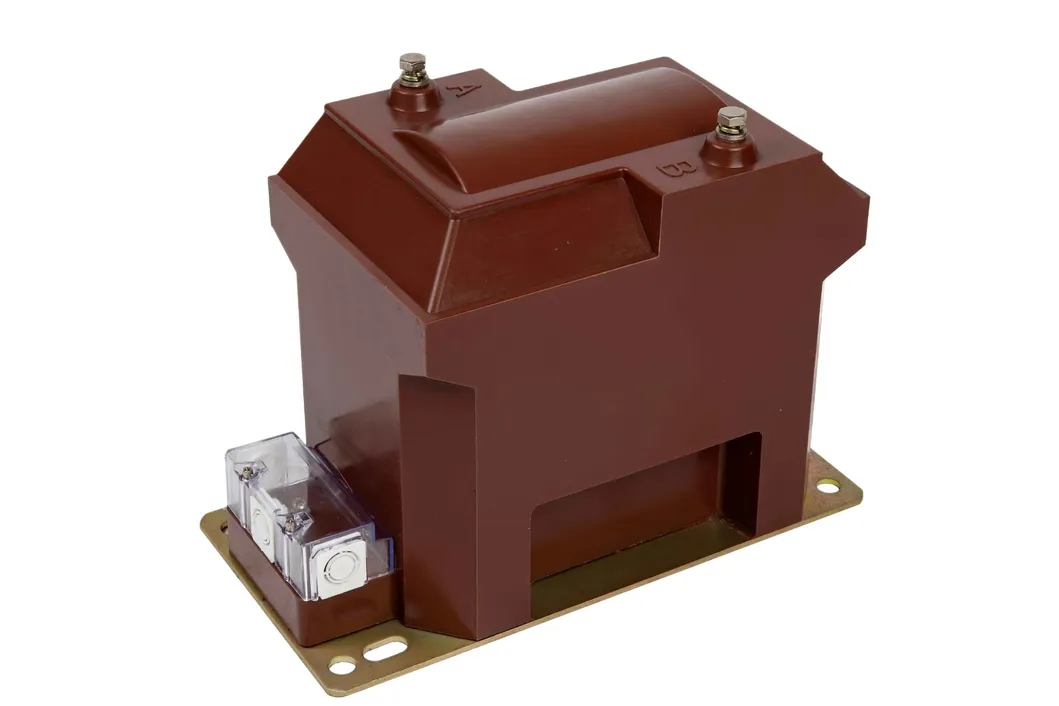

Detailed Photos

Product Parameters

Product Model	Rated Primary Voltage	Rated Secondary Voltage	Rated Output (0.2 class)	Rated Output (0.5 class)	Ultimate Output	Insulation Level
JDZ10-10	10kV	100V	15VA	30VA	200VA	12/42/75kV

Manufacturing & Process

Frequently Asked Questions

What are the primary applications for JDZ10-10 transformers?

They are designed for energy metering, voltage monitoring, and relay protection within 10kV power systems operating at 50Hz or 60Hz.

What are the environmental requirements for installation?

These units are intended for indoor installation with ambient temperatures between -5 ºC and +40 ºC, at altitudes below 1000 meters.

What insulation material is used in this voltage transformer?

The transformer uses epoxy resin fully enclosed casting, providing excellent resistance to pollution and moisture.

Does the transformer require frequent maintenance?

No special maintenance is required other than regular cleaning of surface contaminants due to its robust enclosed design.

How is the wiring safety managed?

The secondary outlet is equipped with a terminal box featuring accessible wiring holes on both the front and side for secure connections.

What is the rated insulation level for the JDZ10-10 model?

The rated insulation level is 12/42/75kV, ensuring high reliability in high-voltage environments.
