| Model (kVA) | Voltage Tap Range | Connection Symbol | No-load Loss (kW) | Load Loss (kW) | Impedance % | ||||
|---|---|---|---|---|---|---|---|---|---|
| HV kV | Tap % | LV kV | 130ºC (B) | 155ºC (F) | 180ºC (H) | ||||
| SCB10-100 | 11-33 | ±2.5/±5 | 0.4 | Dyn11 | 0.54 | 1.87 | 1.99 | 2.13 | 6 |
| SCB10-250 | 11-33 | ±2x2.5 | 0.4 | Dyn11 | 0.85 | 3.22 | 3.42 | 3.66 | 6 |
| SCB10-630 | 11-33 | ±2x2.5 | 0.4 | Dyn11 | 1.53 | 6.45 | 6.84 | 7.32 | 6 |
| SCB10-1000 | 11-33 | ±2x2.5 | 0.4 | Dyn11 | 2.07 | 9.22 | 9.77 | 10.4 | 6 |
| SCB10-2500 | 11-33 | ±2x2.5 | 0.4 | Dyn11 | 3.87 | 18.2 | 19.3 | 20.7 | 8 |

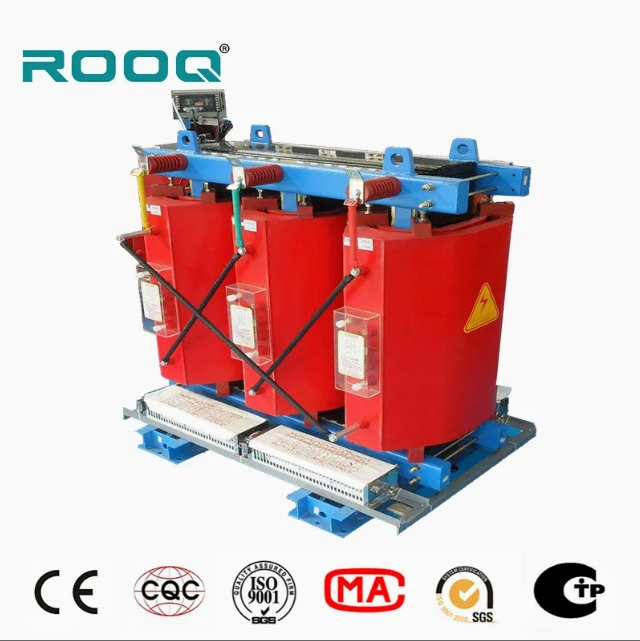

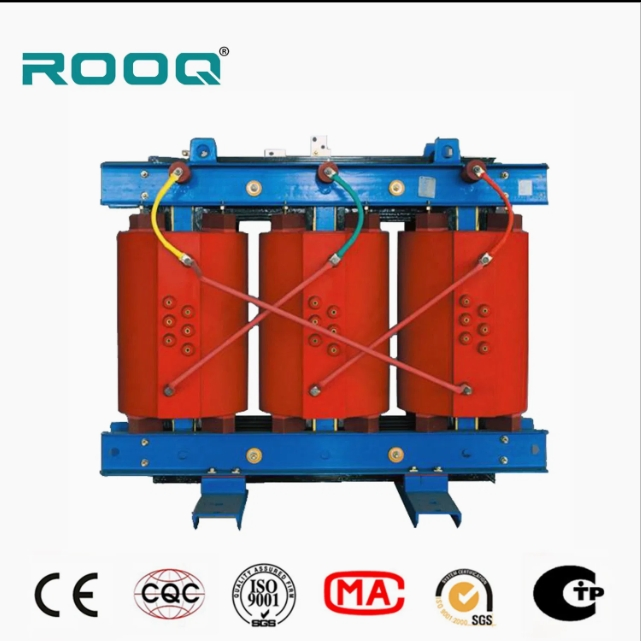

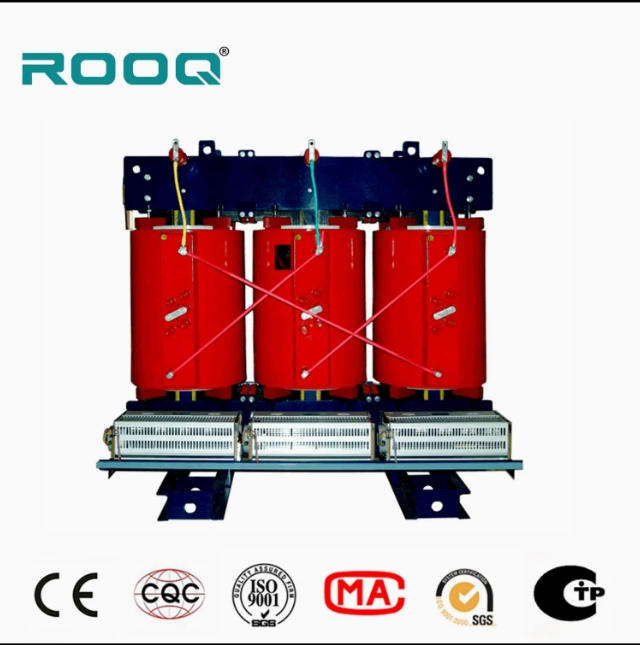

They are highly safe, fireproof, and pollution-free. Since they use epoxy resin as a solid insulating material, they are non-flammable and maintenance-free, making them ideal for load centers and high-performance environments.
The units use Natural Air cooling (AN) for continuous operation at rated capacity. For short-term high demand, Forced Air cooling (AF) can be activated to increase the output capacity by up to 50%.
Standard models are suitable for altitudes up to 1000m. However, they can be customized to operate in environments up to 2500m by modulating specific technical parameters.
They feature intelligent signal temperature control systems that monitor three-phase windings, automatically control fans, and provide alarm or trip functions. RS485 interfaces are also available for wireless management.
Our transformers are manufactured in accordance with IEC60076, GB/T1094.11, and GB/T17211 standards, ensuring global compatibility and safety.
Yes, they have excellent moisture resistance. However, for environments with high corrosive gases or conductive dust, we recommend specific protection classes (up to IP50) to ensure stable operation.
