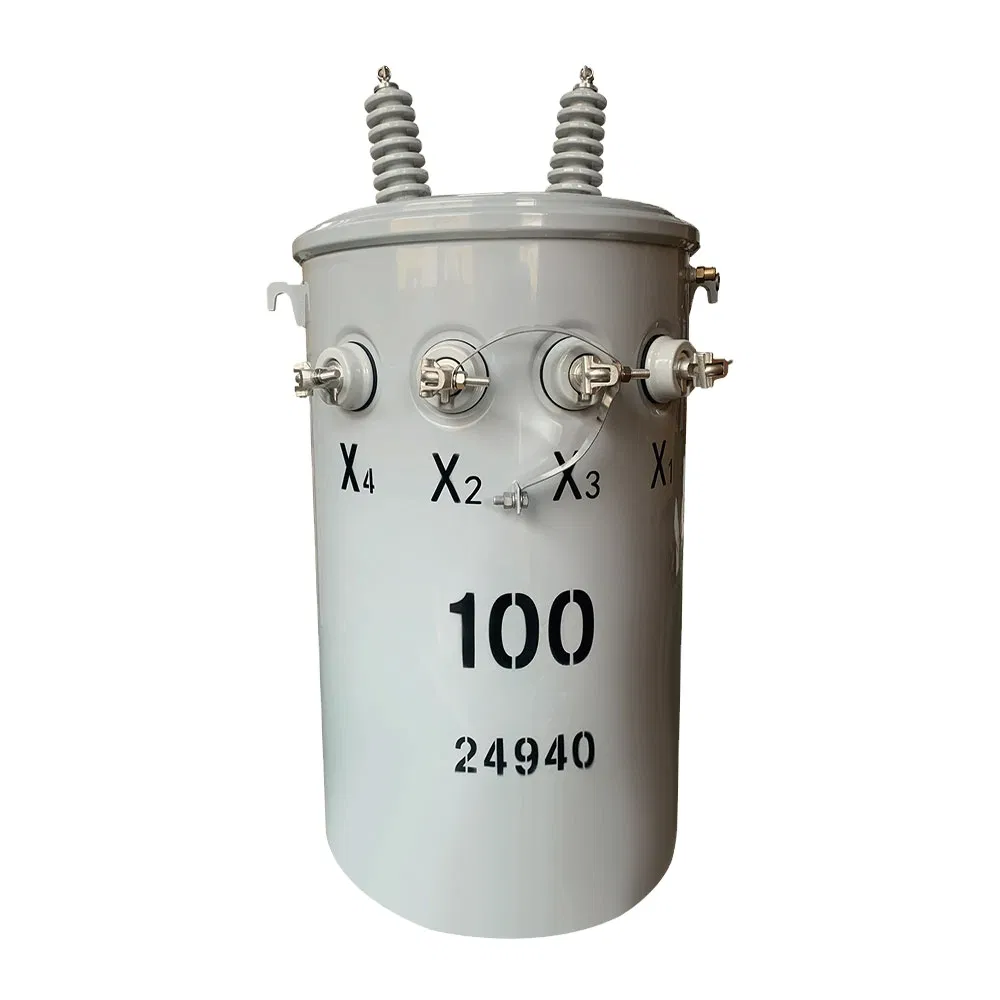

Cheap Price 10kv Single Phase 25 kVA Pole Mounted Electric Distribution Transformer

Customization: Available
Application: Power, Electronic
Phase: Single

Product Description

Basic Information
Model NO.
NB
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001
Usage
Single-phase, Power, Distribution
Frequency
High Frequency / 60Hz
Shape of Core
U
Rated H.V.
34.5/13.2/13.8/12.47/14.4/15/7.62/7.2kv
Low Voltage
0.4kVA / 120/240V
Winding
Copper/Aluminum
Enclosure
IP20/IP23
Transport Package
Wooden Box
Production Capacity
5000PCS/Year
Product Parameters
Overhead Installation 10kv 15kv Single Phase Pole Mounted Transformer 100kva 75kva 50kva 37.5kv
Rated Power (KVA) High Voltage (KV) Low Voltage (V) Loss (W)
No-load Loss On-load Loss
10KVA24.94/14.4kV
12.47/7.2kV
34.5KV
13.8KV
or others
120/240V
480Y/277V
600Y/347V
36120
15KVA50195
25KVA80290
37.5KVA105360
50KVA135500
75KVA190650
100KVA210850
Product Description

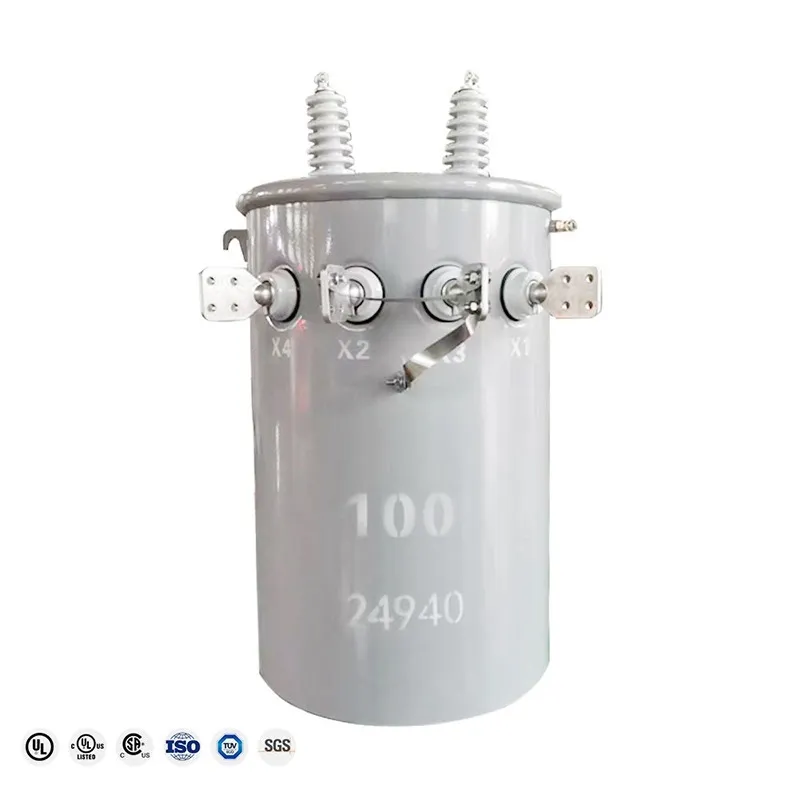

Pole Mounted Transformer
Single phase pole-mounted transformers are made in power ratings up to 333 kVA. High voltage up to 34.5 kV. Designed and tested in accordance with standards including ANSI/CSA, IEEE c.57, and IEC60076.

Key Features:
  • Fully sealed and insulated; safe and reliable
  • Low loss, low noise, strong overload capacity
  • Equipped with load switch, bayonet fuse, pressure relief valve, etc.

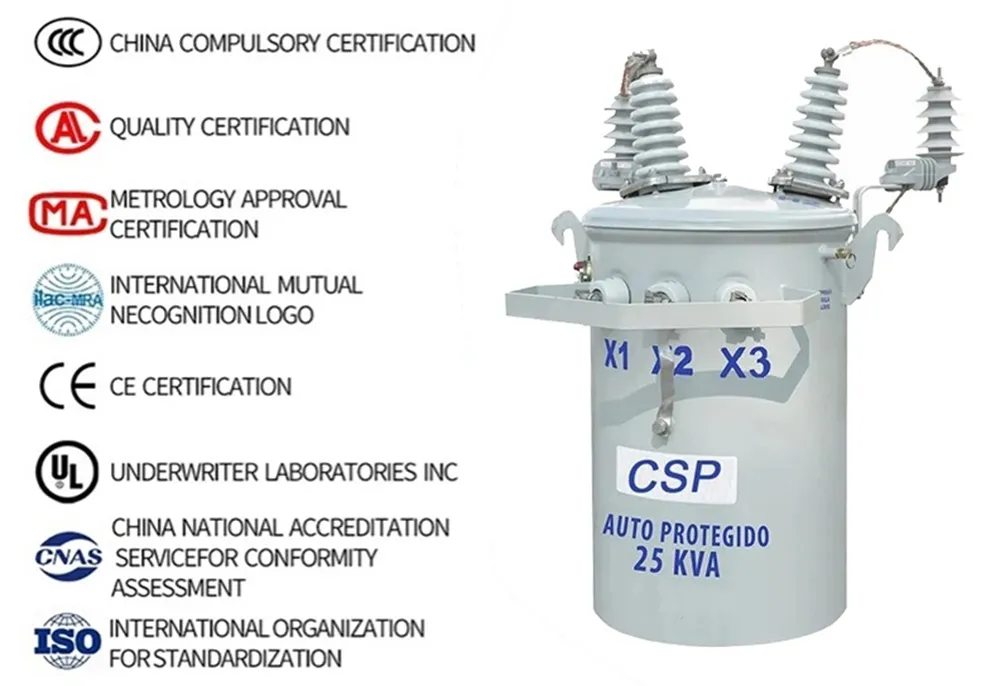

Transformer Details
Transformer Details

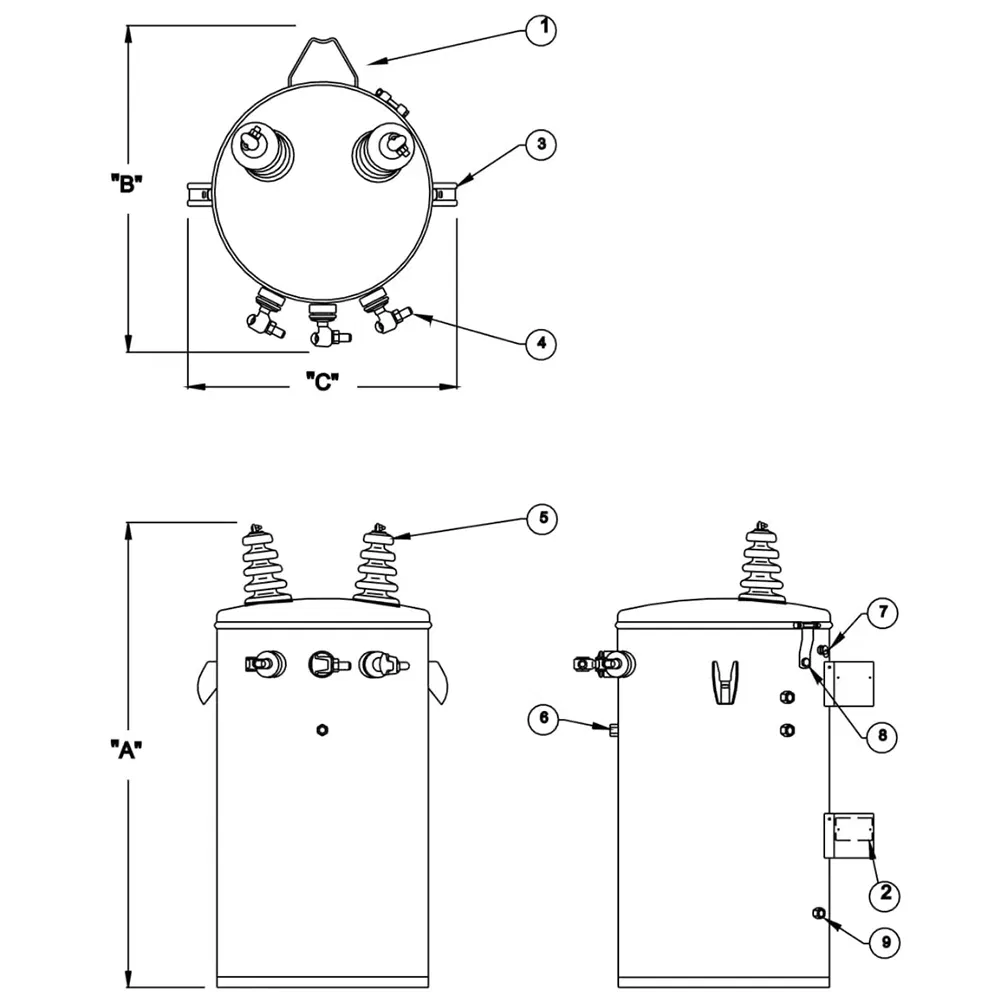

Structure
Structure

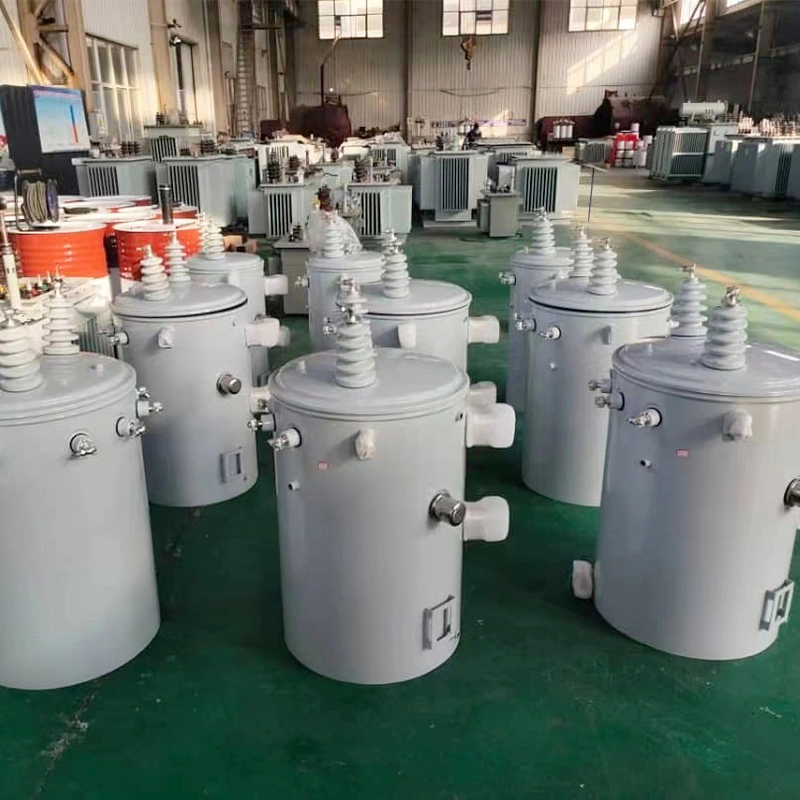

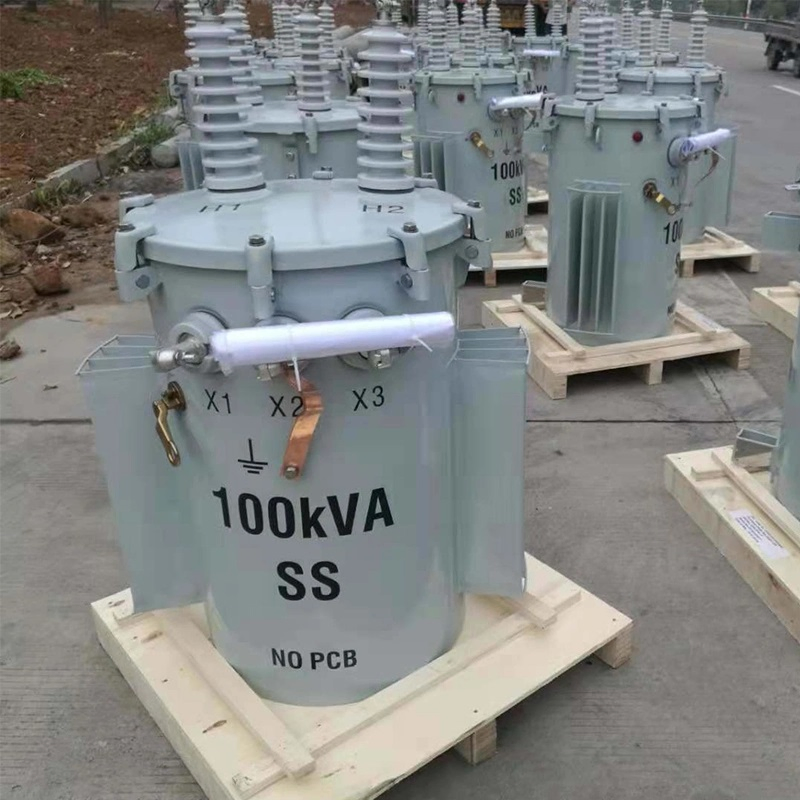

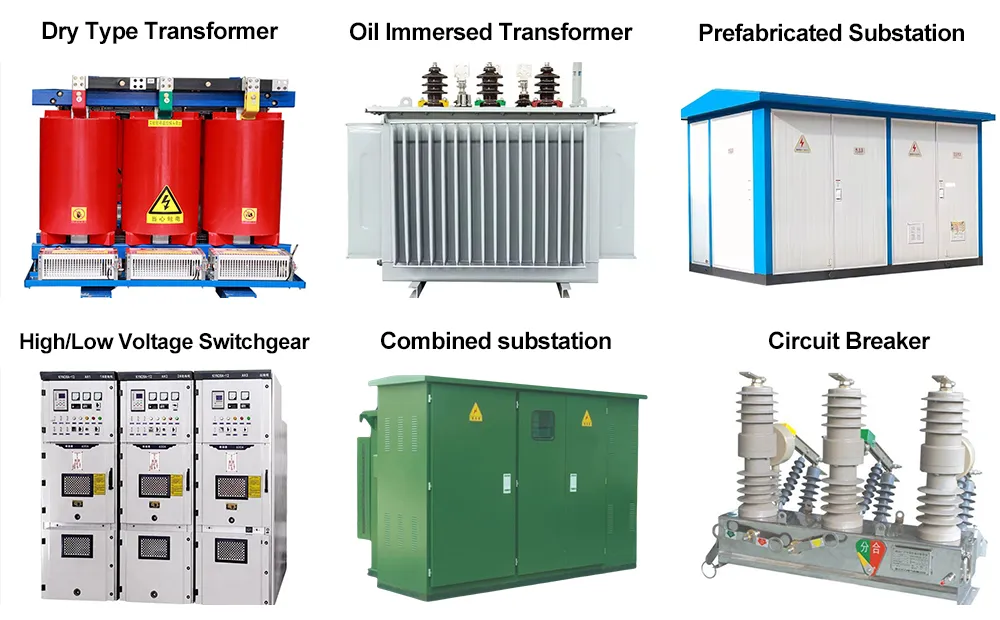

Main Product Display
Main Products

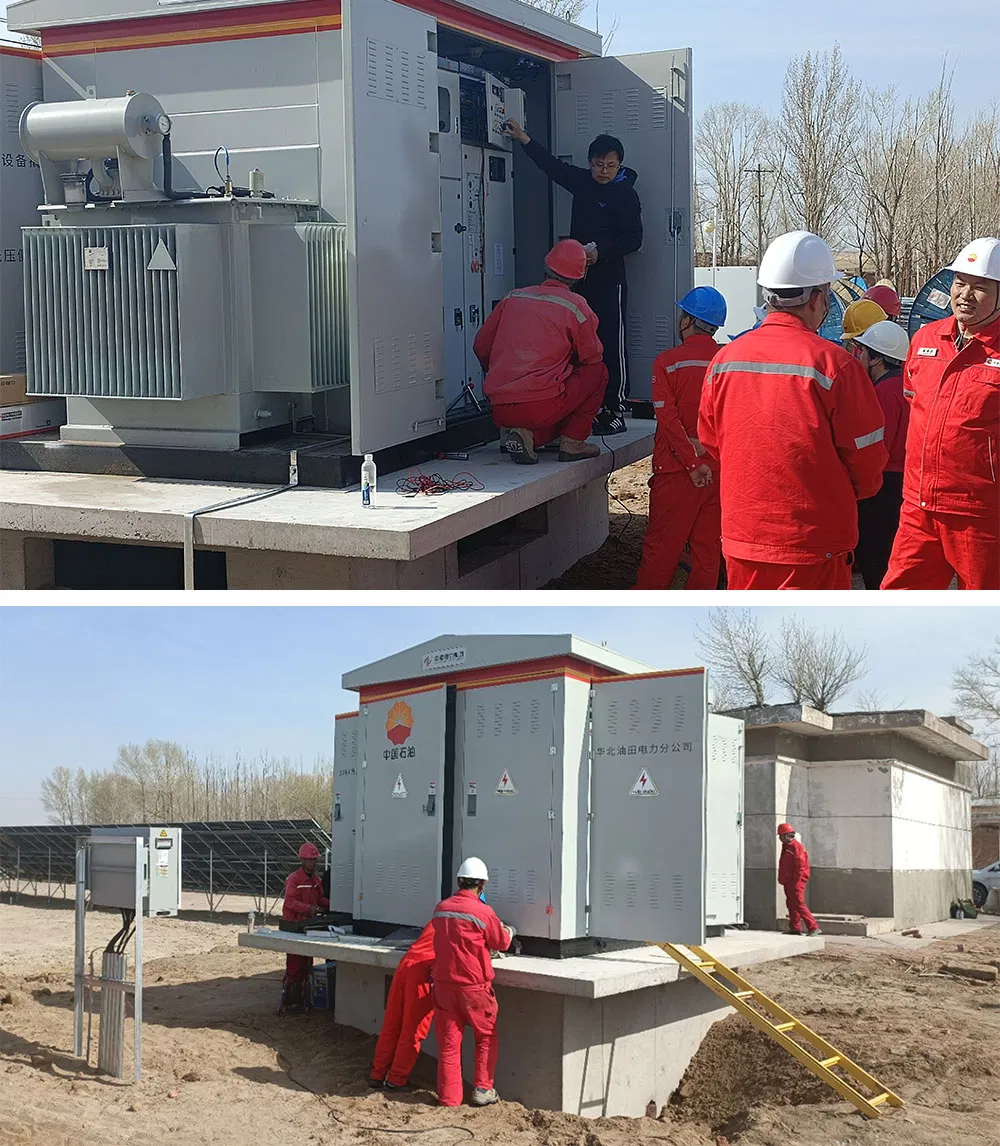

On-site Installation
Installation
Manufacturer Profile
We are an intelligent technology enterprise engaged in R&D manufacturing and sales of power transformers, high and low voltage switch cabinets, and box-type substations.

The factory covers an area of nearly 100,000 square meters, with more than 300 employees and nearly 50 technical personnel. We rely on advanced technology and production testing equipment, in accordance with ISO9000 quality certification system standards, to provide customers with energy-saving and high-quality products.
Factory Facility

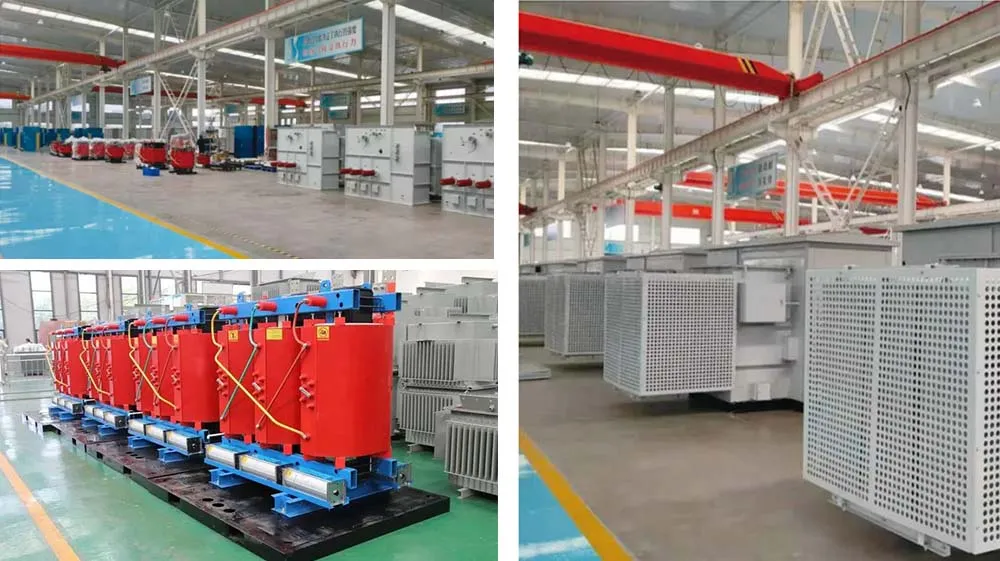

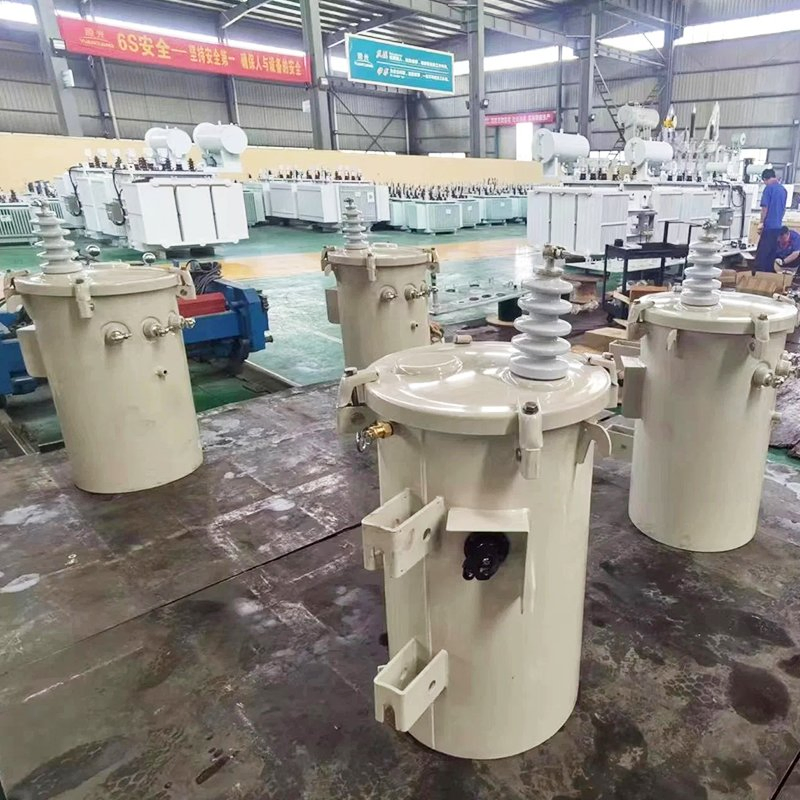

Production Line
Workshop & Quality Control
We insist on striving for progress with science and technology. We aim to achieve the goal of building a R&D and manufacturing base for advanced equipment. Through extensive technical exchanges and cooperation, we develop high-reliability, maintenance-free, and environmentally friendly power transmission equipment.

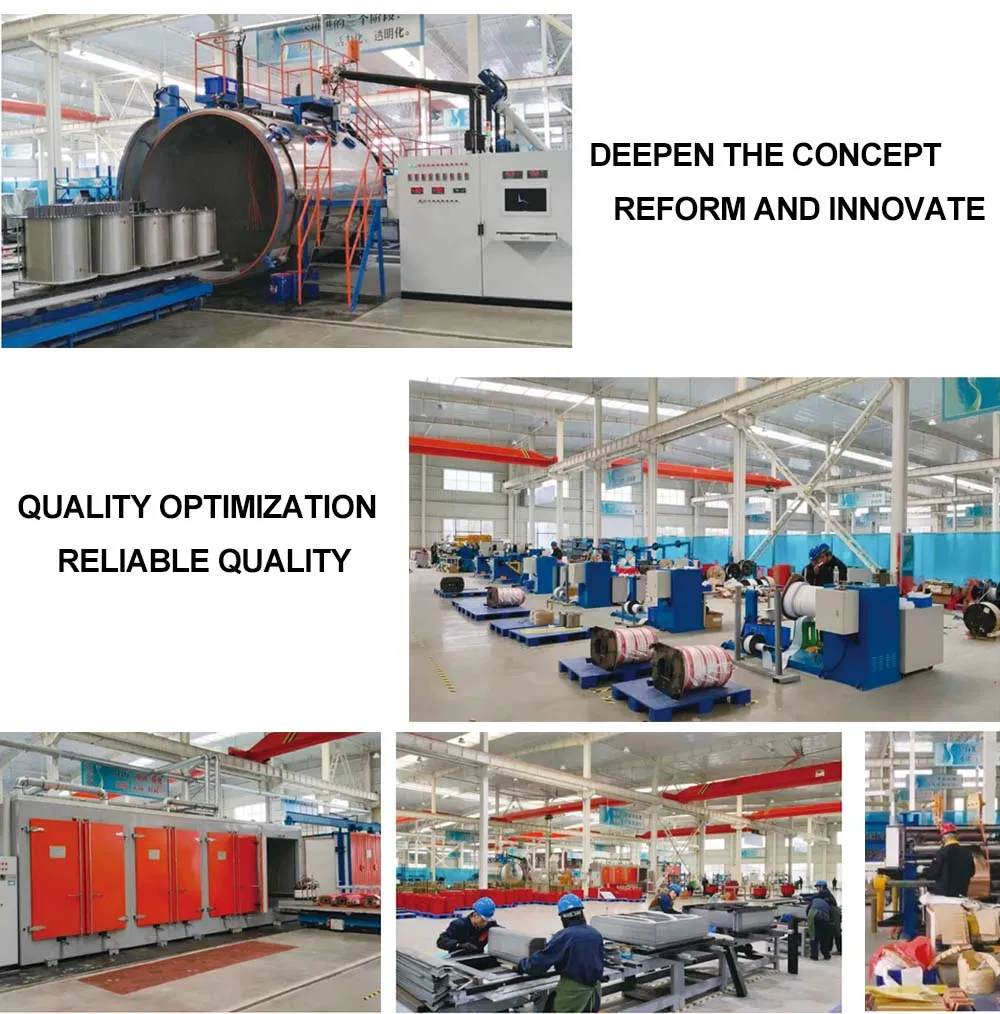

Workshop
Frequently Asked Questions
What are your terms of packing?
Generally, we pack our goods in neutral white boxes and brown cartons. We can also provide branded packaging upon proper authorization.
What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packages before the final payment.
What are your terms of delivery?
We support multiple delivery terms including EXW, FOB, CFR, CIF, and DDU.
How about the delivery time?
Typically, it takes 3 to 10 days after receiving your advance payment. The specific time depends on the items and order quantity.
Do you test all your goods before delivery?
Yes, we conduct 100% testing on all equipment before delivery to ensure quality and safety.
How do you maintain long-term business relationships?
We keep good quality and competitive prices to ensure our customers benefit; we respect every customer as a friend and conduct business with sincerity.
