7 Tips for Power Transformer Efficiency Testing?

Time:2026-09-23 Author:Ethan
0%

Power transformer efficiency testing is not merely a nameplate exercise. It reveals how much electrical energy becomes useful output and how much becomes heat, vibration, or magnetic loss. In a substation, even a small percentage difference can increase operating costs over thousands of energized hours. That is why engineers use measured data, controlled conditions, and documented procedures rather than assumptions.

This guide introduces seven practical tips for applying Power Transformer Efficiency Testing Methods in the field. The process may include no-load loss, load loss, winding resistance, temperature, voltage, current, and power-factor measurements. Each reading should be linked to calibrated instruments and a clear test record. Ambient temperature matters. So does tap position. A loose connection can distort results, while an incorrect power-factor setting may produce misleading figures. Small details count.

Safety remains central. Qualified personnel should isolate equipment, verify grounding, and follow the manufacturer’s instructions and applicable IEC or IEEE guidance. Experienced technicians also compare current results with factory data and previous maintenance records. Trends often explain more than one isolated number. A rising load loss may suggest winding or connection problems, but the evidence must be checked carefully. Not every unusual reading indicates failure. Sometimes the test setup is the real problem.

These seven tips focus on preparation, instrument selection, test consistency, loss calculation, temperature correction, data review, and reporting. The approach is practical, but not perfect. Field conditions vary. Careful judgment still matters.

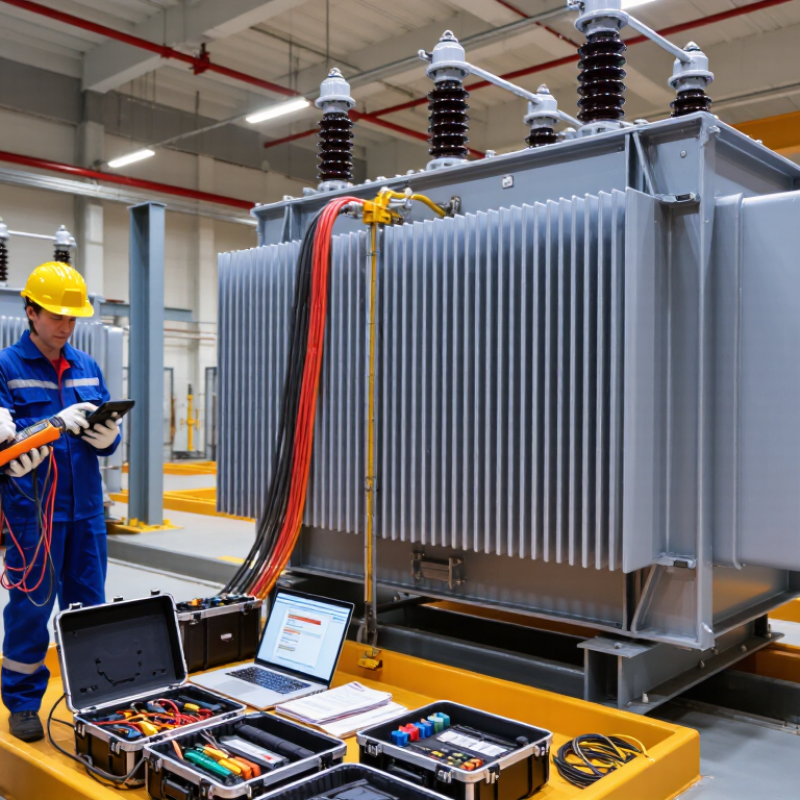

7 Tips for Power Transformer Efficiency Testing?

Understanding Power Transformer Efficiency and Its Key Performance Indicators

Understanding Power Transformer Efficiency and Its Key Performance Indicators

Power transformer efficiency is more than a percentage on a test sheet. It shows how much input energy reaches the load, while revealing where heat and money disappear. The U.S. Department of Energy’s Distribution Transformer Technical Support Document estimates transformer losses at about 2.5% of U.S. electricity consumption. That figure makes small improvements worth serious attention.

Measure both no-load and load losses. No-load loss remains when the transformer is energized. Load loss rises with current and winding resistance. A 500 kVA transformer delivering 400 kW, with 0.7 kW no-load loss and 5.5 kW load loss, reaches about 98.5% efficiency. Use the same loading point during comparisons. Otherwise, the numbers become misleading. Very misleading.

Voltage regulation, temperature rise, power factor, and harmonic distortion deserve equal attention. IEC 60076-1 and IEEE C57.12.90 provide recognized testing principles and measurement conditions. In practice, thermal images can expose a loose connection that electrical readings miss. Check oil or winding temperature after stabilization, not immediately after energizing. Measure twice.

The International Energy Agency’s Electricity Grids and Secure Energy Transitions report states that annual grid investment must rise beyond 600 billion dollars by 2030. Efficient transformers can reduce operating losses across that expanding infrastructure. Yet a perfect factory result may not survive dust, imbalance, poor ventilation, or partial loading. That uncomfortable gap needs routine field testing.

Preparing the Transformer and Test Equipment for Accurate Measurements

Accurate power transformer efficiency testing starts before the instrument is switched on. Review the transformer nameplate, wiring diagram, tap position, and previous test records. Confirm that the unit is isolated, discharged, locked out, and properly grounded under site procedures. Safety cannot be treated as paperwork.

Allow the transformer to reach a stable temperature. Record ambient temperature, winding temperature, oil temperature, humidity, and test time. Temperature changes can distort winding resistance and loss measurements. IEC 60076-1 and IEEE C57.12.90 both emphasize controlled conditions and documented corrections. Use calibrated meters, current sources, and power analyzers with valid certificates. Inspect test leads for damaged insulation, clean their contacts, and keep them away from energized circuits. Small details matter.

Prepare the tap changer carefully. A wrong tap position can make a healthy transformer appear inefficient. Verify phase connections and polarity before applying voltage. Perform a zero check, then compare readings with factory data and earlier field results. The U.S. Department of Energy’s 2024 distribution transformer analysis projects about 3.6 quadrillion British thermal units of energy savings over 30 years from stronger efficiency standards. Reliable measurements support that goal by exposing unnecessary losses. Yet field work is rarely perfect. I have seen stable readings change after a loose connection was corrected. That is worth remembering. Repeat doubtful measurements, document every adjustment, and resist the temptation to accept the first clean-looking result.

Measuring No-Load Losses and Excitation Performance

7 Tips for Power Transformer Efficiency Testing

Measuring No-Load Losses and Excitation Performance

Accurate no-load testing begins with a stable test area and a fully isolated secondary winding. Apply the rated frequency and voltage gradually. Never rush this step. Use calibrated voltage, current, and power instruments with suitable accuracy. Record winding temperature, ambient temperature, tap position, and supply frequency. These details explain many unexpected results later.

Keep the applied waveform as close to a clean sine wave as possible. Harmonics can increase excitation current and distort the loss reading. Allow the transformer to stabilize before recording values. Measure core loss in watts, then note excitation current separately. Check the connections twice. A loose lead can imitate poor transformer performance. Compare readings with approved factory data and previous maintenance records. Correct the measured loss for voltage and temperature when the applicable test standard requires it.

Watch the wattmeter resolution at low power levels. Small errors matter. Repeat the measurement at several voltage points, such as 90%, 100%, and 110% of rated voltage, when permitted. The resulting curve can reveal abnormal saturation or core damage. Keep personnel clear of energized parts and use verified grounding procedures. One practical lesson is easy to miss: a clean-looking test sheet does not guarantee a good test. Instrument drift, residual magnetism, or an unsuitable frequency may still affect the result. Document every deviation, even minor ones.

7 Tips for Power Transformer Efficiency Testing? - Measuring No-Load Losses and Excitation Performance

No. Testing Tip Recommended Test Condition Measured Data Calculation or Check Example Result Efficiency Impact
1 Stabilize the test supply Apply rated frequency, normally 50 or 60 Hz, and maintain voltage within ±0.5% of the target value. Target voltage: 10,000 V
Measured voltage: 9,995 V
Frequency: 50.00 Hz
Voltage deviation = (9,995 − 10,000) / 10,000 × 100 −0.05%
Within recommended control range
Stable voltage and frequency reduce measurement uncertainty and prevent misleading core-loss results.
2 Measure no-load loss at rated voltage Keep the secondary winding open and energize one winding at rated voltage and rated frequency. Applied voltage: 10.00 kV
Input power: 1.82 kW
Test frequency: 50 Hz
No-load loss is the wattmeter reading after the voltage and instruments have stabilized. 1.82 kW
Recorded core loss
No-load loss occurs continuously while the transformer is energized, so it directly affects annual energy consumption.
3 Record excitation current Measure current at rated voltage with the output winding open; use true-RMS instruments capable of handling distorted waveforms. Rated-side current: 2.40 A
Excitation current: 0.048 A
Excitation-current percentage = 0.048 / 2.40 × 100 2.00%
Of rated current
A lower, stable excitation current generally indicates effective magnetic-circuit performance; comparison should use the same test conditions.
4 Correct results to the reference temperature Measure winding and ambient temperature and report the core-loss result at the specified reference temperature when required by the test procedure. Measured no-load loss: 1.82 kW
Core temperature: 31°C
Reference temperature: 20°C
Apply the correction method required by the applicable standard or project specification; do not use load-loss corrections for core loss. 1.82 kW reported
Temperature documented
Consistent temperature reporting improves comparisons between factory, commissioning, and maintenance tests.
5 Separate active power from reactive current Use a power analyzer that measures watts, voltage, current, and power factor with suitable accuracy at low power factor. Voltage: 10.00 kV
Current: 0.048 A
Power factor: 0.38
Active power: 1.82 kW
Three-phase apparent power, where applicable: S = √3 × VLL × I
Active power: P = S × power factor
1.82 kW active loss
Reactive component excluded
Separating watts from vars prevents excitation current from being incorrectly reported as energy loss.
6 Check waveform distortion and harmonics Capture voltage and current waveforms and review total harmonic distortion, especially when the test source is a power electronic converter. Voltage THD: 1.4%
Current THD: 18.6%
Voltage crest factor: 1.42
Compare waveform quality with the instrument and test-procedure limits; document any filtering or correction applied. Voltage waveform acceptable
Current distortion documented
Harmonics can influence core excitation and instrument readings, making waveform documentation essential for repeatable testing.
7 Compare results with limits and historical data Compare the measured value with the guaranteed loss, applicable standard, design baseline, and previous results under equivalent conditions. Measured no-load loss: 1.82 kW
Specified maximum: 1.90 kW
Previous comparable result: 1.80 kW
Margin to limit = (1.90 − 1.82) / 1.90 × 100
Change from previous test = (1.82 − 1.80) / 1.80 × 100
4.21% below limit
1.11% increase from previous test
Trend analysis can identify abnormal core, connection, or measurement changes before they affect operating efficiency.
Key formulas: No-load loss is the measured active input power with the transformer output open. Excitation-current percentage = excitation current ÷ rated current × 100. Annual no-load energy estimate = no-load loss × energized operating hours.

Evaluating Load Losses, Impedance, and Operating Efficiency

Power Transformer Efficiency Testing: 7 Tips

Evaluate real performance, not only nameplate promises. Start with a controlled no-load test, then measure core losses at rated voltage and frequency. Record winding temperature carefully. Small temperature errors can distort resistance and load-loss results. IEC 60076-1 provides the framework for transformer ratings, losses, and temperature conditions. Use calibrated power analyzers and verify their accuracy before testing.

Measure load losses at several current levels, such as 25%, 50%, 75%, and 100%. Plot the results against current squared. The curve should remain technically credible. Check impedance voltage at rated current, because excessive impedance may increase losses and reduce voltage regulation.

Inspect phase balance, tap position, oil temperature, and connection torque. IEEE C57.12.90 offers widely used test methods for these measurements. Do not ignore harmonics; distorted current can create extra heating that a basic test may miss.

Calculate operating efficiency using actual load profiles, not only peak efficiency. A lightly loaded transformer may show low daily efficiency despite excellent full-load results. The U.S. Department of Energy’s 2024 distribution-transformer rule estimates 3.6 quadrillion British thermal units in cumulative energy savings over 30 years. That figure shows why small loss reductions matter. Still, field data can challenge laboratory assumptions. Recheck readings after stabilization, compare them with factory records, and document every correction. Five minutes of unstable temperature can mislead an entire report.

Interpreting Test Results and Identifying Efficiency Improvements

7 Tips for Power Transformer Efficiency Testing: Interpreting Test Results and Identifying Efficiency Improvements

Efficiency testing should begin with clean conditions. Record winding temperature, tap position, applied voltage, frequency, and load current. Small errors matter. IEC 60076-1 requires temperature correction when comparing resistance and loss results. Separate no-load loss from load loss; a transformer may perform well at 40% load but waste energy continuously through core losses. Check the power factor too. A low value can indicate poor measurement setup, harmonics, or unexpected reactive demand.

Compare measured results with the factory report and the applicable IEEE or IEC test method. Do not treat one impressive efficiency percentage as proof of health. The U.S. Department of Energy’s 2024 technical support document estimates that stronger distribution-transformer standards could save 3.6 quadrillion British thermal units over 30 years. That figure shows why small loss reductions deserve attention. Inspect the loss curve at 25%, 50%, 75%, and 100% load. Then calculate annual energy cost using the site’s real operating profile, not the nameplate rating alone.

Look for practical improvements: correct overloaded phases, reduce unnecessary energization, improve cooling airflow, tighten connections, and review tap settings. Infrared images can reveal hot joints, but they cannot explain every efficiency loss. Repeat tests after maintenance. Question the result. Field conditions, aging insulation, harmonics, and instrument accuracy can distort conclusions. A useful report links each abnormal value to a likely cause, a proposed action, and a measured follow-up result.

FAQS

What should be recorded before a no-load efficiency test?

Record winding temperature, room temperature, tap position, voltage, frequency, and instrument details. Small details matter. These records help explain unusual readings later.

Why should voltage and frequency be applied gradually?

Gradual application reduces testing shocks and helps the transformer reach stable conditions. Do not rush. Use the rated frequency and voltage unless the procedure permits other points.

How can waveform quality affect no-load loss results?

A clean sine wave usually produces more reliable readings. Harmonics may increase excitation current and distort core-loss measurements. The waveform can look acceptable while still causing errors.

Why should the secondary winding be fully isolated?

An isolated secondary prevents unintended current paths during testing. It also makes the no-load result easier to interpret. Verify the connections twice.

How should low power readings be checked?

Use calibrated instruments with suitable resolution and accuracy. Small wattmeter errors can become significant at low power. Repeat the measurement at several permitted voltage points.

What can a voltage-loss curve reveal?

Measurements near 90%, 100%, and 110% rated voltage can show abnormal saturation. An unusual curve may suggest core damage or residual magnetism. One curve is not proof.

How should measured efficiency results be interpreted?

Separate no-load loss from load loss. Review performance at 25%, 50%, 75%, and 100% load. A transformer may perform well at medium load but waste energy continuously through core losses.

What practical actions may improve transformer efficiency?

Correct overloaded phases, improve cooling airflow, tighten connections, and review tap settings. Reduce unnecessary energization when operating conditions allow. After maintenance, repeat the test. Otherwise, the improvement remains only a guess.

Why should test results be compared with operating records?

Compare results with factory data, earlier maintenance records, and the actual load profile. Do not rely on the nameplate rating alone. A polished report can still hide instrument drift, harmonics, or unsuitable frequency.

Conclusion

This guide presents seven practical Power Transformer Efficiency Testing Methods for assessing transformer performance accurately and consistently. It begins by explaining essential indicators such as efficiency, no-load loss, load loss, power factor, impedance, and temperature behavior. Before testing, technicians should confirm the transformer’s condition, review its rated specifications, and prepare calibrated instruments, safe connections, and suitable environmental conditions. The process then covers measuring excitation current and core losses under no-load conditions, followed by evaluating winding losses, impedance, voltage regulation, and operating efficiency at different load levels.

The guide also explains how to compare test results with expected values and identify possible causes of excessive losses, including poor connections, winding problems, core deterioration, overheating, or inaccurate measurement procedures. By recording results systematically and examining trends over time, users can detect declining performance early, improve maintenance planning, reduce energy waste, and support safer, more reliable transformer operation.
