In the realm of power systems, the significance of comprehensive testing for transformers cannot be overstated. As noted by Dr. Emily Carter, a renowned expert in electrical engineering, "Effective testing is not just a requirement; it’s a safeguard against failure." Her insights underline the essence of the "Power Transformer Testing Methods Guide," a crucial resource for ensuring reliability in electrical infrastructure.

Understanding various testing methods is vital. Each method serves a unique purpose in identifying potential issues within transformers. From insulation resistance testing to power factor analysis, detailed protocols are essential. Dr. Carter emphasizes that “knowing when to test is as critical as knowing how.” This perspective highlights the need for professionals to remain vigilant in their monitoring and maintenance practices.

While the guide provides extensive information, not all methods yield perfect results. Some tests may reveal inconsistencies that require further investigation. This aspect invites reflection on the importance of adapting and updating testing approaches. Relying solely on outdated techniques can lead to oversight. Through continuous learning and improvement, the reliability and efficiency of transformers can ultimately be enhanced.

Overview of Power Transformer Testing Importance and Standards

Power transformer testing is crucial for ensuring reliability and efficiency in electrical systems. According to the IEEE Standards Association, testing should align with specific criteria to reduce risks. Regular assessments can enhance transformer lifespan, prevent failures, and maintain safety standards. In fact, a proper testing regimen can improve operational performance by 15-20%, as highlighted in recent industry reports.

It's invaluable to adopt methods such as insulation resistance tests, power factor testing, and transformer turns ratio (TTR) assessments. These techniques help identify deterioration and potential faults early. For instance, a high insulation resistance can indicate good insulation health, while a low power factor may signify an insulation issue. Always carry out these tests under controlled conditions for accurate results.

Tips for effective testing include maintaining a consistent schedule. Conduct tests under the same environmental conditions for better comparison. Document all findings meticulously, noting any deviations. This practice provides insights into performance trends and facilitates timely maintenance. Engage experienced professionals for testing to ensure compliance with industry standards and enhance reliability.

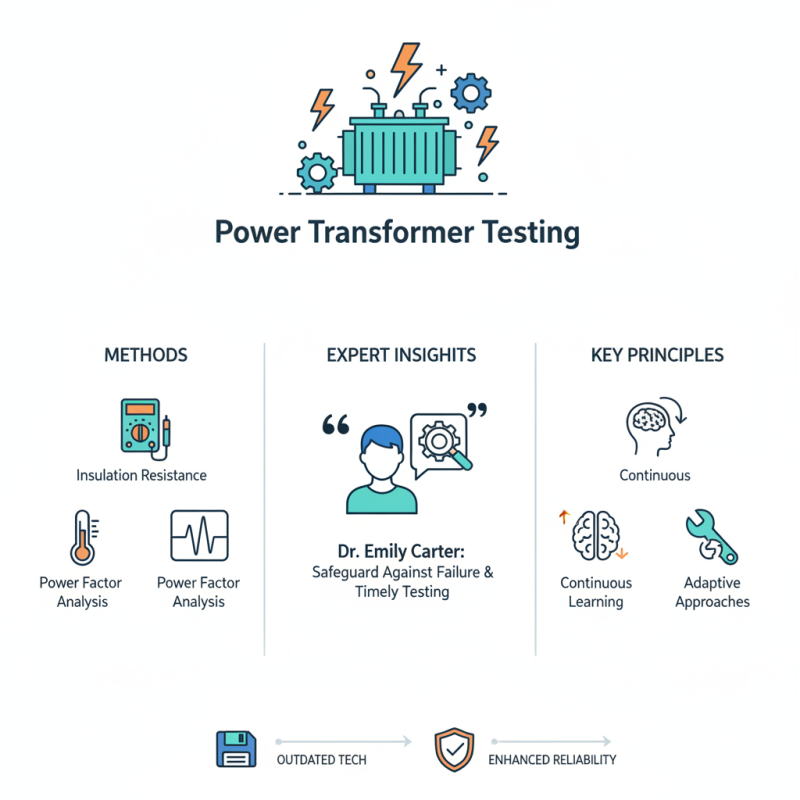

Ultimate Guide to Power Transformer Testing Methods Tips

Common Types of Power Transformer Testing Methods Explained

Power transformer testing methods ensure the reliability and efficiency of electrical systems. Regular testing is crucial for identifying potential issues before failures occur. Common types of testing methods include insulation resistance testing, turns ratio testing, and sweep frequency response analysis.

Insulation resistance testing measures the integrity of insulation within the transformer. It is vital for evaluating potential breakdown risks. According to the IEEE standards, a minimum insulation resistance of 1 MΩ per kV is recommended. This helps prevent unforeseen outages and costly repairs.

Turns ratio testing examines the transformer’s winding condition and identifies mismatches. The ratio should closely align with design specifications. Discrepancies may indicate winding damage. Additionally, sweep frequency response analysis provides insights into internal configurations. It can highlight mechanical issues like winding movement or shorted turns. While these methods are reliable, they require careful interpretation to avoid misdiagnosis. Understanding each testing method's limitations is essential for effective power transformer maintenance.

Step-by-Step Procedure for Assessing Transformer Insulation Resistance

Assessing transformer insulation resistance is crucial for ensuring reliability. This method identifies weaknesses in insulation. Insulation failures can lead to catastrophic failures. According to industry studies, up to 80% of transformer issues arise from insulation defects.

Begin the insulation resistance testing by disconnecting the transformer from the system. This step is vital to prevent damage. Use a megohmmeter for precise measurements. A minimum insulation resistance of 1 megohm is often recommended. However, values of 100 megohms or higher signify good health. If measurements are low, further investigation is necessary.

Conduct the test at various temperatures. Insulation resistance can fluctuate with temperature changes. A standard rule is to assess readings at 20°C. Be aware that humidity also affects readings. If the environment is too damp, results can give false lows. This testing process is not infallible. It requires regular review and adaptation based on conditions. Proper documentation and trend analysis over time can reveal insulation degradation patterns.

Analyzing Transformer Performance Through Power Factor Testing

Power factor testing is a crucial method for analyzing transformer performance. It provides insights into the efficiency and condition of a transformer. By measuring the power factor, engineers can identify issues like insulation deterioration or contamination. This testing can reveal hidden problems that may not be evident during routine inspections.

The process involves applying a voltage to the transformer and measuring the resultant current. A low power factor can indicate problems such as high losses or poor insulating material. This condition can lead to higher operational costs and reduced reliability. When results are analyzed, discrepancies often appear. These require further investigation and may demand additional testing.

Regular power factor testing enhances transformer longevity. It serves as a preventive measure, helping to avoid unplanned outages. However, misunderstandings in interpreting results can arise. Not all low power factor readings signify immediate issues; the context is key. An in-depth analysis is often necessary for accurate assessment. Understanding this complexity is essential for maintenance professionals.

Best Practices and Tips for Effective Transformer Testing and Maintenance

Effective transformer testing and maintenance are crucial for the reliability of electrical systems. According to a report from the International Electrotechnical Commission, improper maintenance accounts for approximately 25% of transformer failures. Regular testing ensures that transformers operate efficiently, improving their lifespan and performance.

One best practice involves conducting insulation resistance tests. This can reveal potential issues before they escalate. Using a megohmmeter to measure the resistance can help identify moisture ingress or deteriorating insulation. Industry standards suggest a minimum insulation resistance of 1 MΩ per kV of operating voltage. It's vital to monitor changes over time. A sudden drop in resistance may indicate an urgent need for servicing.

[Image] Temperature monitoring is another key aspect of transformer maintenance. The IEEE states that operating temperatures above 65°C can significantly shorten a transformer’s life. Regular thermal imaging can help identify hot spots that signal problems. This technique has proven effective in preventing unexpected failures. However, not all thermographic inspections uncover issues, raising questions about their reliability in all situations. Adjustments to inspection frequency or methodology could yield better outcomes.

FAQS

Conclusion

The "Power Transformer Testing Methods Guide" provides essential insights into the testing and maintenance of power transformers, emphasizing the importance of adhering to industry standards. It outlines various testing methods, including insulation resistance assessments and power factor testing, which are crucial for evaluating transformer performance and reliability.

Additionally, the guide presents a step-by-step procedure for measuring insulation resistance, ensuring that transformers are operating efficiently and safely. Best practices for testing and maintenance are also highlighted, enabling professionals to implement effective strategies that enhance transformer longevity and performance. This comprehensive approach ensures that power transformers can reliably meet the demands of modern electrical systems.
