A power transformer can operate quietly for decades, yet one missed warning may trigger a costly outage. That risk explains why a Power Transformer Maintenance Planning Guide matters. It converts scattered inspection notes into a practical maintenance strategy. The plan connects operating hours, loading patterns, oil condition, thermal stress, and past repairs.
Martin J. Heathcote, a recognized transformer specialist and author of The J&P Transformer Book, wrote, “The life of a transformer depends largely on the care it receives.” His observation remains relevant in modern substations. A technician checking dissolved gas analysis may notice rising acetylene. Another may find a cracked bushing seal during a close visual inspection. Small details often carry serious meaning.
The guide helps teams schedule oil sampling, infrared scans, bushing tests, tap-changer inspections, and protection checks. It also assigns responsibilities and records evidence. That improves reliability during planned outage windows. It can reduce emergency work, rushed purchases, and uncertain decisions.
But planning is not magic. A perfect schedule cannot predict every internal fault. Data may be incomplete. Budget pressure may delay corrective work. Human judgment still matters. A warning can be overlooked.
That is the uncomfortable part.
A strong Power Transformer Maintenance Planning Guide therefore supports disciplined thinking, not automatic answers. It encourages engineers to compare test results, question unusual trends, and document every decision. When temperatures rise near a transformer’s top-oil limit, the response should be prepared, specific, and traceable. Reliability grows through repeated attention. Not assumptions.

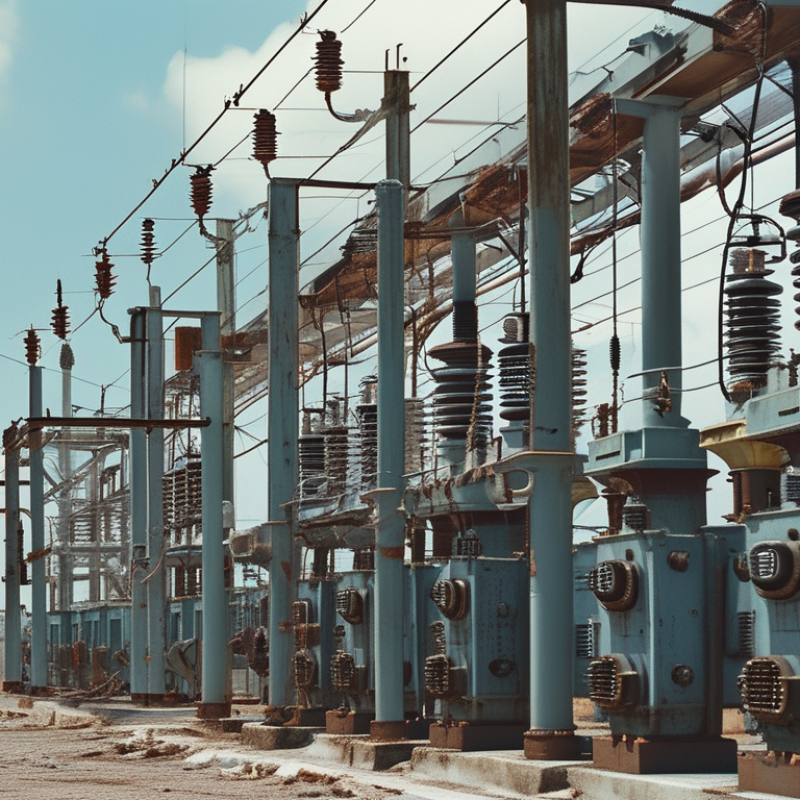

Why Use a Power Transformer Maintenance Planning Guide?
A power transformer maintenance planning guide is a structured document for protecting an asset before faults become outages. It defines inspection intervals, test methods, responsible personnel, and acceptance limits. In practice, technicians may check oil temperature, cooling fans, bushings, grounding connections, and noise during routine rounds. The guide turns these observations into traceable maintenance decisions.
The guide also connects condition data with risk. Dissolved gas analysis can reveal overheating, arcing, or paper insulation deterioration. Moisture tests and insulation power-factor results can expose problems that visual checks miss. IEEE C57.104 provides guidance for interpreting dissolved gases, while IEC 60076-7 addresses loading and insulation ageing. These standards support consistent technical judgment, not automatic answers.
Planning matters because replacement is rarely quick. A U.S. Department of Energy report notes that large power transformers may require extended procurement and delivery periods, sometimes exceeding a year. CIGRE transformer reliability studies also show that failure records involve varied causes, including insulation, bushings, tap changers, and external faults. A guide therefore ranks equipment by age, load, criticality, and condition.
It should remain editable. A fixed schedule can overlook seasonal loading, local pollution, or repeated minor alarms. That is the uncomfortable part. Data may be incomplete. Technicians can also misread a trend. Regular review, independent verification, and clear escalation rules make the planning guide more reliable.
| Maintenance Area | Recommended Task | Typical Planning Interval | Key Data or Measurement | Purpose | Priority | Planning Status |
|---|---|---|---|---|---|---|
| Visual and Physical Inspection | Check for oil leaks, damaged bushings, corrosion, loose connections, unusual noise, abnormal vibration, and restricted ventilation. | Monthly to quarterly, depending on site conditions and transformer criticality | Inspection date, defects identified, ambient temperature, oil level, and corrective-action reference | Detects visible problems before they develop into insulation damage, overheating, or an unplanned outage. | High | Scheduled |
| Transformer Oil Level and Temperature | Verify oil level indicators and review top-oil and winding-temperature readings under normal load. | Monthly and during significant load changes | Oil level, top-oil temperature, winding temperature, load percentage, and alarm history | Helps identify low oil, overloading, cooling-system problems, or abnormal heat generation. | High | Scheduled |
| Insulating Oil Quality | Test oil for dielectric breakdown strength, moisture, acidity, interfacial tension, and visual condition. | Annually or more frequently when test results show deterioration | Breakdown voltage, water content, neutralization number, color, and sludge indicators | Assesses whether the oil can continue providing effective insulation and heat transfer. | High | Planned |
| Dissolved Gas Analysis | Analyze gases dissolved in insulating oil to identify possible thermal faults, electrical discharge, or arcing. | Annually for critical units; after abnormal operation or an alarm | Hydrogen, methane, ethane, ethylene, acetylene, carbon monoxide, carbon dioxide, and gas-generation trend | Provides an early warning of developing internal faults that may not be visible externally. | High | Planned |
| Insulation Resistance | Measure insulation resistance between windings and between windings and ground during an approved outage. | At commissioning, after major work, and periodically according to the maintenance program | Resistance values, test voltage, test duration, temperature, and polarization index | Indicates moisture, contamination, aging, or other conditions affecting the insulation system. | High | Outage Required |
| Winding Resistance | Measure winding resistance and compare phase-to-phase results with historical values and factory data. | After transport, tap-changer work, major repairs, or when fault symptoms occur | Resistance by phase, test temperature, corrected resistance, and phase imbalance | Helps reveal loose connections, damaged conductors, poor contacts, or tap-changer problems. | High | Outage Required |
| Transformer Turns Ratio | Verify the ratio on each tap position and compare measured values with the rated ratio. | At commissioning, after tap-changer maintenance, and when voltage regulation is abnormal | Measured ratio, rated ratio, tap position, phase deviation, and test temperature | Confirms winding integrity and correct operation of the tap-changing mechanism. | High | Outage Required |
| Cooling System | Inspect radiators, fans, pumps, controls, airflow paths, and temperature-based start/stop functions. | Quarterly; before high-load seasons; and after cooling alarms | Fan and pump operating status, coolant temperature, control response, and alarm records | Maintains permissible operating temperature and reduces thermal aging of the insulation. | High | Scheduled |
| Bushings | Inspect porcelain or composite surfaces, connection points, oil levels, and signs of tracking or overheating. | Monthly visual inspection; electrical testing during planned outages | Capacitance, dissipation factor, temperature, leakage signs, and surface condition | Reduces the risk of bushing flashover, insulation failure, and sudden transformer disconnection. | High | Scheduled |
| On-Load Tap Changer | Review operation counts, inspect the drive mechanism, check oil condition, and test electrical and mechanical limits. | According to operation count, manufacturer instructions, and condition-monitoring results | Tap position, operation count, motor current, transition-resistor condition, and contact wear | Prevents voltage-control failures and contact-related faults in frequently operated equipment. | High | Condition Based |
| Protective Devices | Test pressure-relief devices, sudden-pressure relays, Buchholz-type relays, temperature alarms, and trip circuits. | Annually and after any protection operation | Trip response, alarm response, relay settings, control-circuit continuity, and event records | Confirms that abnormal conditions will produce timely alarms or safe isolation. | High | Test Required |
| Grounding and Connections | Inspect grounding conductors, tank bonds, cable terminations, and accessible bolted connections for damage or overheating. | Annually and during planned outages | Ground continuity, connection torque, thermal-image findings, and corrosion condition | Limits touch-voltage hazards and reduces the risk of overheating or fault-current damage. | High | Scheduled |
| Thermal Imaging | Scan bushings, cable terminations, radiators, tap-changer connections, and other accessible energized points. | Annually, preferably under representative load conditions | Temperature difference from comparable phases, load current, ambient temperature, and image reference | Identifies high-resistance connections, uneven loading, and localized overheating without an outage. | Medium | Planned |
| Load and Operating Trend Review | Review loading, voltage, temperature, alarms, trips, power factor, and historical operating events. | Monthly and after abnormal system events | Peak load, average load, overload duration, temperature trend, voltage deviation, and alarm frequency | Supports risk-based scheduling and helps prevent operation beyond thermal or electrical limits. | Medium | Ongoing |
| Maintenance Documentation | Record test results, photographs, defects, parts used, personnel, safety controls, and recommended follow-up actions. | After every inspection, test, repair, or operational event | Asset identifier, work date, test method, results, acceptance criteria, risk rating, and next due date | Creates a traceable history for condition assessment, budgeting, audits, and future maintenance decisions. | Routine | Ongoing |
: It is a structured document for planning inspections, tests, responsibilities, and response actions. It helps detect faults before they become outages. Small clues matter. Typical checks include oil temperature, cooling fans, bushings, grounding, leaks, and unusual noise.
Transformers face continuous electrical, thermal, and mechanical stress. Planned work can reduce emergency repairs and improve shutdown decisions. It also reveals gradual changes. However, even a strong schedule cannot prevent every failure.
Include visual inspections, oil sampling, temperature checks, infrared scans, and electrical testing. Inspect radiators, valves, breathers, cable terminations, and grounding connections. Test alarms, cooling fans, protective relays, and tap-changing equipment. Do not rely on paperwork alone.
Frequency depends on age, load, environment, cooling design, and condition data. A dusty location may require more frequent inspections than a clean indoor room. Seasonal loading can also change the schedule. Calendar dates are not perfect.
Rising winding temperature, cracked insulation, oil stains, corrosion, and unusual noise deserve review. Repeated alarms or hot electrical joints may indicate developing trouble. Sudden oil loss requires immediate escalation under approved procedures. One strange reading may mislead.
Oil testing can measure moisture, oxidation, breakdown strength, and dissolved gases. Dissolved gases may indicate overheating, arcing, or insulation deterioration. Compare new results with historical records. A dirty sample bottle can distort the report.
Record inspection dates, measurements, repairs, alarms, and operating conditions. Trend data is usually more useful than one isolated result. Rank transformers by age, load, criticality, and condition. Data may be incomplete, so independent review helps.
Each task should have an assigned owner, frequency, acceptance limit, and escalation path. The guide should also identify isolation steps and approved testing procedures. Use qualified personnel for inspections and electrical tests. Unclear ownership causes avoidable delays.
Yes. Review it after inspections, failures, major repairs, and significant load changes. Adjust plans for weather, pollution, repeated alarms, and aging equipment. Leave room for judgment. A precise schedule can still hide weak assumptions.
A Power Transformer Maintenance Planning Guide is a structured resource that helps organizations manage inspection, testing, servicing, and documentation throughout a transformer’s operating life. It explains why planned maintenance is essential by identifying potential problems early, reducing unplanned outages, extending equipment service life, and supporting safer working conditions. Rather than relying only on emergency repairs, the guide establishes a consistent approach based on equipment condition, operating environment, age, loading, and historical performance.
The guide should include routine visual inspections, oil condition checks, electrical testing, cooling system reviews, connection assessments, protection system verification, and corrective actions. Maintenance schedules can be organized by daily, monthly, seasonal, annual, and condition-based activities, with priorities assigned according to risk and operational importance. By clarifying responsibilities, timing, records, and follow-up procedures, a well-designed planning guide improves reliability, strengthens safety practices, supports informed decisions, and helps ensure that power transformers continue operating efficiently and predictably.
