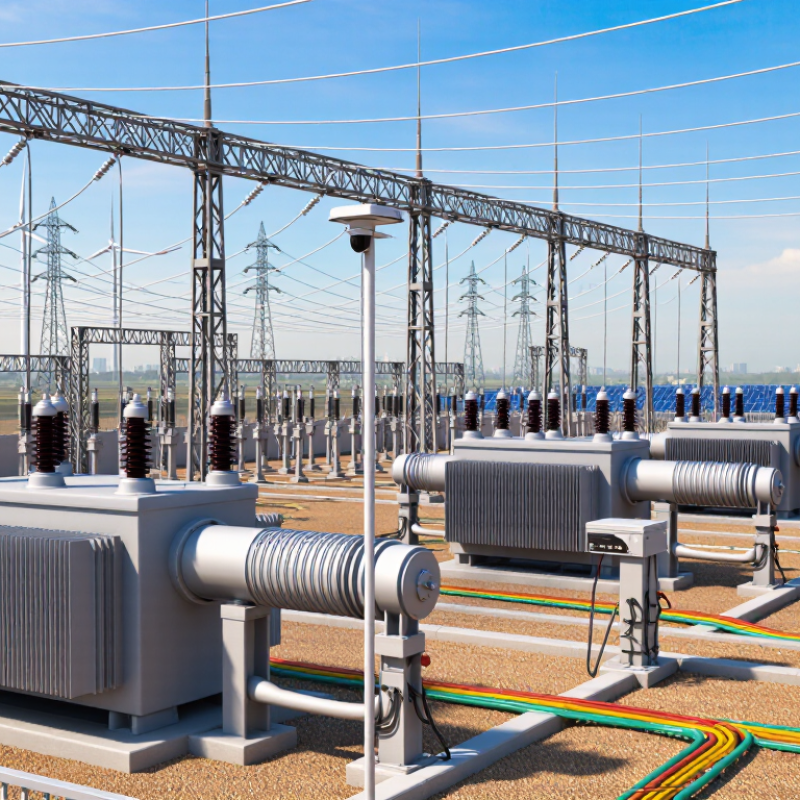

Power Transformer Voltage Control Techniques are becoming essential as electrical networks carry more renewable generation, industrial demand, and unpredictable power flows. The International Energy Agency’s Electricity 2024 report estimates that global grid investment must rise from roughly USD 400 billion annually to more than USD 600 billion by 2030. Voltage stability sits at the center of that challenge. A transformer tap changer, voltage regulator, or coordinated reactive-power device can prevent damaging deviations at substations and customer connections.
Dr. Roger C. Dugan, a recognized power-quality specialist, states, “Voltage problems are often symptoms of deeper system conditions.” This observation remains practical in modern substations. A sudden solar output drop can lower feeder voltage within seconds. A large motor starting nearby can create a visible flicker. Automatic on-load tap changers respond through controlled ratio adjustments, while smart monitoring systems add operating context. However, equipment response is not always smooth. Excessive tap operations can accelerate mechanical wear and increase maintenance costs.
Reports from CIGRE and the U.S. Department of Energy also connect transformer reliability with asset monitoring, insulation condition, and resilient grid planning. These findings support a broader view: voltage control is not only a hardware decision. It involves protection settings, load forecasts, harmonics, communication delays, and operator experience. Some projects still overestimate automation. Human review remains necessary. The following outline examines how Power Transformer Voltage Control Techniques improve voltage quality, reduce operational risk, and support dependable grid expansion. Yet every application deserves local measurements, because a method that performs well in one substation may disappoint in another.
Power transformer voltage control is the process of keeping electrical voltage within a safe, usable range. It supports stable power delivery when loads change during the day. Factories, offices, and homes rarely consume electricity at a constant level. Voltage can fall when motors start or rise when demand suddenly decreases. Proper control reduces equipment stress, improves operating efficiency, and helps protect connected systems.
Engineers commonly adjust voltage through transformer tap settings. An off-circuit tap changer requires the transformer to be disconnected before adjustment. An on-load tap changer can change taps while the transformer remains energized. This method responds to measured voltage and supports continuous service. Control systems may also use voltage sensors, time delays, and limit settings to prevent unnecessary switching. Small details matter. A poorly calibrated sensor can cause unstable corrections.
Reliable voltage control depends on more than a control panel. Technicians should inspect tap-changer contacts, test insulation, and compare readings with recorded load conditions. Field experience often reveals issues that calculations miss, especially during rapid load changes. Harmonics, cable losses, and unbalanced phases can also distort the expected result. No setting is perfect. Operators may need to review performance after seasonal demand changes and revise limits carefully. Conservative settings can protect equipment, but they may allow wider voltage variation than users expect.
Stable voltage protects equipment, production quality, and operating budgets. A 4% drop can dim lighting and reduce motor torque. Excess voltage increases heating and insulation stress. Small errors can become expensive failures.
A 1% voltage imbalance may create a 6–10% current imbalance in motors. This raises winding temperature and can shorten service life. The damage may remain hidden for months. Small imbalance matters.
It changes the transformer turns ratio while power continues flowing. The adjustment raises or lowers secondary voltage. This helps during motor starts, evening demand, or changing renewable output. Mechanical wear still needs inspection.
The regulator compares measured voltage with a target band. It commands a tap increase when voltage falls. It reverses the action when voltage rises. A small deadband prevents constant switching.
Better voltage management can reduce avoidable current and thermal stress. It cannot remove every distribution loss. Even modest improvements may lower heating in cables and transformers. The savings are not always dramatic.
They should measure at transformer terminals and remote equipment terminals. Long cables, uneven loading, and loose connections can create downstream drops. A correct substation reading may hide a poor motor-terminal reading.
Engineers should inspect tap position, contact wear, oil condition, timing, and alarm records. They should compare relay data with oil and winding temperatures. Calibration errors can make a healthy system appear unstable. It is not magic.
Excessive switching may create hunting and accelerate tap-changer wear. Fast response is useful, but constant correction can reduce equipment life. Settings should balance speed, stability, and mechanical stress. The best setting may still need revision.
Power Transformer Voltage Control Techniques are essential for maintaining a reliable and balanced electrical system. They regulate the voltage delivered by a transformer as loads change, helping prevent excessive voltage, insufficient power, and unstable operating conditions. Stable transformer voltage supports the safe and efficient performance of connected equipment, reduces energy losses, and helps maintain consistent power quality across transmission and distribution networks.
Common approaches include adjusting transformer tap settings, using automatic voltage regulators, managing reactive power, and coordinating control devices throughout the power system. These methods continuously respond to changes in demand and system conditions, keeping voltage within an appropriate operating range. Effective voltage control also reduces thermal stress, limits insulation damage, improves transformer efficiency, and supports longer service life. By combining accurate monitoring with suitable regulation methods, operators can improve system performance, enhance operational safety, and reduce the risk of interruptions caused by voltage fluctuations.
